• Lenco 101 Standard Actuator - 24V - 2-1/4" Stroke
1 1

Lenco Marine

Lenco 101 Standard Actuator - 24V - 2-1/4" Stroke

Lenco 101 Standard Actuator - 24V - 2-1/4" Stroke

OM-LENCOMARINE-101STANDARDACT-15061001

$268.27
$420.52 $268.27
Sale
Shipping calculated at checkout.

Low stock: 1 left
Authorized Lenco Marine Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

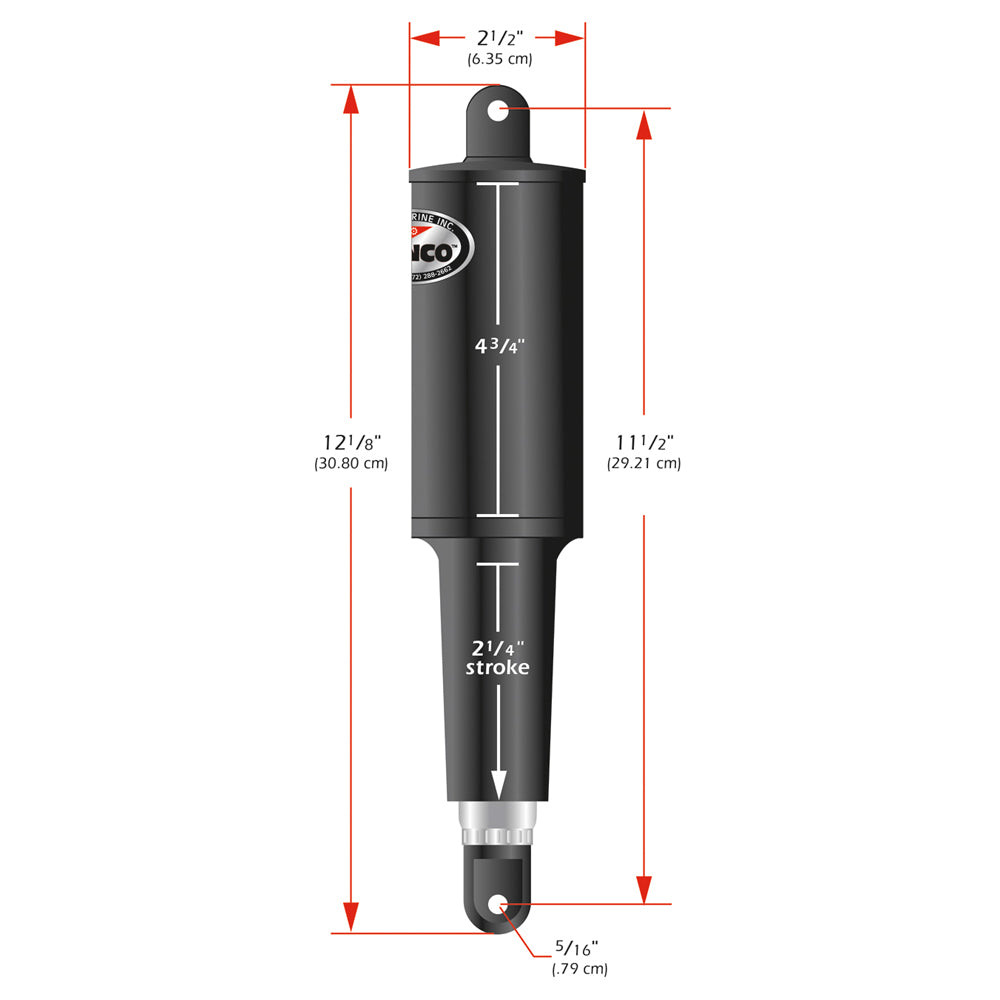

The Lenco Marine 101 Standard Actuator is a 24V electric actuator for compatible Lenco Standard, Edge Mount, and Standard Performance trim tab kits. It is built with a 2-1/4 in stroke, 12.5 in overall length, mounting hardware, and a 6 ft cable.

  • Voltage: 24V
  • Stroke: 2-1/4 in / 2.25 in
  • Overall length: 12.5 in tip to top
  • Compatibility: Used in all Standard, Edge Mount, and Standard Performance kits
  • Material: High impact glass fiber filled, ultraviolet-resistant nylon
  • Tubing: 316 super buff stainless steel
  • Motor capability: Pushes 500 pounds
  • Design: Ballscrew actuator design
  • Connection: Waterproof Plug & Play Deutsch connectors
  • Cable: 6 ft over-molded cable
  • Mounting hardware: 5/16 in mounting hardware
  • Seal features: AXR seal stabilization system, integrated base wiper seal, improved O-ring design, and upper mounting bracket with gland seal
  • Construction details: Stronger top cap and clevis, improved pressure-tight torx screws, molded-in brass thrust bearing, thicker motor housing wall
  • Notice: This product may not be returned to the original point of purchase; contact the manufacturer with issues or concerns

Specifications

BrandLenco Marine
Manufacturer part #15061-001
UPC874847003261
Boxed dimensions14 x 4 x 3 in
Shipping weight4.0 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Quick start guidePDF ↓
