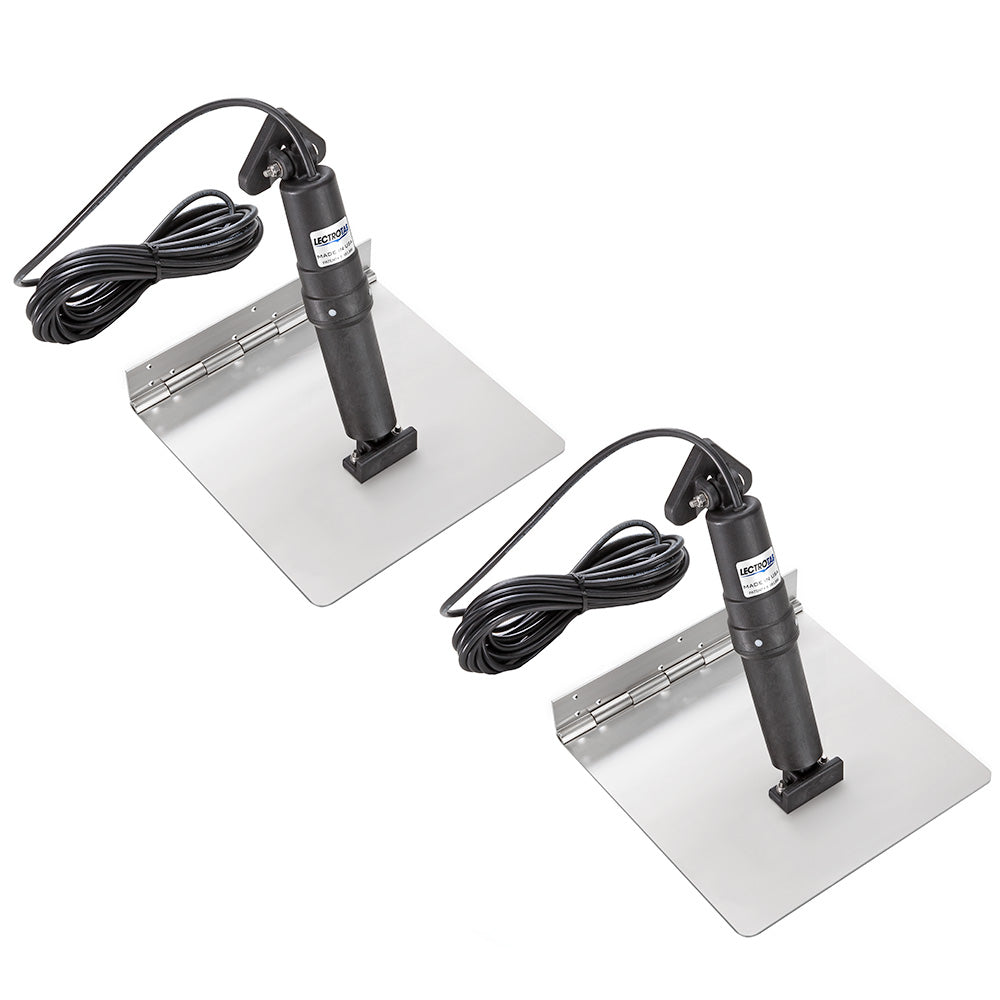

Lectrotab XKA Stainless Steel Trim Tab - 9 x 18

Bring electric trim tab adjustment to a 21–30-foot boat with the Lectrotab XKA 9 x 18 kit. Two stainless steel tabs and quiet actuators provide lift and controlled positioning through a self-contained system that needs no hydraulic oil.

Key features

• The hinge is rolled continuously and secured with a pin, adding strength without welding.
• A built-in brake prevents the tabs from shifting unintentionally during forward travel or backing down.
• Non-hydraulic, maintenance-free actuation avoids hydraulic oil leaks.
• The sealed actuator's non-metallic exterior will not corrode or deteriorate in sunlight or underwater.
• Upper ram seal placement protects the seal from damage associated with fouling or barnacles on the ram.
• No interior components are required, simplifying where the system must be installed.

Specifications

• Brand and model: Lectrotab XKA
• Tab dimensions, L x W: 9 x 18 inches (23 x 46 cm)
• Boat length: 21–30 feet (6.5–9 m)
• Tab material: 12 gauge 304 stainless steel
• Actuator voltage: 12 V DC
• Actuator stroke: 2.25 inches (57 mm)
• Actuator cable length: 23 feet (7 m)
• Actuator vertical height: 11.875 inches (302 mm)
• Actuator load test: 1000 lbs pushing force
• Pressure management: Internal equalization system

Good to know

Supplied with two stainless steel tabs, two actuators fitted with 23-foot (7 m) cables and an instruction manual. The control switch is supplied separately. Actuator mounting incorporates either a standard or low-profile transom bracket.
