• Lectrotab XKA Stainless Steel Trim Tab - 12 x 18
1 1

Lectrotab

Lectrotab XKA Stainless Steel Trim Tab - 12 x 18

Lectrotab XKA Stainless Steel Trim Tab - 12 x 18

OM-LECTROTAB-XKASTAINLESSST-XKA12X18

$697.49
$995.00 $697.49
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Frequently bought together

Total price:

FREE U.S. shipping on every item

Overview

Electro-MechanicalActuator Type
Stainless SteelConstruction

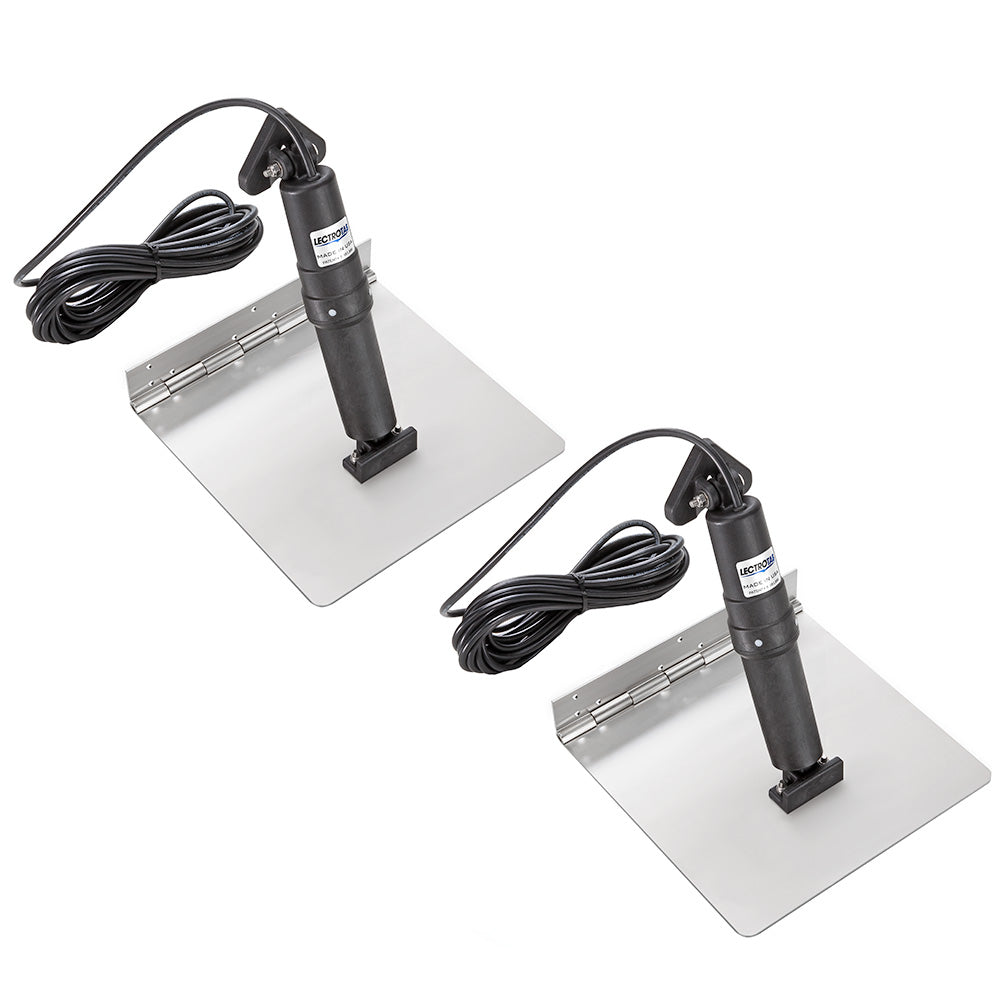

For boats from 20 to 40 feet, the Lectrotab XKA 12 x 18 trim tab kit pairs stainless steel tabs with electric actuators for precise tab positioning. Its self-contained, non-hydraulic mechanism operates quietly and needs no oil, removing the possibility of hydraulic oil leaks.

Key features

  • A rolled hinge secured by a continuous pin strengthens each tab without welded joints.
  • An internal brake holds the tab position while underway or backing down.
  • The upper ram seal sits where ram fouling and barnacle growth cannot damage it.
  • Permanently sealed, non-metallic actuator housings resist corrosion and deterioration from sun or underwater exposure.
  • A maintenance-free actuator design includes internal pressure equalization.
  • Self-contained actuators simplify installation without placing components inside the boat.

Specifications

  • Model: XKA
  • Tab length x width: 12 x 18 inches (30 x 46 cm)
  • Boat length: 20–40 feet (6–12 m)
  • Tab material: 12-gauge 304 stainless steel
  • Actuator supply: 12 V DC
  • Actuator stroke: 2.25 inches (57 mm)
  • Actuator cable length: 23 feet (7 m)
  • Actuator vertical height: 11.875 inches (302 mm)
  • Actuator load test: 1,000 lb pushing force

Good to know

The kit contains two stainless steel tabs, two actuators with 23-foot cables and an instruction manual. The control switch is not included.

Specifications

Actuator TypeElectro-Mechanical
ConstructionStainless Steel
BrandLectrotab
Manufacturer part #XKA12X18
UPC850046155574
Boxed dimensions25 x 16 x 5 in
Shipping weight26.8 lb
