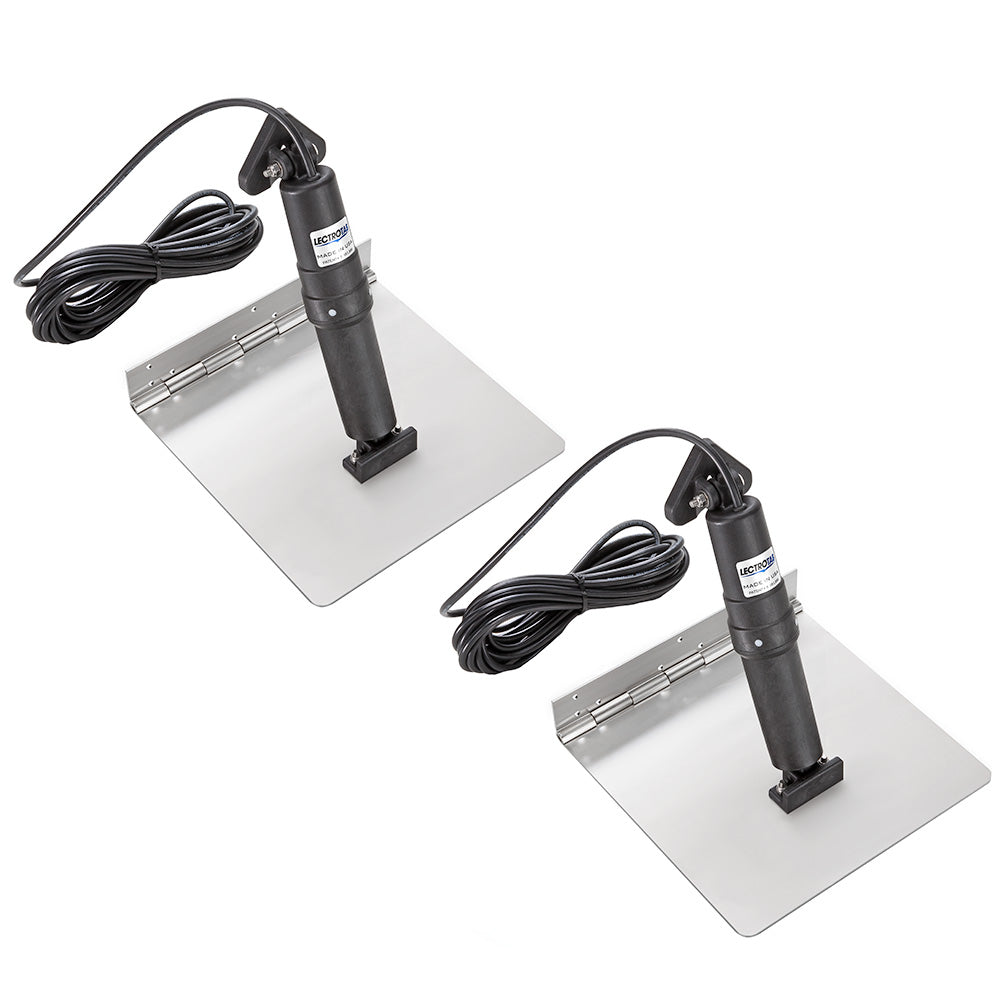

Lectrotab XKA Stainless Steel Trim Tab - 12 x 12

Adjust your boat's trim with the Lectrotab XKA 12 x 12 stainless steel trim tab kit, specified for boats from 18 to 32 feet long. Its quiet, non-hydraulic actuators position the tabs without oil, and the self-contained assemblies require no components inside the boat.

Key features

• A rolled, pinned hinge runs continuously along each tab, adding strength without welded construction.
• Maintenance-free, non-hydraulic actuation eliminates the possibility of hydraulic oil leaks.
• An internal brake holds the tabs against unwanted movement while underway or backing down.
• The upper ram seal sits where ram fouling and barnacle growth cannot damage it.
• Permanently sealed, non-metallic actuator housings resist corrosion and deterioration from sunlight or underwater use.
• Internal pressure equalization is built into the actuator assembly.

Specifications

• Brand and model: Lectrotab XKA
• Tab size, length x width: 12 x 12 inches (30 x 30 cm)
• Boat length: 18–32 feet (5.5–9.5 m)
• Tab material: 12 gauge 304 stainless steel
• Actuator voltage: 12 V DC
• Actuator stroke: 2.25 inches (57 mm)
• Actuator cable length: 23 feet (7 m)
• Actuator vertical height: 11.875 inches (302 mm)
• Actuator load-tested push force: 1000 lb

Good to know

The listed box contents are two stainless steel tabs, two actuators with 23-foot (7 m) cables and an instruction manual. The control switch is not included. The actuator uses either a standard or low-profile transom mounting bracket.
