Lectrotab XKA Aluminum Alloy Trim Tab Kit w/One-Touch Control - 9 x 9

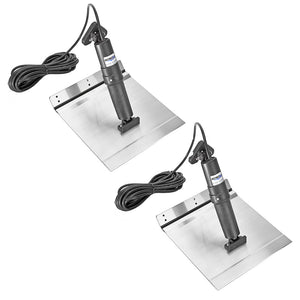

Bring one-touch trim adjustment to your boat with the Lectrotab XKA 9 x 9 kit. Suited to aluminum hulls and boats from 14 to 19 feet, it pairs aluminum alloy tabs with quiet electric actuators to control tab position without a hydraulic system.

Key features

• One-touch leveling and an LED control give you fingertip access to trim adjustments.
• Epoxy-coated tabs resist corrosion for use in marine conditions.
• Polypropylene hinges withstand repeated movement, with testing exceeding 300,000 cycles through a 90-degree bend without failure.
• An internal brake holds the tabs against unwanted movement while underway or backing down.
• Maintenance-free, non-hydraulic actuators eliminate hydraulic oil leaks.
• Permanently sealed, non-metallic actuator housings resist corrosion.

Specifications

• Model: XKA
• Tab dimensions (L x W): 9 x 9 inches (23 x 23 cm)
• Boat length: 14–19 feet (4–6 m)
• Tab material: Marine-grade 6005-T5 aluminum alloy
• Tab strength equivalence: 10-gauge stainless steel
• Hinge material: Polypropylene
• Tab coating: Epoxy
• Actuator voltage: 12 V DC
• Actuator stroke: 2.25 inches (57 mm)
• Actuator cable length: 23 feet (7 m)
• Actuator vertical height: 11.875 inches (302 mm)
• Actuator push-force load test: 1,000 lb
• Rocker switch dimensions (W x H): 3 x 3 inches (77 x 77 mm)
• Rocker switch cutout (H x W): 2.25 x 2.5 inches
• Rocker switch operating voltage: 12 or 24 V

Good to know

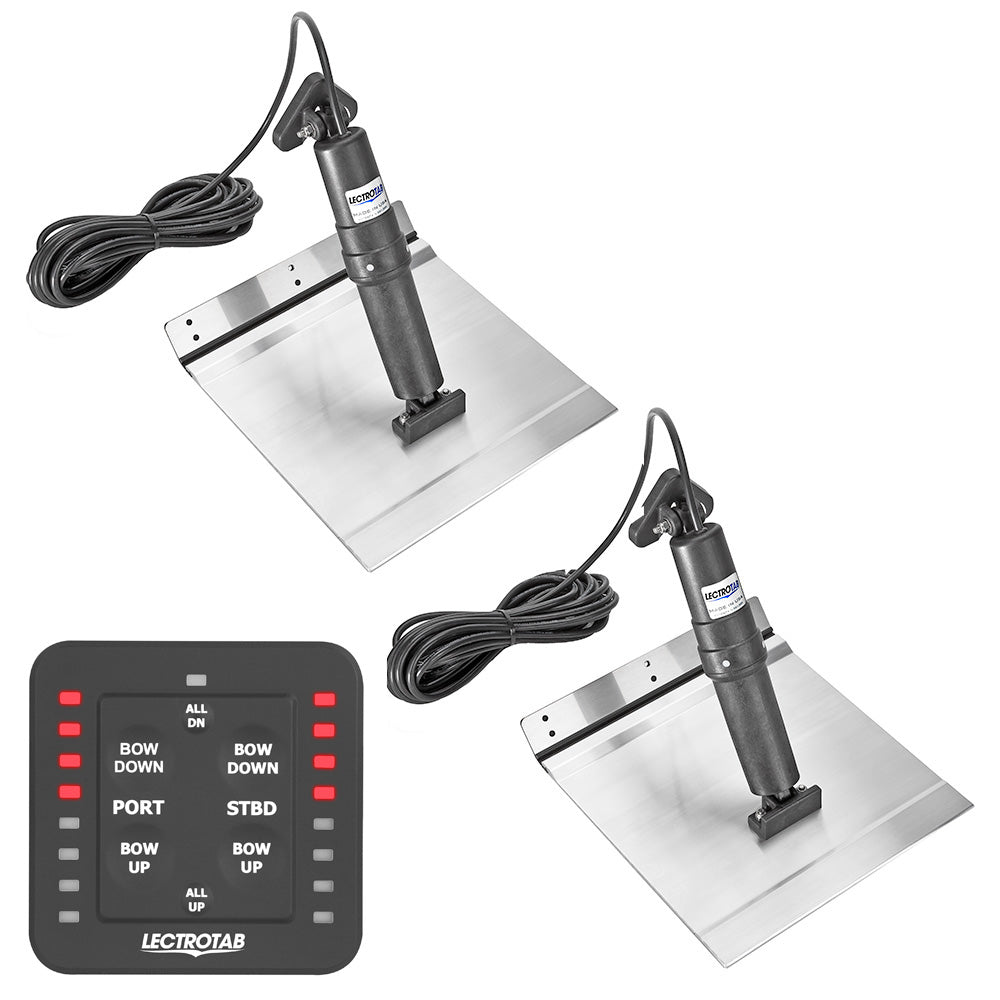

Sold as a kit containing one One-Touch Control, two aluminum alloy tabs, two actuators with 23-foot (7 m) cables, and an instruction manual.
