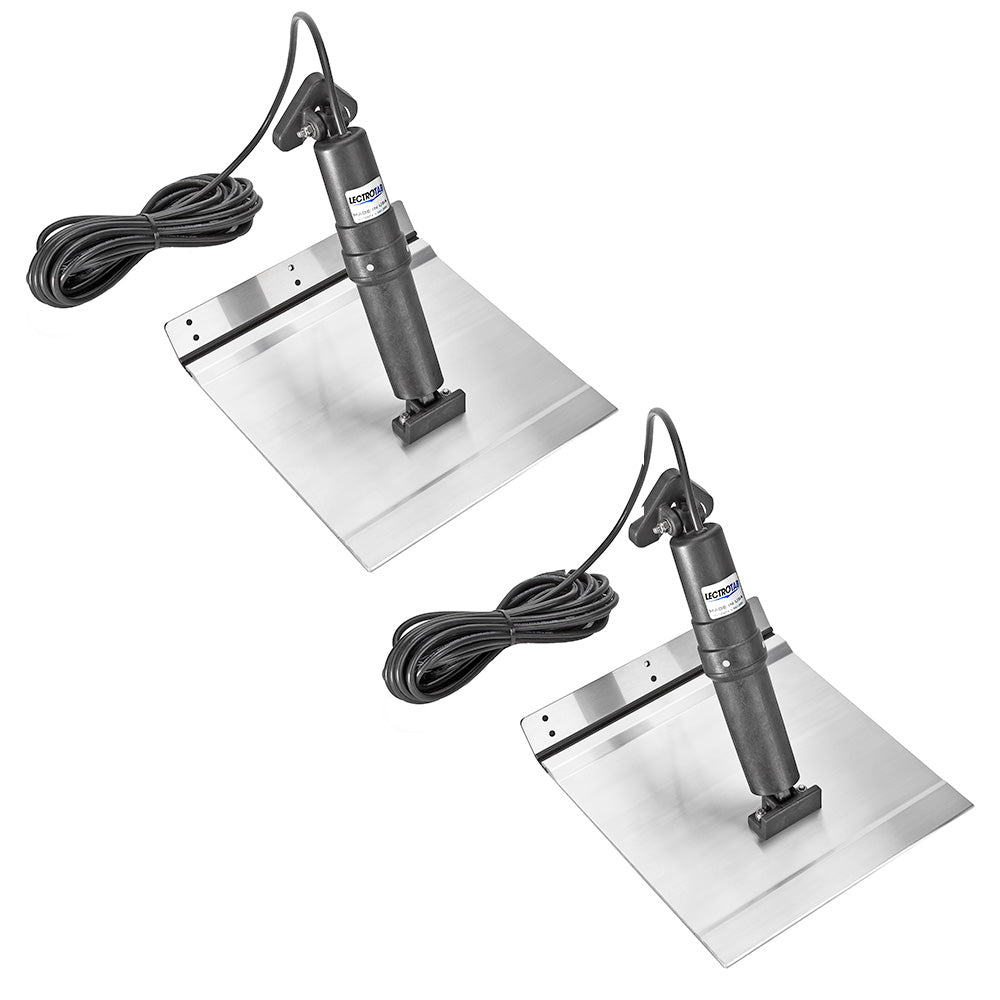

Lectrotab XKA Aluminum Alloy Trim Tab - 12x9

Lectrotab's XKA 12 x 9 trim tab kit offers aluminum-hulled boat owners an aluminum alloy option for controlling trim. The supplied electric actuators position the tabs without hydraulics, and the system requires no components inside the boat.

Key features

• Epoxy-coated aluminum tabs provide corrosion resistance.
• Polypropylene hinges were tested through more than 300,000 cycles at a 90-degree bend without failure.
• Quiet, maintenance-free electric actuation eliminates hydraulic oil from the system.
• Internal brakes hold tab position while underway or backing down.
• Permanently sealed, non-metallic actuator housings resist corrosion and deterioration from sunlight or underwater exposure.
• Upper ram seal placement protects the seal from damage caused by ram fouling or barnacle growth.

Specifications

• Brand: Lectrotab
• Model: XKA
• Tab dimensions (L x W): 12 x 9 inches (30 x 23 cm)
• Boat length: 18–29 feet (5.5–8.5 m)
• Tab material: Marine-grade 6005-T5 aluminum alloy
• Tab coating: Corrosion-resistant epoxy
• Hinge material: Polypropylene
• Tab strength equivalence: 10-gauge stainless steel
• Actuator voltage: 12V DC
• Actuator stroke: 2.25 inches (57 mm)
• Actuator cable length: 23 feet (7 m)
• Actuator vertical height: 11.875 inches (302 mm)
• Actuator load testing: 1,000 pounds of pushing force
• Pressure equalization: Internal system

Good to know

The kit includes two aluminum alloy tabs, two actuators with 23-foot (7 m) cables and an instruction manual. A control switch is not included.
