• Lectrotab SX ProTroller Series Trim Tabs 9.5 X 10 f/17-20' Boats w/80-175 HP
1 1

Lectrotab

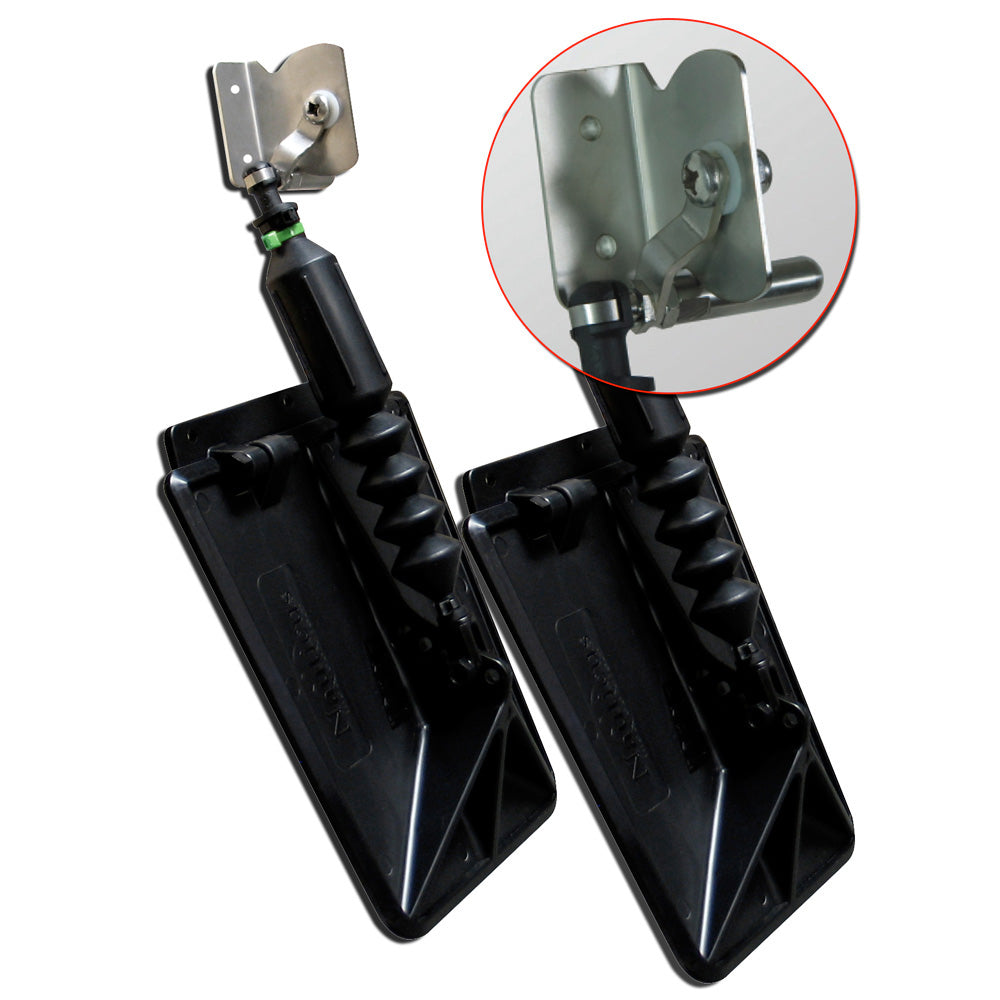

Lectrotab SX ProTroller Series Trim Tabs 9.5 X 10 f/17-20' Boats w/80-175 HP

Lectrotab SX ProTroller Series Trim Tabs 9.5 X 10 f/17-20' Boats w/80-175 HP

OM-LECTROTAB-SXPROTROLLERSE-PT951060

$173.54
$239.00 $173.54
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

HydraulicActuator Type
CompositeConstruction

The Lectrotab SX ProTroller combines automatic trim tab operation with a trolling brake function for 17 to 20 ft. boats with 80 to 175 HP. Moving the lever down drops the plates for equal braking on both sides; moving it up returns the system to running trim tab mode.

  • Tab size: 9.5 in. x 10 in.
  • Boat size: For 17 ft. to 20 ft. boats
  • Horsepower range: 80 to 175 HP
  • Modes: Trolling brakes and automatic trim tabs
  • Trolling brake operation: Lever-down position drops the plates to create equal braking on both sides of the boat
  • Trim tab operation: Lever-up position sets the tabs for running
  • Actuation: Nitrogen gas actuator holds the trim plate down during acceleration
  • Material: Molded composite materials
  • Controls: Automatic underway adjustment with no operator adjustment required
  • Installation tools listed: Drill with 3/16 in. bit and Phillips screwdriver
  • Design detail: Tracking ribs added for handling at higher speeds

Specifications

Actuator TypeHydraulic
ConstructionComposite
BrandLectrotab
Manufacturer part #PT9510-60
UPC698690951605
Boxed dimensions13 x 12 x 5 in
Shipping weight4.05 lb
Country of originUNITED STATES
