• Lectrotab Standard Trim Tab Actuator - 12V - 28' Cable
1 1

Lectrotab

Lectrotab Standard Trim Tab Actuator - 12V - 28' Cable

Lectrotab Standard Trim Tab Actuator - 12V - 28' Cable

OM-LECTROTAB-STANDARDTRIMTA-ABK24

$213.38
$275.00 $213.38
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Lectrotab Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

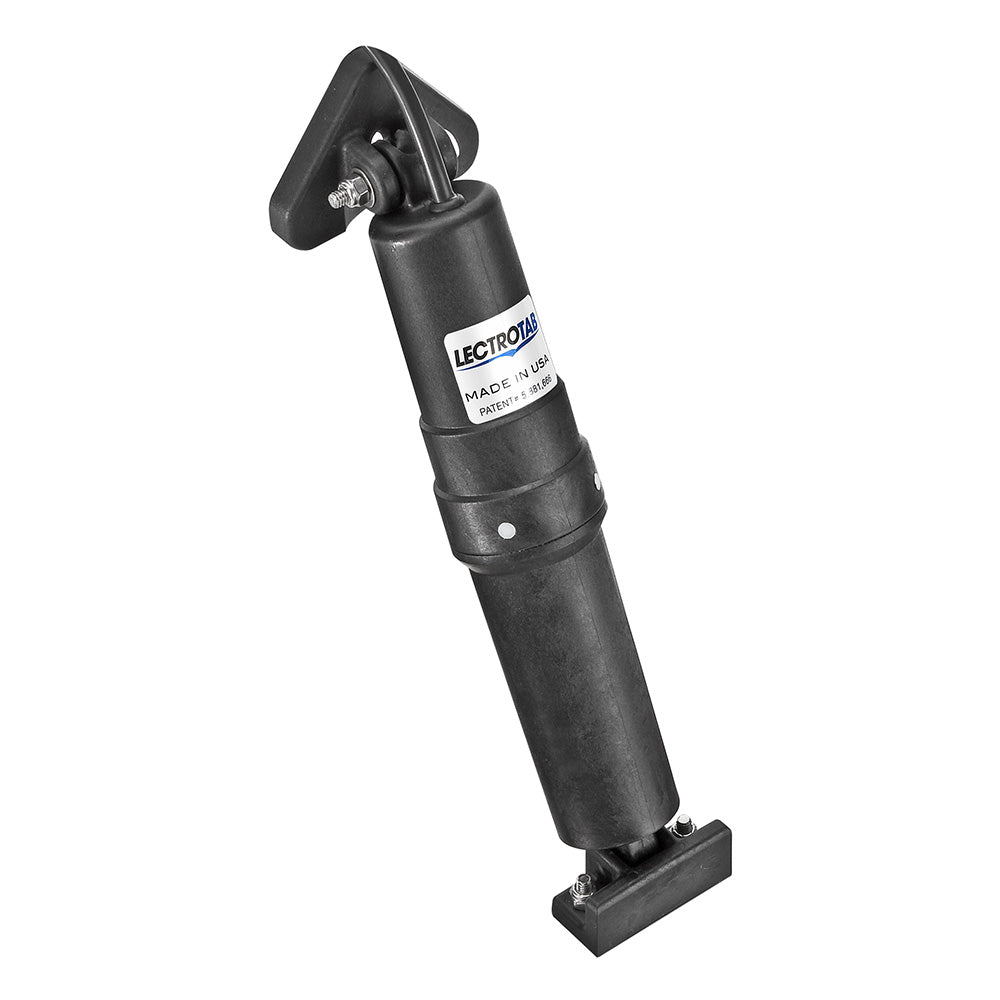

The Lectrotab Standard Trim Tab Actuator is a 12VDC electromechanical actuator with a 28-foot cable for trim tab systems. It is self-contained in a permanently sealed, non-metallic housing, so no hydraulic oil or inside-the-boat components are required.

  • Brand: Lectrotab
  • Product type: Standard trim tab actuator
  • Model: A-BK-24
  • DC voltage: 12VDC
  • Cable length: 28' / 8.5m
  • Stroke length: 2.25" / 57mm
  • Stroke speed: 8 sec
  • Distance from bolt to pin: 11.5" / 292mm
  • Vertical height: 11.875" / 302mm typical installation fully retracted
  • Upper mounting bracket: Standard
  • Lower mounting bracket: Standard
  • Use with tabs: All tabs
  • Housing: Non-metallic external structure
  • Features: Internal pressure equalization system, internal brake system, quiet operation, and protected upper ram seal location
  • Load testing: Fully load tested to push 1000 lbs of force
  • Sold as: Individual

Specifications

BrandLectrotab
Manufacturer part #A-BK-24
UPC850046155154
Boxed dimensions16 x 5 x 5 in
Shipping weight4.0 lb
