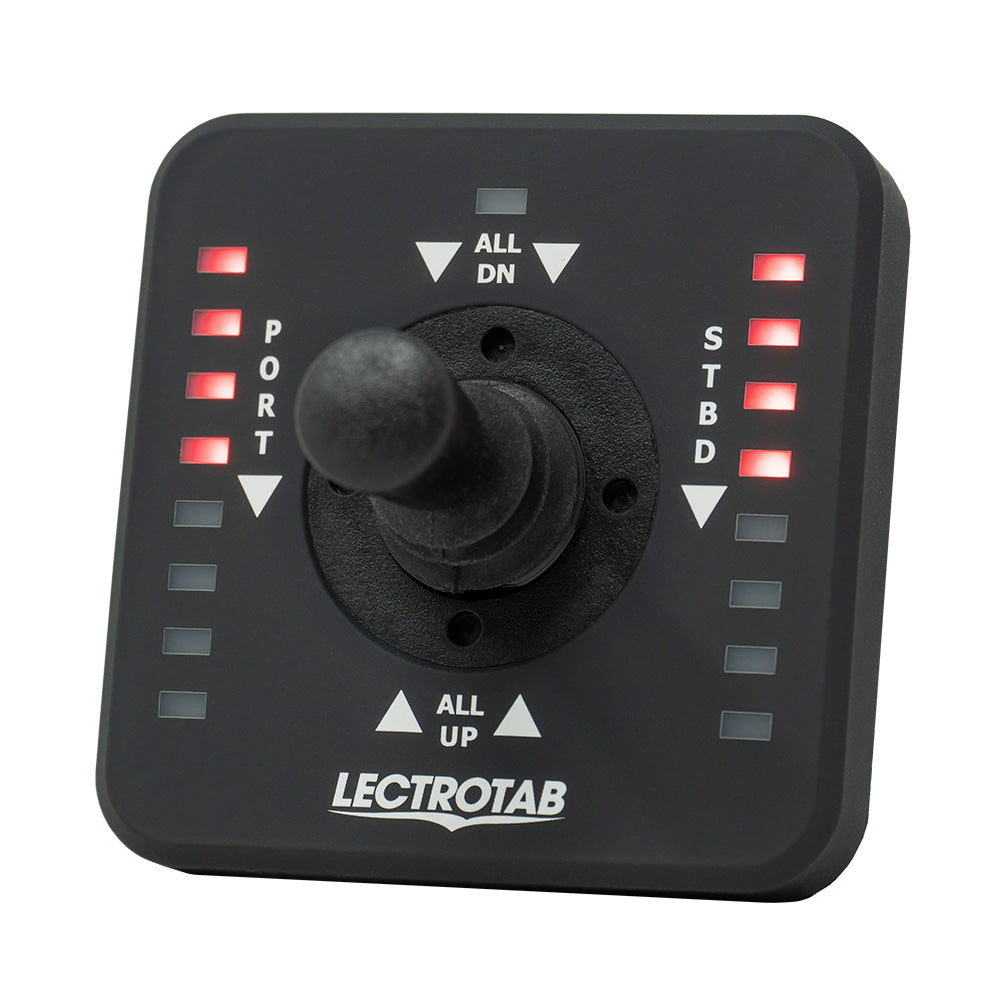

Lectrotab Joystick LED Trim Tab Control

Adjust your boat's trim tabs from one joystick with the Lectrotab Joystick LED Trim Tab Control. LED indicators show the position of each tab, giving the operator a clear reference while making adjustments.

Key features

• A single joystick motion can raise or lower both tabs together.
• Position lights automatically adjust brightness for sunlight or darkness.
• Switching off the key or accessory switch triggers tab retraction and calibration.
• The control recalls the previous tab position when the ignition is switched off and back on.
• A sealed, waterproof housing withstands sunlight exposure.
• No external power module is needed, and the control supports upgrades from other Lectrotab controls.

Specifications

• Display color: Black
• Control system: Microprocessor-based
• Supply voltage: 12 or 24 VDC
• Stations supported: Single or dual
• Actuators supported: 1 or 2 per tab
• Overall width: 3.0 inches / 77 mm
• Overall height: 3.0 inches / 77 mm
• Thickness: 2.0 inches / 50 mm
• Mounting cutout diameter: 2.625 inches / 66.7 mm
• Power input fuse, 1 actuator per tab at 12 VDC: 15 or 20 amps
• Power input fuse, 1 actuator per tab at 24 VDC: 10 amps
• Auxiliary fuse: 1 to 2 amps

Good to know

NMEA 2000 connectivity requires the JLC-NMEA adapter. For a second station, add another JLC-11 and a JR-* cable, sold separately. The auxiliary connection must be connected.
