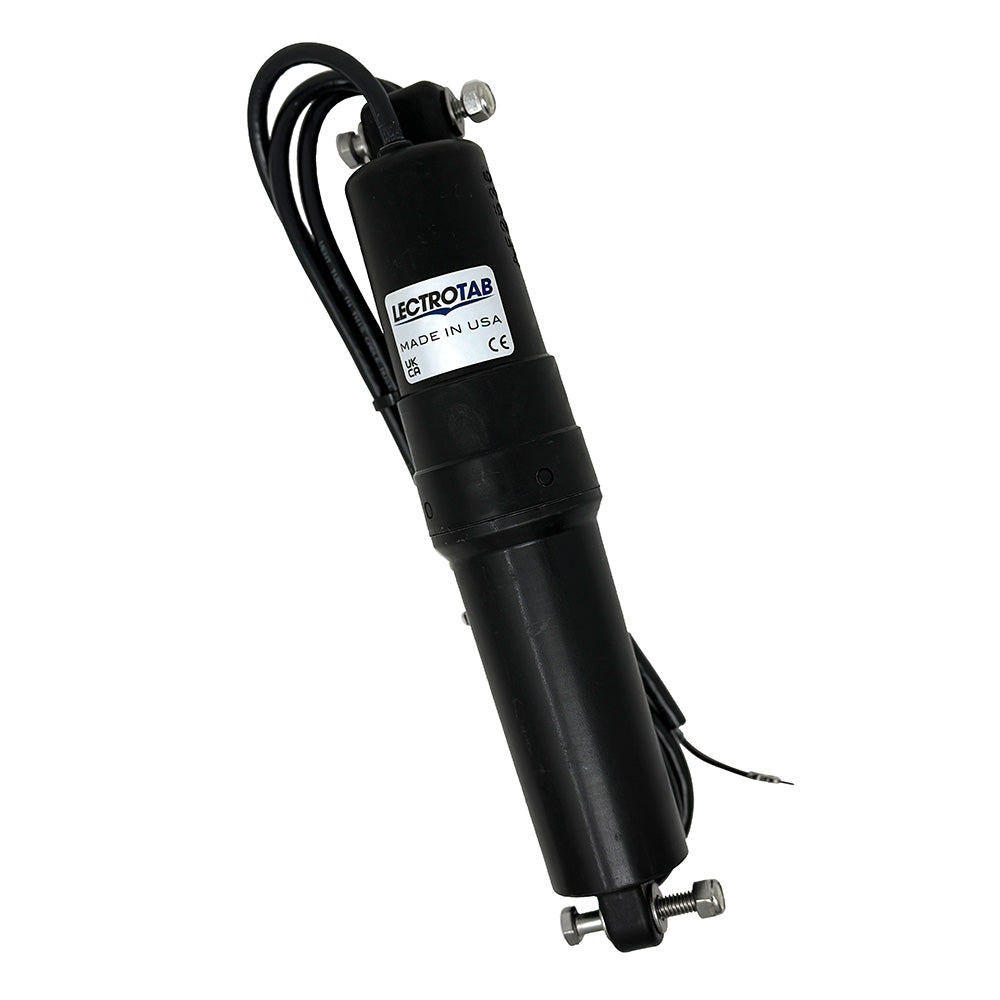

Lectrotab 12V Heavy Duty Tab Actuator - 6' Cable f/Everglades Boats

The Lectrotab 12V Heavy Duty Tab Actuator is made for Everglades Boats using Lectrotab trim tabs. It is a self-contained, non-hydraulic actuator with a sealed non-metallic housing, so no components are installed inside the boat and there is no hydraulic oil involved.

• Compatibility: Everglades Boats
• Voltage: 12V DC
• Stroke length: 2.25 in. (57 mm)
• Cable length: 6 ft. (1.8 m)
• Vertical height: 11.875 in. (302 mm)
• Connectors: Deutsch style
• Construction: Non-metallic external structure and permanently sealed housing
• Design: Non-hydraulic, maintenance-free, and fully self-contained
• Mounting: Uses a standard or low-profile transom mounting bracket
• Performance: Fully load-tested to push 1000 lbs. of force
• Features: Reinforced upper mounting boss, internal pressure equalization system, internal brake system, and quiet operation
• Sold: Individually
