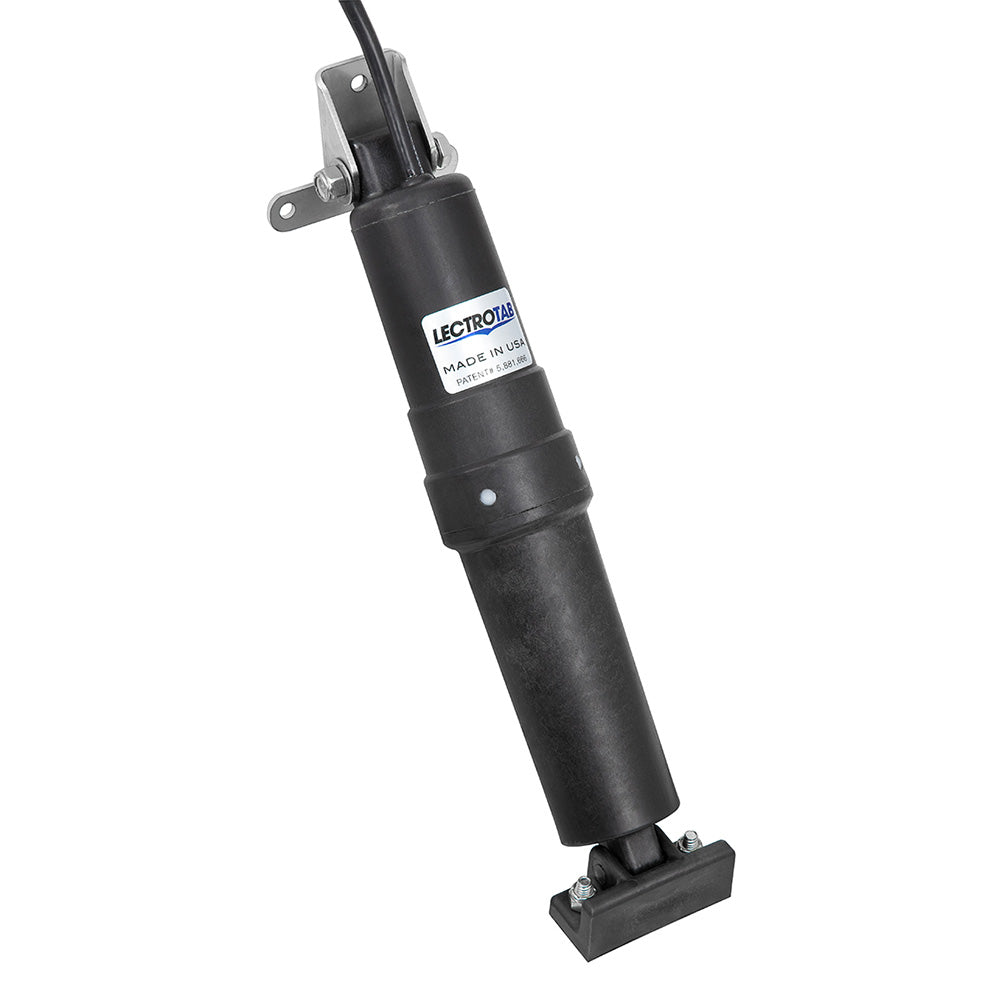

Lectrotab 12 V Heavy Duty Tab Actuator - 6' Cable

Lectrotab 12 V Heavy Duty Tab Actuator - 6' Cable

OM-LECTROTAB-12VHEAVY-ABK20

$210.59
$285.00 $210.59
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 2 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

For boats running at high speeds or through rough conditions, the Lectrotab heavy duty trim tab actuator adds reinforcement at its upper mounting point. This 12 V version has a 6-foot cable and delivers accurate tab positioning through a quiet, maintenance-free mechanism.

Key features

  • A reinforced upper mounting boss and 12-gauge stainless steel upper bracket support demanding boating applications.
  • The internal brake keeps tabs from shifting unexpectedly during forward travel or reverse operation.
  • Hydraulic oil is unnecessary, so there is no oil to escape from the actuator.
  • The sealed, non-metallic housing withstands sunlight and submersion without corrosion or deterioration.
  • The upper ram seal is positioned to avoid damage from fouling or barnacle growth.
  • No actuator components need space inside the boat, simplifying installation.

Specifications

  • Supply voltage: 12 V DC
  • Stroke: 2.25 inches (57 mm)
  • Cable length: 6 feet (1.8 m)
  • Vertical height: 11.875 inches (302 mm)
  • Upper mounting bracket: 12-gauge stainless steel
  • Lower mounting bracket: Standard
  • Push-force load test: 1000 lb
  • Pressure equalization: Internal system

Good to know

Sold as a single actuator.

Specifications

BrandLectrotab
Manufacturer part #A-BK-20
UPC850046155321
Boxed dimensions14 x 3 x 3 in
Shipping weight2.65 lb
