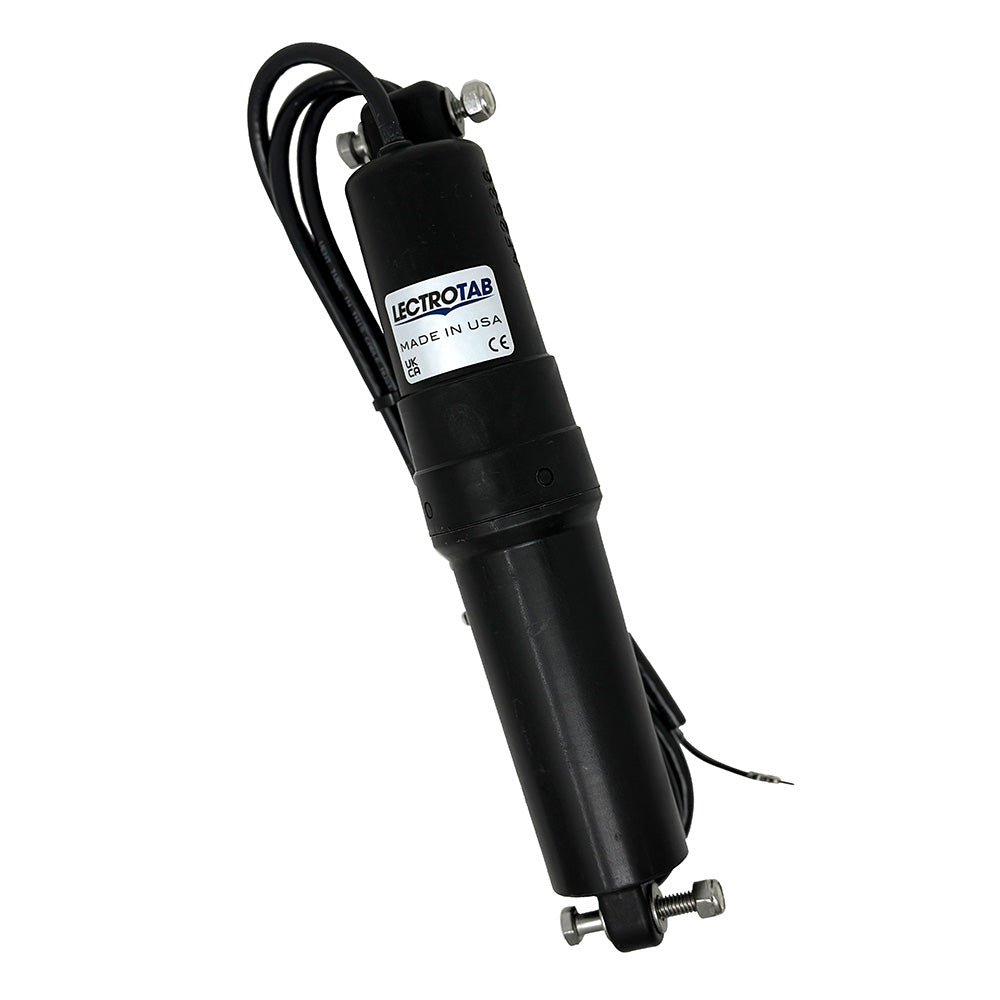

Lectrotab 12 V Heavy Duty Tab Actuator - 23' Cable

Lectrotab 12 V Heavy Duty Tab Actuator - 23' Cable

OM-LECTROTAB-12VHEAVY-ABK43

$224.18
$305.00 $224.18
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Rough conditions and high-speed boating are the intended applications for this Lectrotab heavy duty trim tab actuator. A reinforced upper mounting boss supports those demands, while the 12 V mechanism provides precise tab adjustment with a 23-foot cable.

Key features

  • Reinforcement at the upper mounting boss addresses the needs of boats used in demanding conditions.
  • A built-in brake holds tab position against unwanted movement underway or in reverse.
  • The quiet, maintenance-free mechanism works without hydraulic oil or the potential for hydraulic oil leaks.
  • A permanently sealed, non-metallic exterior avoids corrosion and deterioration from sun or underwater exposure.
  • Protected upper ram seal placement prevents damage caused by ram fouling and barnacle growth.
  • The self-contained assembly requires no actuator components inside the boat.

Specifications

  • Supply voltage: 12 V DC
  • Stroke: 2.25 inches (57 mm)
  • Cable length: 23 feet (7 m)
  • Vertical height: 11.875 inches (302 mm)
  • Push-force load test: 1000 lb
  • Pressure equalization: Internal system
  • Upper mounting bracket: Not included
  • Lower mounting bracket: Not included

Good to know

Sold individually without upper or lower mounting brackets.

Specifications

BrandLectrotab
Manufacturer part #A-BK-43
UPC850046155284
Boxed dimensions13 x 4 x 4 in
Shipping weight3.3 lb
