• Johnson Pump Macerator Pump 12V
1 1

Johnson Pump

Johnson Pump Macerator Pump 12V

Johnson Pump Macerator Pump 12V

OM-JOHNSONPUMP-MACERATOR12V-102445301

$133.57
$228.25 $133.57
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left
Authorized Johnson Pump Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

12vVolts
1"Outlet Size
1-1/2"Inlet Size
10 GPMGallons Per Minute
Waste PumpsType

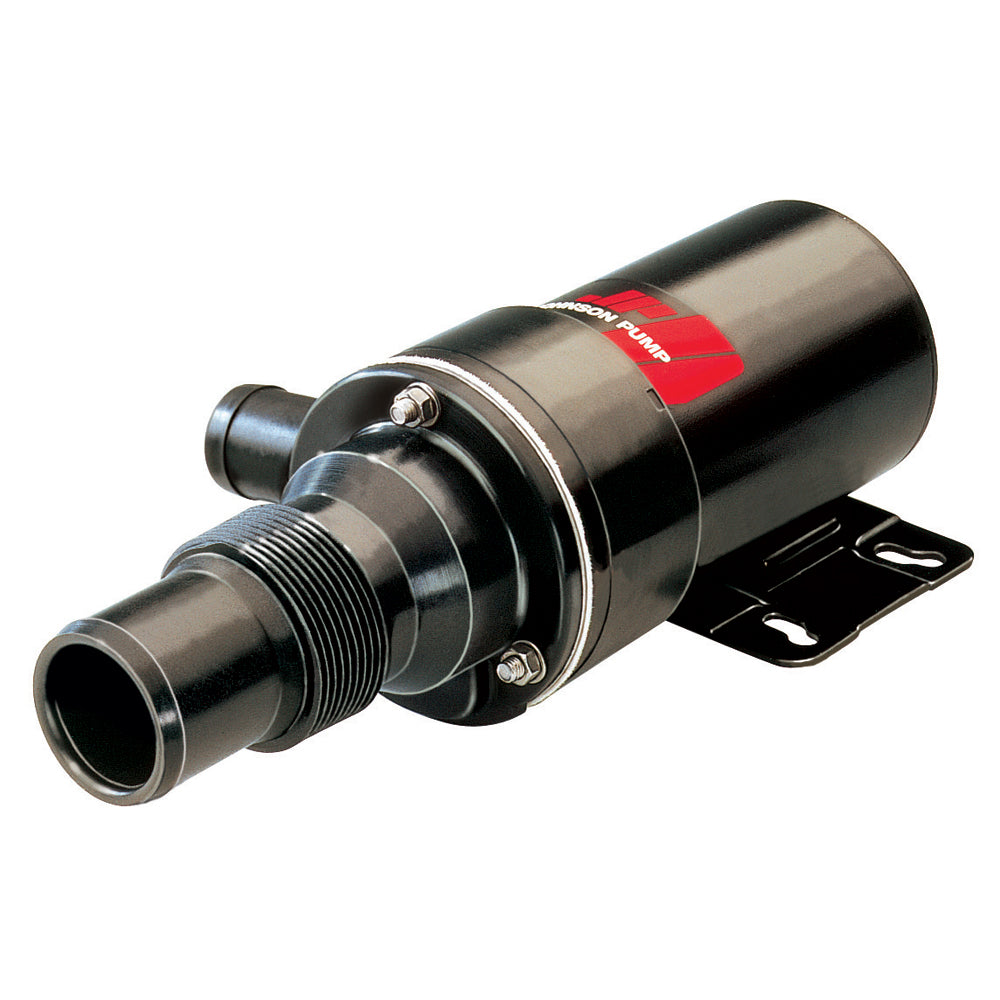

Macerator Pump TA3P10-19, 12v

The Johnson Pump brand TA3P10-19 Macerator pump takes care of the toilet/livewell waste, shredding it before it is pumped into or out from the holding tank. The pump should be connected as close as possible to the holding tank discharge outlet or the bowl discharge outlet. Note! Use unbleached lavatory paper only.

Features:

  • Ignition protected motor, conforming with ISO 8846 Marine
  • Mounting bracket for easy replacement
  • Extremely energy efficient
  • Rotary cutter casing of PET (thermoplastic polyester)
  • Directly connected to sewage line or holding tank
  • Capacity at 0.2 bar (6.7 ft):37 l/min - 10 GPM
  • Inlet Connection:11/2" (dia 38 mm) hose or 11/2"NPT
  • Amperage: 15 A
  • Fuse Size: 20 A
  • Outlet Connection: 1" (25.4 mm) hose
  • Motor: 12V DC (with built-in thermal protection)
  • Pump Body: Phenol Plastic (PF)
  • Impeller: Nitrile
  • Cutter Casing: Thermoplastic Polyester (PET)
  • Shaft: Stainless Steel
  • Seal: Lip Seal
  • Length: 230 mm - 9.06"
  • Width: 108 mm - 4.25"
  • Height: 82 mm - 3.23"
  • Weight: 1.9 kg - 4.2 lbs

*CE-Approved

Specifications

Volts12v
Outlet Size1"
Inlet Size1-1/2"
Gallons Per Minute10 GPM
TypeWaste Pumps
BrandJohnson Pump
Manufacturer part #10-24453-01
UPC787766709018
Boxed dimensions11 x 6 x 4 in
Shipping weight4.75 lb
Country of originPOLAND
