• Johnson Pump CM90 Circulation Pump - 23.7GPM - 12V - 1-½" Outlet
1 1

Johnson Pump

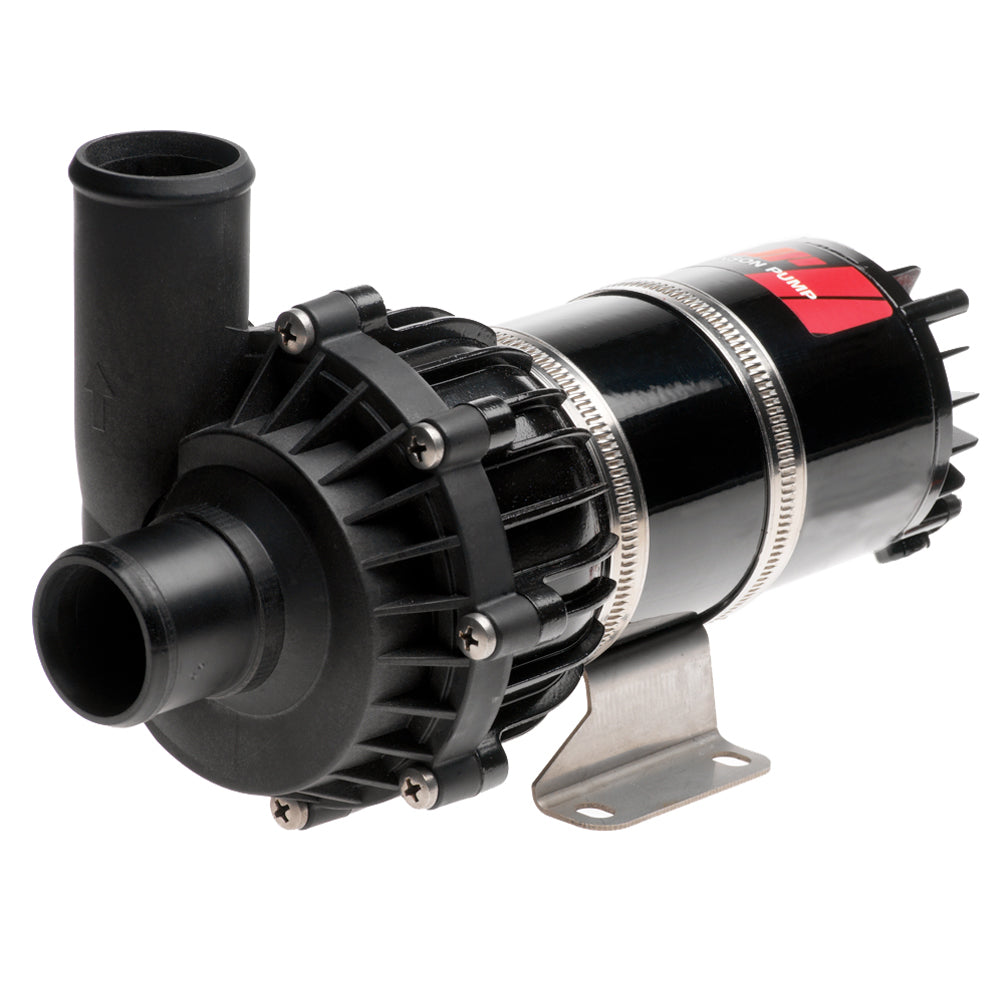

Johnson Pump CM90 Circulation Pump - 23.7GPM - 12V - 1-½" Outlet

Johnson Pump CM90 Circulation Pump - 23.7GPM - 12V - 1-½" Outlet

OM-JOHNSONPUMP-CM90CIRCULATIO-102466409

$301.46
$557.72 $301.46
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

23.7 GPMGallons Per Minute
12vVolts

Keep water moving through your boat's circulation system with the Johnson Pump CM90. This compact, magnetically driven centrifugal pump handles fresh water, salt water and water/ethylene glycol mixtures, pairing high flow with low electrical current consumption.

Key features

  • Handles multiple liquid types for fresh water, salt water or glycol circulation applications.
  • Delivers a stated flow rate of 23.7 GPM while keeping electrical current consumption low.
  • Interchangeable motor allows the motor to be replaced separately.
  • A separate universal bracket supports mounting on flat surfaces.
  • Allows up to 30 minutes of dry running.

Specifications

  • Model: CM90
  • Voltage version: 12V
  • Nominal motor voltage: 13.6V DC
  • Voltage range: 10–16V
  • Flow rate: 23.7 GPM
  • Outlet: 1-1/2 inches
  • Port diameters: 20mm (3/4 inch) and 38mm (1-1/2 inches)
  • Maximum glycol concentration: 60%
  • System pressure: -0.3 to +3.0 bar
  • Maximum stationary pressure: 4.0 bar
  • Maximum input power: 125W
  • Motor service life at nominal voltage: More than 5,000 hours
  • Motor start/stop cycles: 10,000
  • Dry running duration: 30 minutes
  • Dimensions: 244mm long x 120mm wide x 150mm high
  • Weight: 3.0kg (6.6 pounds)
  • Body material: Glass-fiber-reinforced PPA

Specifications

Gallons Per Minute23.7 GPM
Volts12v
BrandJohnson Pump
Manufacturer part #10-24664-09
UPC7330717012915
Boxed dimensions11 x 7 x 5 in
Shipping weight6.6 lb
Country of originEE
