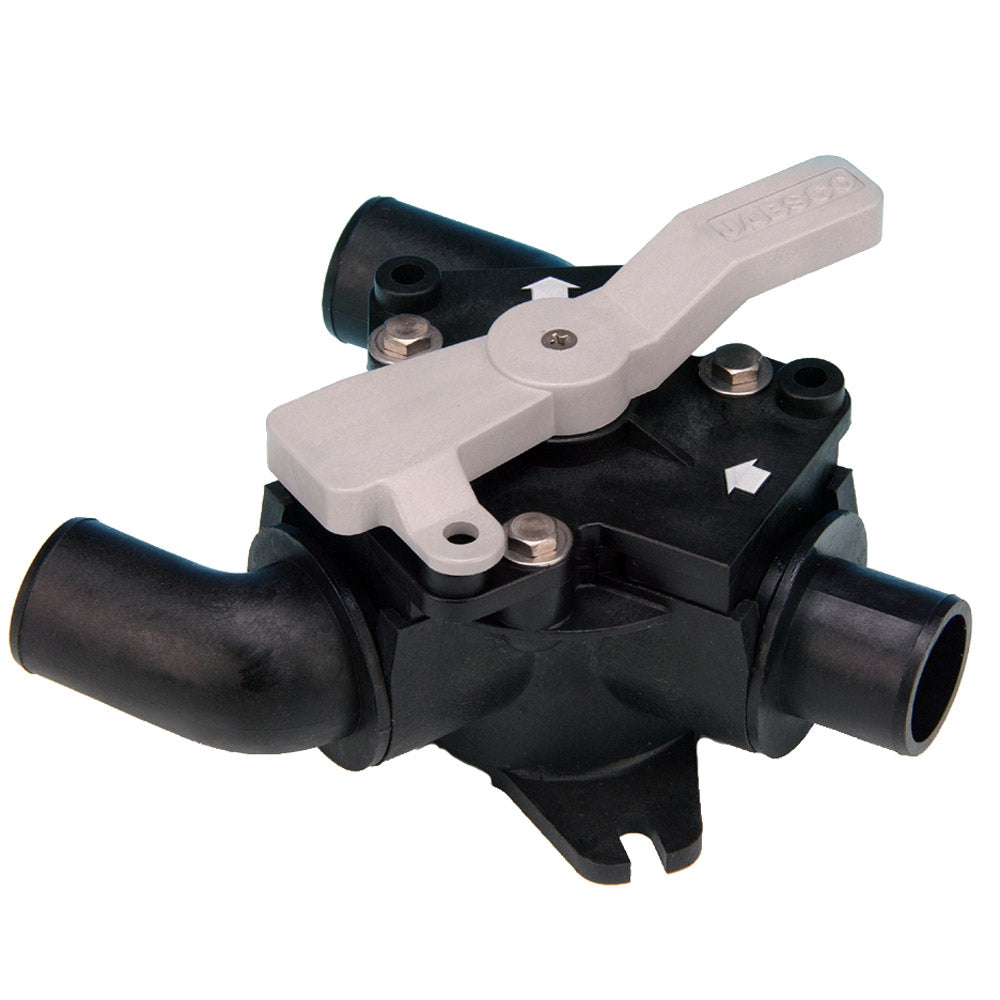

Jabsco Y-Valve

The Jabsco Y-Valve routes onboard plumbing flow between two discharge paths, such as a holding tank and an overboard discharge where legal. It can also be used for holding tank pump-out routing or in a bilge pumping system to choose between two bilge pickups.

Local and Federal rules determine where untreated waste may be discharged. The valve includes a selector handle that can be padlocked or sealed in either position to support retention requirements in restricted areas.

• Brand: Jabsco
• Product type: Y-valve
• Construction: Chemical and corrosion resistant polypropylene and stainless steel
• Selector: Lever can be padlocked, with lock not included, and/or sealed in either position
• Port routing: Ports can be rotated for parallel, 90°, opposite-direction, upward, or downward plumbing runs without disassembly
• Included ports: 1-1/2" (38 mm) ports fitted, plus extra 1" (25 mm) straight inlet port
• Mounting option: Optional shaft extension supports bulkhead mounting up to 1-3/4" thick with only the selector handle exposed
• Design: Self cleaning operation with molded-in flow direction indicator arrows
• Mounting: Three mounting feet are accessible for installation
• Service access: Three hex head machine screws allow the top cover and diverter assembly to lift away from the body
• Warning: This product can expose you to chemicals including NICKEL (METALLIC), which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
