Jabsco Vented Loop Solenoid Valve f/37010 Series Toilet

The Jabsco vented loop solenoid valve is made for use with a 37010 Series toilet installation that includes a vented loop in the inlet hose. It connects to the vent air inlet to support electric toilet performance and prime-ability.

• Product type: vented loop solenoid valve
• Application: Jabsco 37010 Series toilet
• Part number listed: 37068-2000

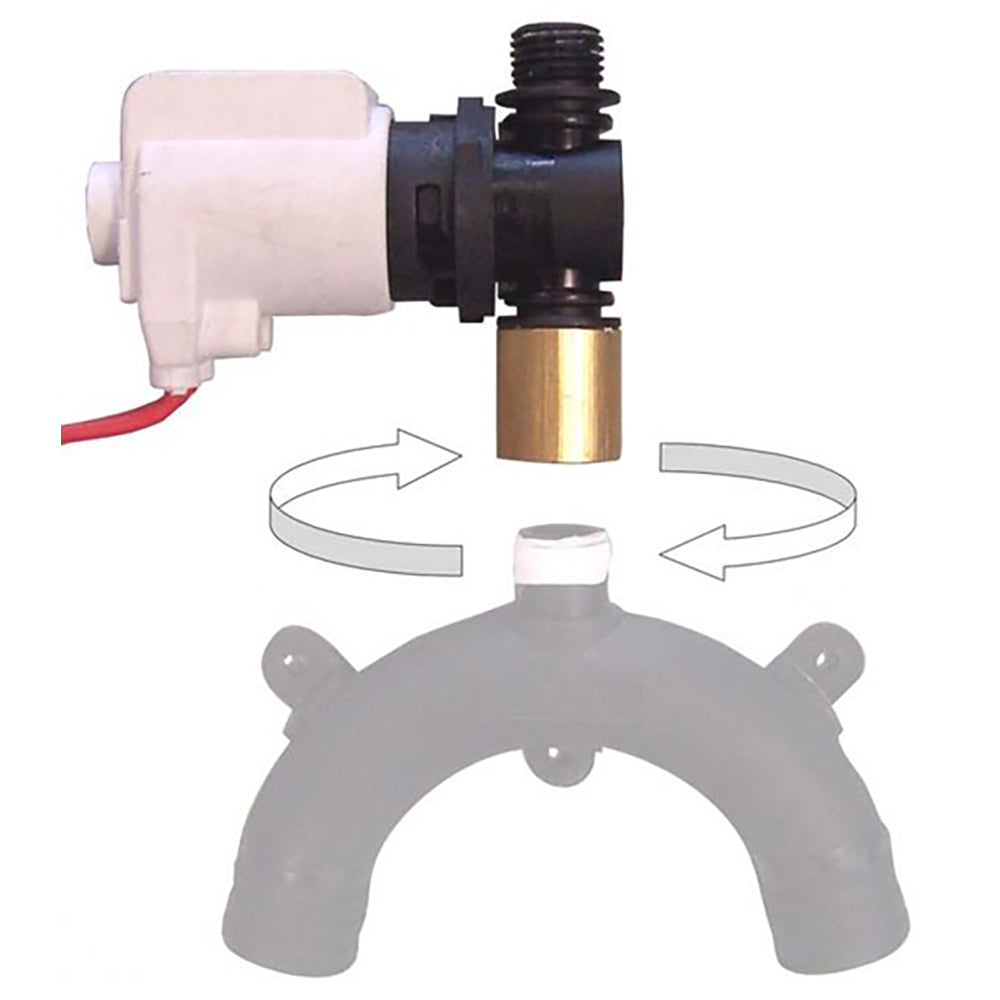

• Installation point: vent air inlet on the vented loop
• Connection: brass port of the valve connects to the air inlet of the vented loop
• Wiring: wire in parallel with the toilet motor
• Flush switch connection: connect one side of the solenoid to the toilet flush switch
• Ground connection: connect the other side to battery ground
• Note: remove the plastic filter if installed before connecting the brass port
• Warning: this product can expose users to lead, known to the State of California to cause cancer, birth defects, or other reproductive harm
