Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump - 24V - 6 GPM - 40 PSI

Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump - 24V - 6 GPM - 40 PSI

OM-JABSCO-PARMAXHD6-P602J215S3A

$290.51
$429.99 $290.51
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

40Max PSI
6 GPMGallons Per Minute
24vVolts

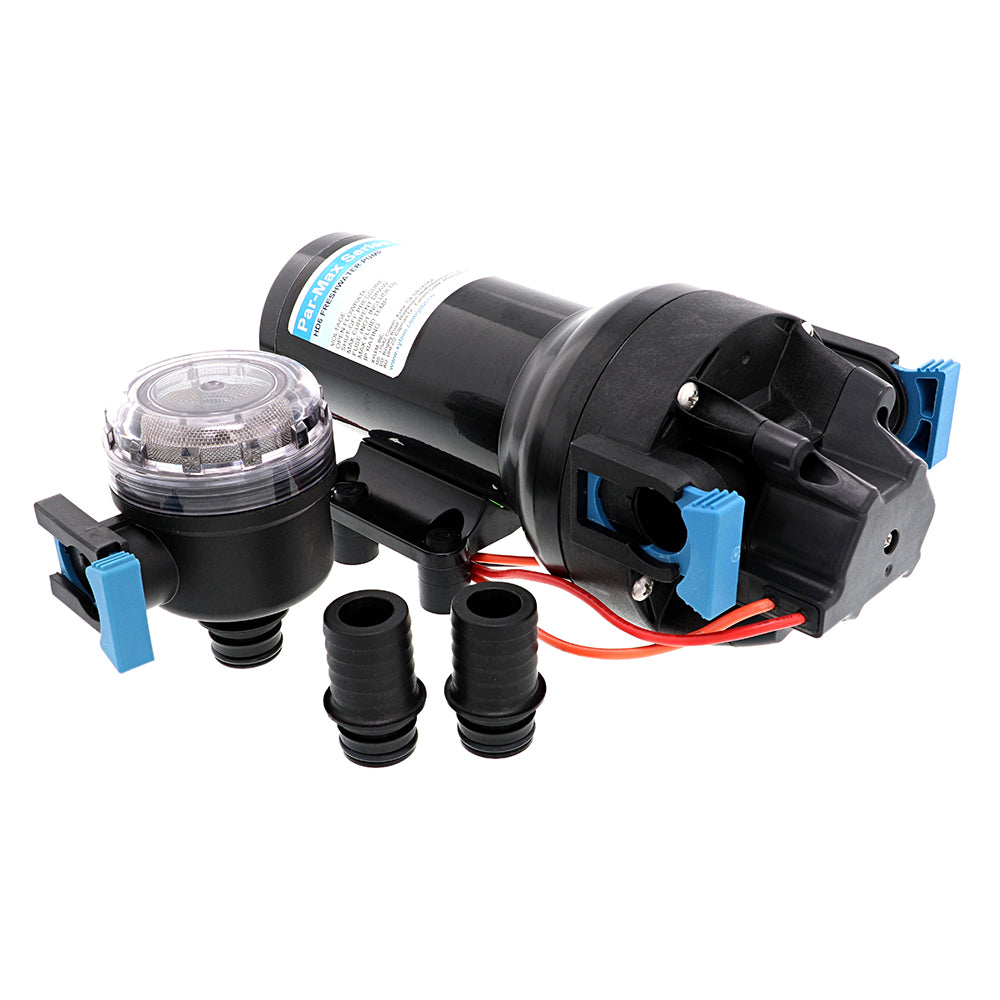

The Jabsco Par-Max HD6 is a heavy-duty water pressure pump for marine plumbing systems. This model is the 24V, 6 GPM, 40 PSI version and includes an on-demand pressure switch with bypass support for smoother flow.

  • Product type: water pressure pump
  • Voltage: 24V
  • Flow rating: 6 GPM
  • Pressure rating: 40 PSI
  • Motor design: brushed, permanent magnet TENV
  • Pumphead upper housing: glass fiber reinforced polypropylene
  • Diaphragm: co-molded TPV
  • Check valves: EPDM
  • Maximum inlet pressure: 30 PSI, 2.1 Bar
  • Fluid temperature range: 32 F to 140 F, 0 C to 60 C
  • Dry self-priming capability: 7 ft min, 2.13 m/min
  • Ingress protection: IPX6
  • Certifications: CE, ISO8846, RCM
  • HD construction: wider diameter motor with powder coated shell, cast aluminum endbells and lower housing
  • Features: sealed pressure switch, quick connect ports, vibration dampening mounting feet, run-dry capability and integrated bypass module

Specifications

Max PSI40
Gallons Per Minute6 GPM
Volts24v
BrandJabsco
Manufacturer part #P602J-215S-3A
UPC671880841993
Boxed dimensions15 x 6 x 6 in
Shipping weight9.0 lb
Country of originCHINA
