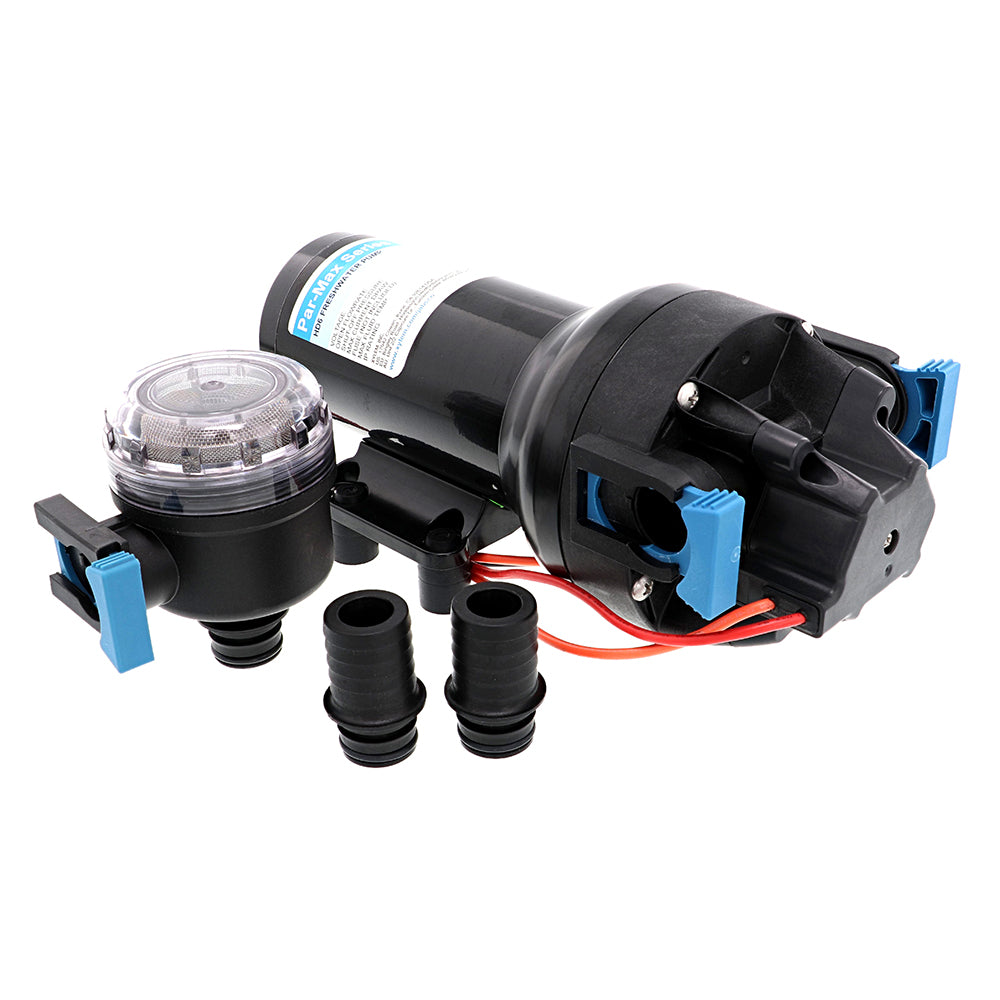

Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump - 12V - 6 GPM - 60 PSI

Supply your boat's water system with the Jabsco Par-Max HD6, a heavy-duty 12V pressure pump rated at 6 GPM and 60 PSI. On-demand switching and an integrated bypass help deliver water with less cycling and smoother flow.

Key features

• A sealed pressure switch operates the pump on demand, while the bypass module reduces cycling.
• The wider-diameter motor, powder-coated shell and cast aluminum endbells and lower housing support pressure capability and service life.
• Self-priming capability gives you more flexibility when choosing an installation position.
• The pump can run dry without damage.
• Quick-connect ports simplify installation and access for servicing.
• Vibration-dampening feet complement the pump's quiet operation.

Specifications

• Brand: Jabsco
• Model: Par-Max HD6
• Product type: Heavy-duty water pressure pump
• Voltage: 12 V
• Flow rate: 6 GPM / 23 LPM
• Pressure: 60 PSI / 4.1 bar
• Motor design: Brushed, permanent magnet TENV
• Motor shell finish: Powder coated
• Endbell and lower housing material: Cast aluminum
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm material: Co-molded TPV
• Check valve material: EPDM
• Maximum inlet pressure: 30 PSI / 2.1 bar
• Fluid temperature range: 32°F–140°F / 0°C–60°C
• Minimum dry self-priming capability: 7 ft
• Certifications: CE, ISO8846, RCM
• Ingress protection: IPX6
