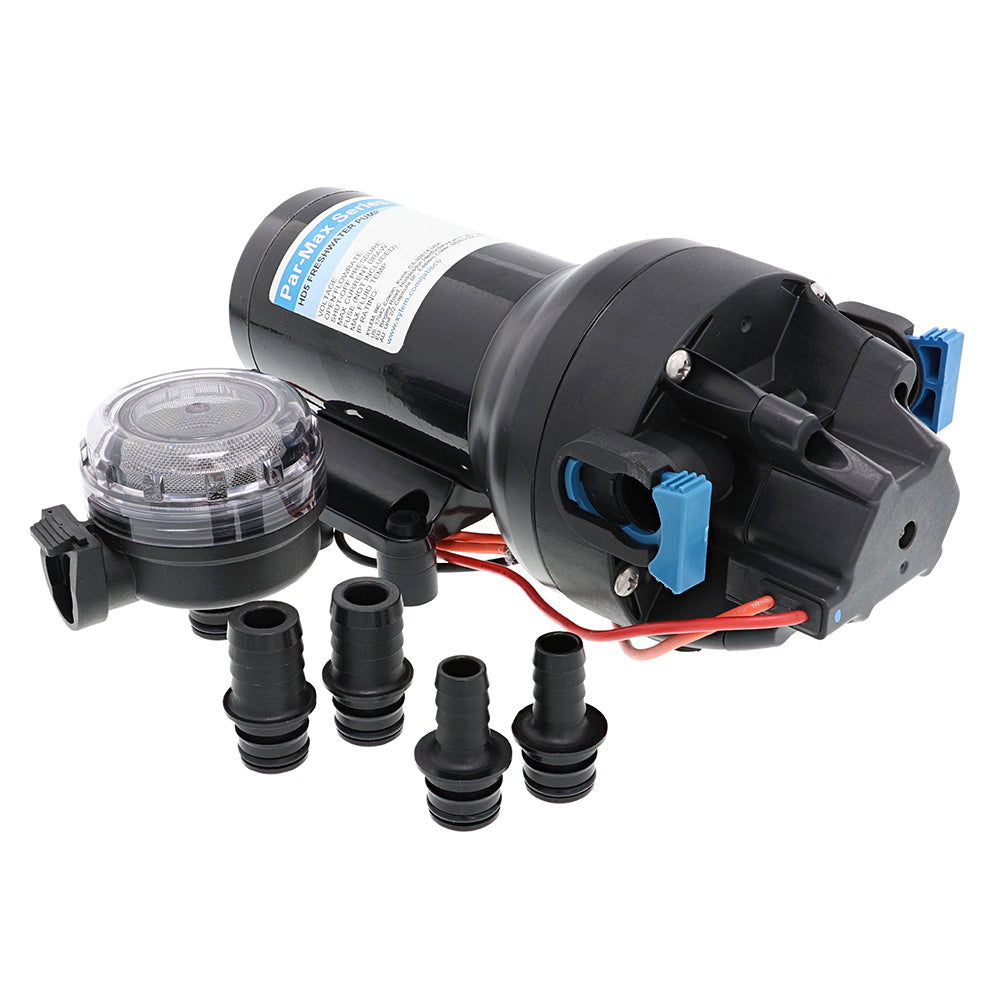

Jabsco Par-Max HD5 Heavy Duty Water Pressure Pump - 12V - 5 GPM - 60 PSI

Jabsco Par-Max HD5 Heavy Duty Water Pressure Pump - 12V - 5 GPM - 60 PSI

OM-JABSCO-PARMAXHD5-P501J118S3A

$222.72
$323.99 $222.72
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Jabsco Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

12vVolts
60Max PSI
5 GPMGallons Per Minute

The Jabsco Par-Max HD5 is a 12V heavy-duty water pressure pump for onboard fresh water systems needing 5 GPM flow and 60 PSI pressure. Its HD construction uses a wider diameter motor, powder-coated shell, cast aluminum endbells, and cast aluminum lower housing for demanding pressure-pump service.

  • Voltage: 12V
  • Flow rate: 5 GPM
  • Pressure: 60 PSI
  • Motor design: Brushed, permanent magnet TENV
  • Pumphead upper housing: Glass fiber reinforced polypropylene
  • Diaphragm: Co-molded TPV
  • Check valves: EPDM
  • Maximum inlet pressure: 30 PSI (2.1 Bar)
  • Fluid temperature range: 32°F - 140°F (0°C - 60°C)
  • Dry self-priming capability: 7 ft min (2.13 m/min)
  • Operation: Integrated sealed pressure switch for on-demand use
  • Additional features: Quick connect ports, vibration dampening mounting feet, integrated bypass module, and run-dry capability
  • Certifications: CE, ISO8846, RCM
  • Ingress protection: IPX6
  • Warning: This product can expose you to chemicals including antimony oxide (antimony trioxide), known to the State of California to cause cancer.

Specifications

Volts12v
Max PSI60
Gallons Per Minute5 GPM
BrandJabsco
Manufacturer part #P501J-118S-3A
UPC671880841955
Boxed dimensions15 x 6 x 6 in
Shipping weight8.4 lb
Country of originCHINA
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Manuals & documents

Product brochurePDF ↓
