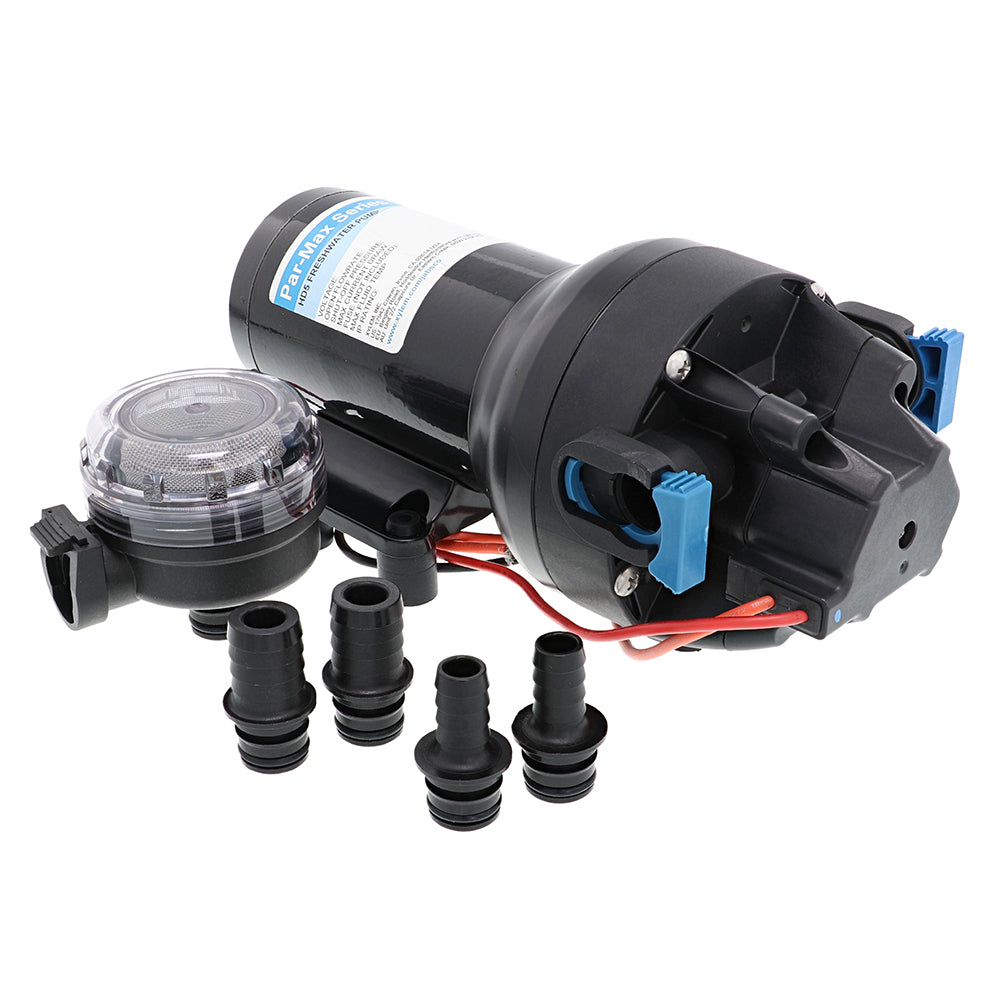

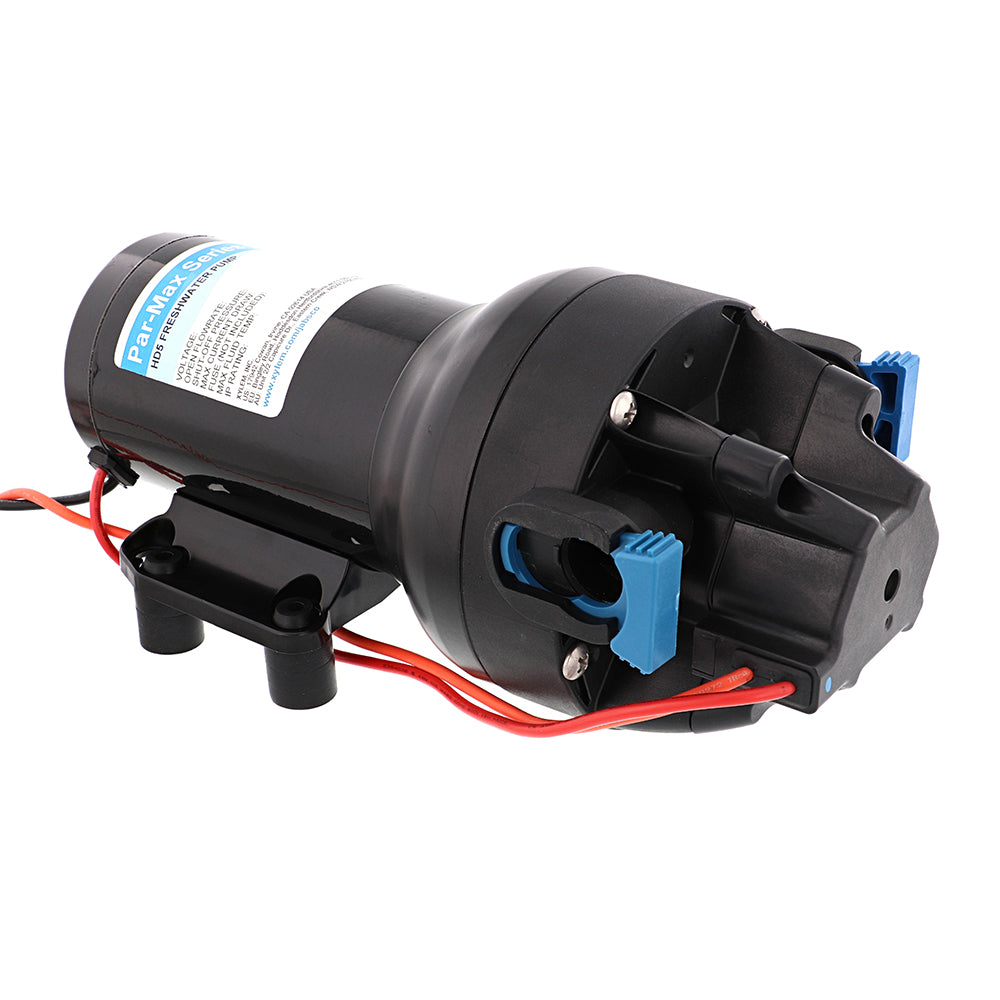

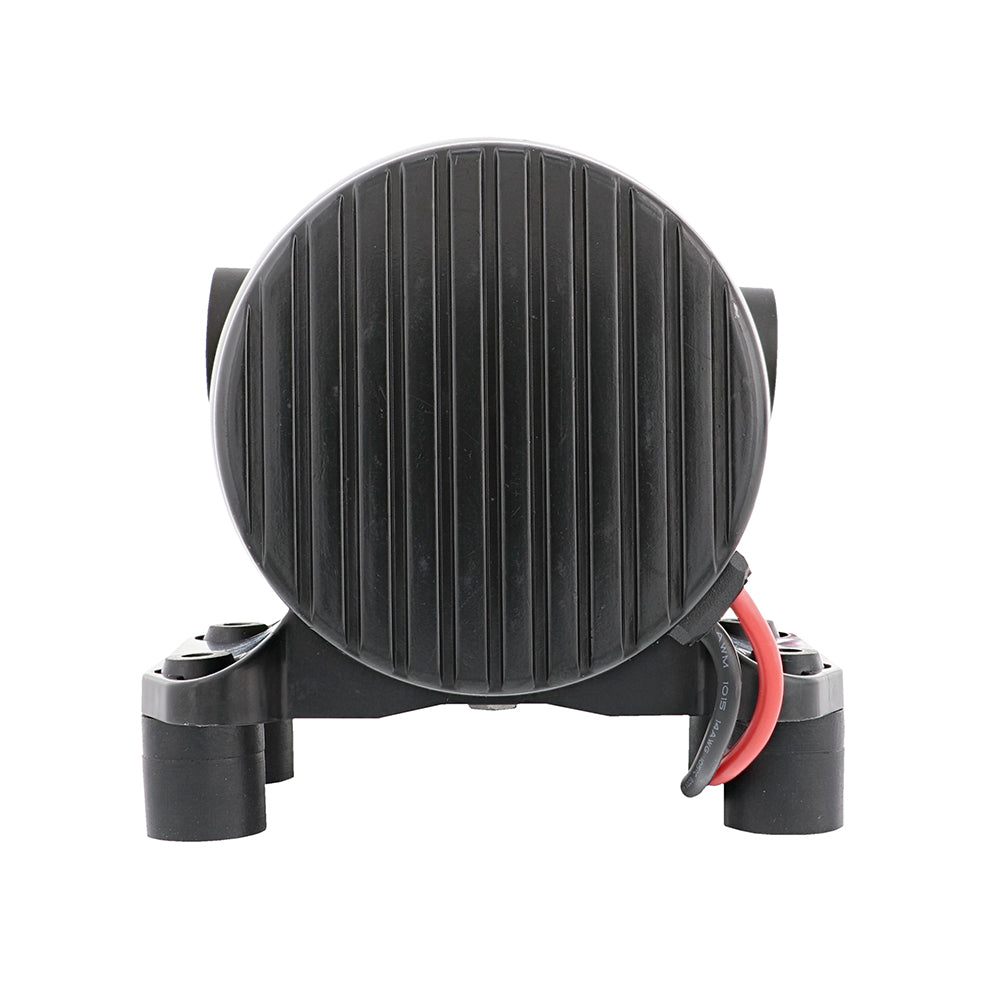

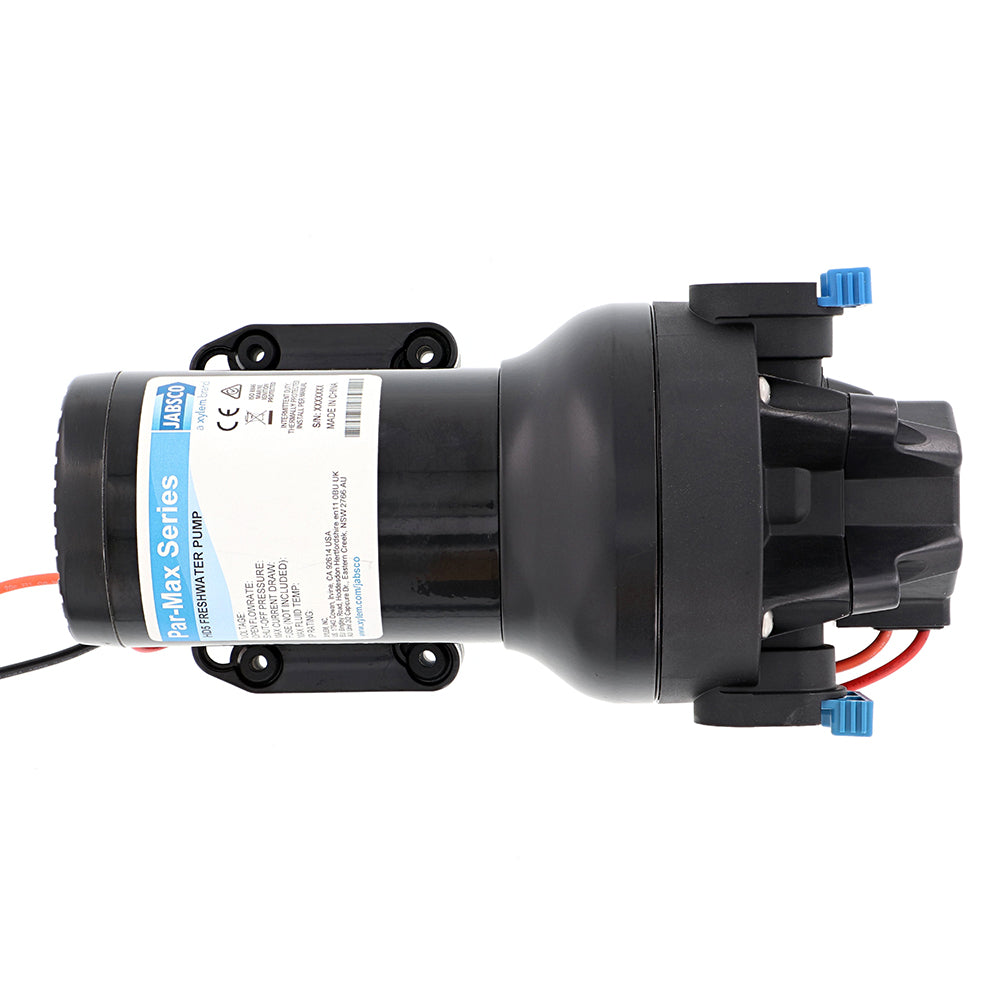

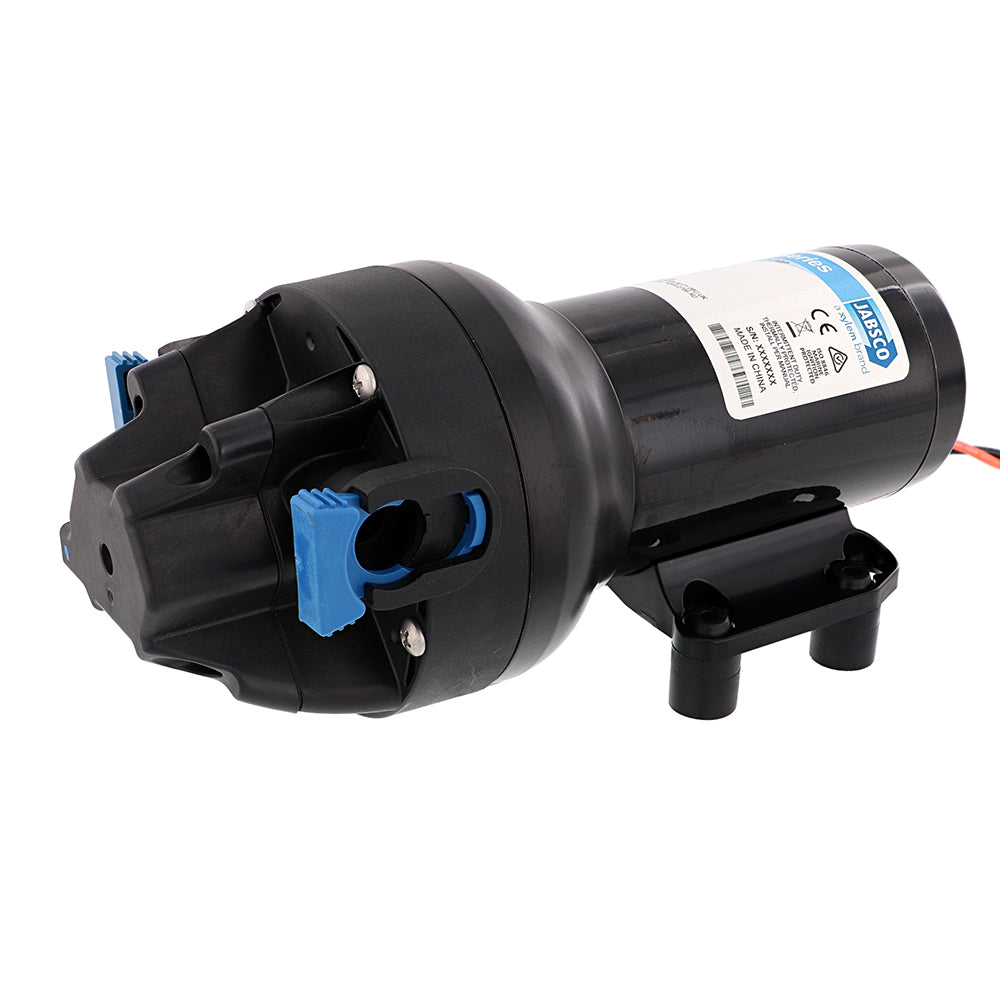

Jabsco Par-Max HD5 Heavy Duty Water Pressure Pump - 12V - 5 GPM - 40 PSI

Jabsco Par-Max HD5 Heavy Duty Water Pressure Pump - 12V - 5 GPM - 40 PSI

OM-JABSCO-PARMAXHD5-P501J115S3A

$222.72
$323.99 $222.72
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

12vVolts
40Max PSI
5 GPMGallons Per Minute

The Jabsco Par-Max HD5 is a 12V water pressure pump for marine fresh water systems that need on-demand flow. This heavy duty model is rated for 5 GPM and 40 PSI, with construction details intended for higher pressure use.

  • Voltage: 12V
  • Flow rate: 5 GPM
  • Pressure rating: 40 PSI
  • Motor design: Brushed, permanent magnet TENV
  • HD construction: Wider diameter motor, powder coated shell, cast aluminum endbells, and cast aluminum lower housing
  • Pumphead upper housing: Glass fiber reinforced polypropylene
  • Diaphragm: Co-molded TPV
  • Check valves: EPDM
  • Max inlet pressure: 30 PSI (2.1 Bar)
  • Fluid temperature range: 32°F to 140°F (0°C to 60°C)
  • Dry self-priming capability: 7 ft min (2.13 m/min)
  • Operation: Integrated sealed pressure switch for on-demand use
  • Ports: Quick connect ports
  • Mounting: Vibration dampening mounting feet
  • Flow control: Integrated bypass module to reduce cycling and smooth flow
  • Run-dry capable: Can run dry without damage
  • Certifications: CE, ISO8846, RCM
  • Ingress protection: IPX6
  • Warning: This product can expose you to chemicals including antimony oxide, known to the State of California to cause cancer.

Specifications

Volts12v
Max PSI40
Gallons Per Minute5 GPM
BrandJabsco
Manufacturer part #P501J-115S-3A
UPC671880841948
Boxed dimensions18 x 6 x 5 in
Shipping weight8.4 lb
Country of originCHINA
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
