Jabsco
Jabsco Par-Max HD4 Heavy Duty Water Pressure Pump - 12V - 4 GPM - 60 PSI
Jabsco Par-Max HD4 Heavy Duty Water Pressure Pump - 12V - 4 GPM - 60 PSI
SKU:OM-JABSCO-PARMAXHD4-Q401J118S3A
Low stock: 3 left
Couldn't load pickup availability
Overview

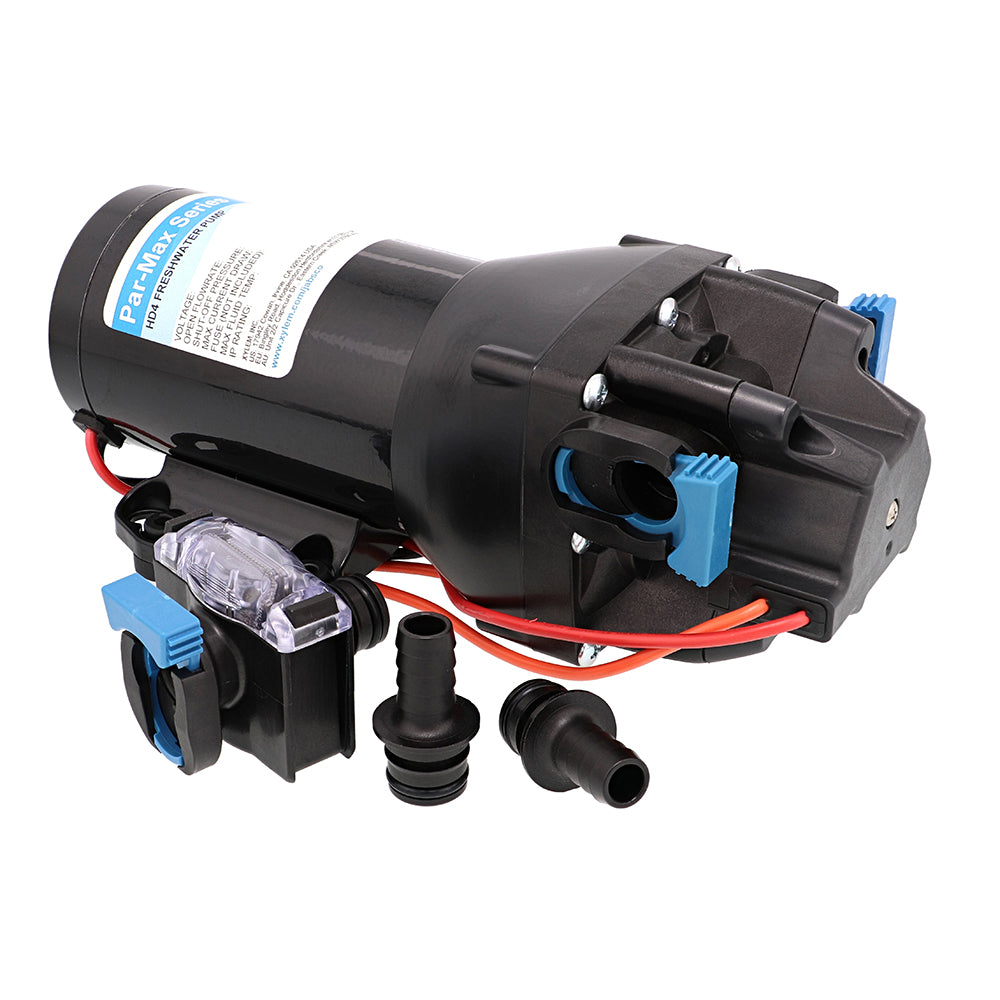

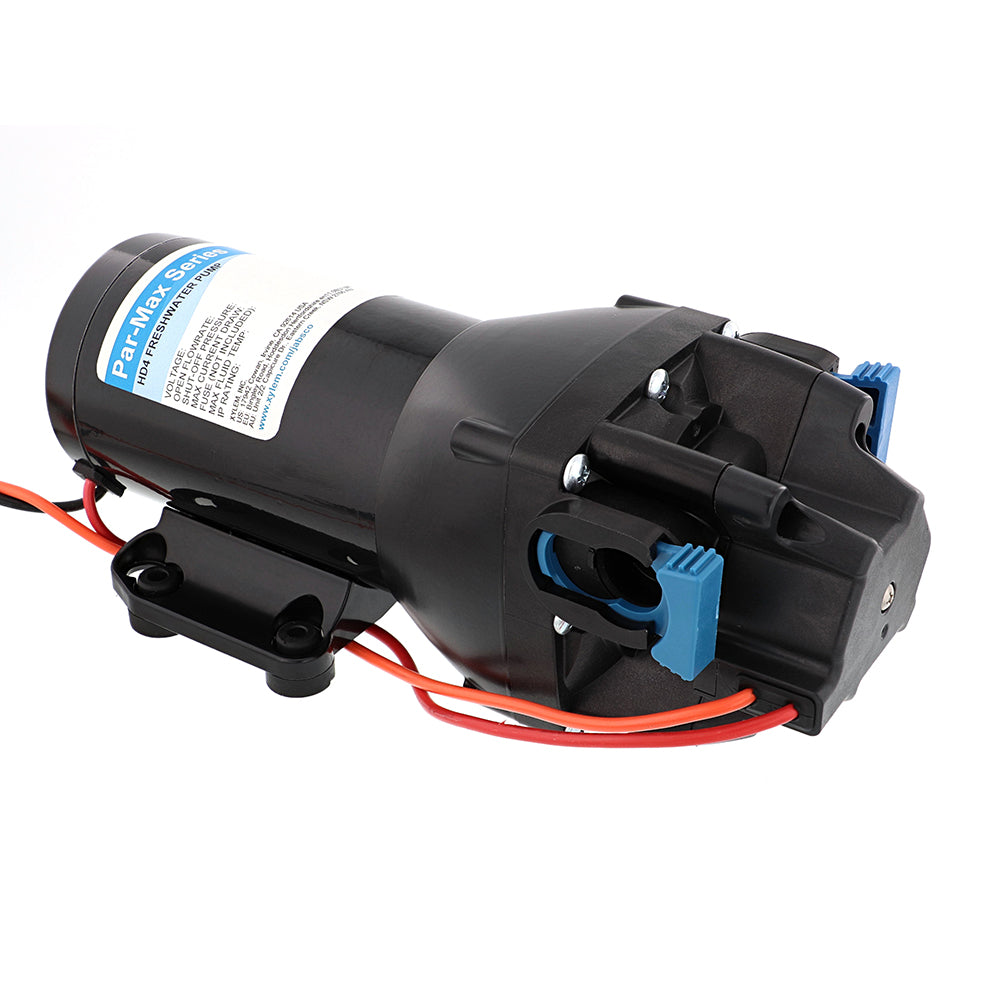

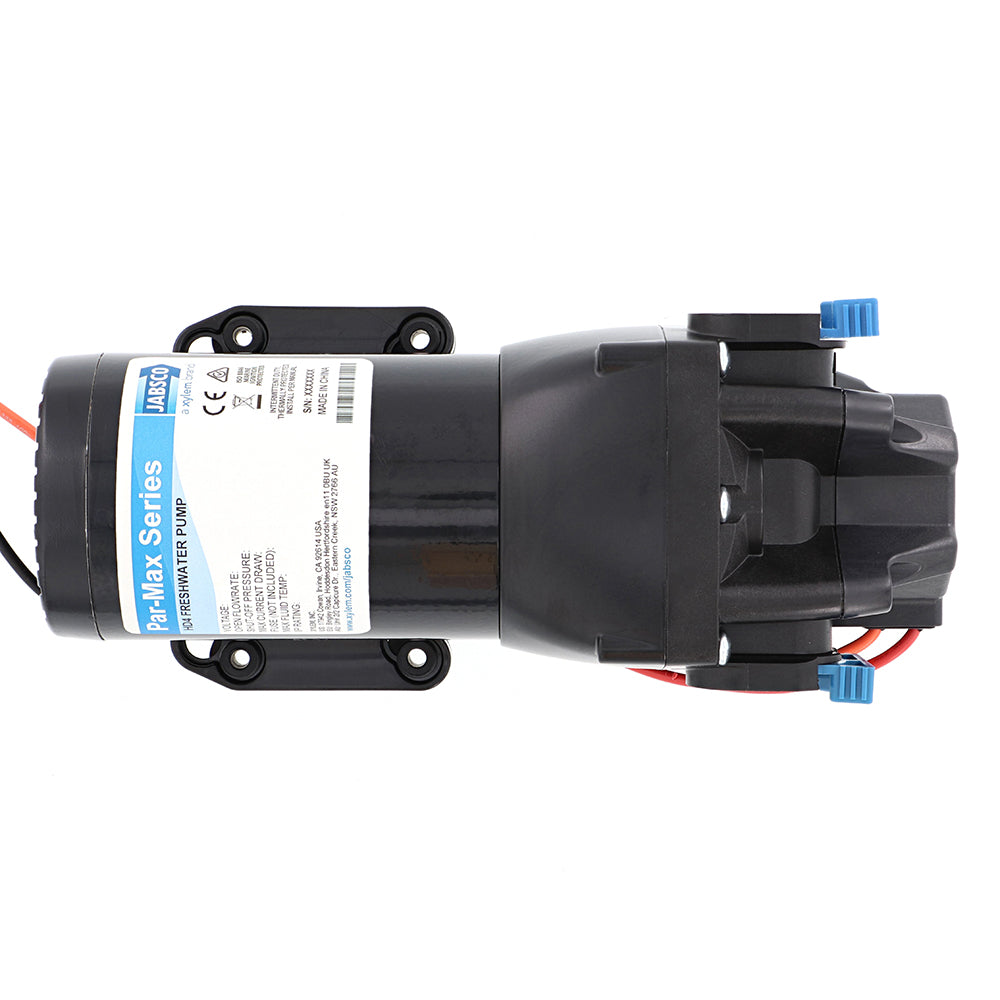

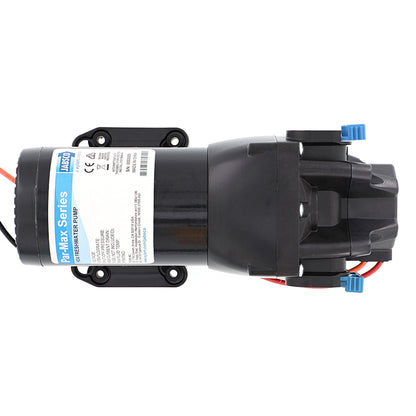

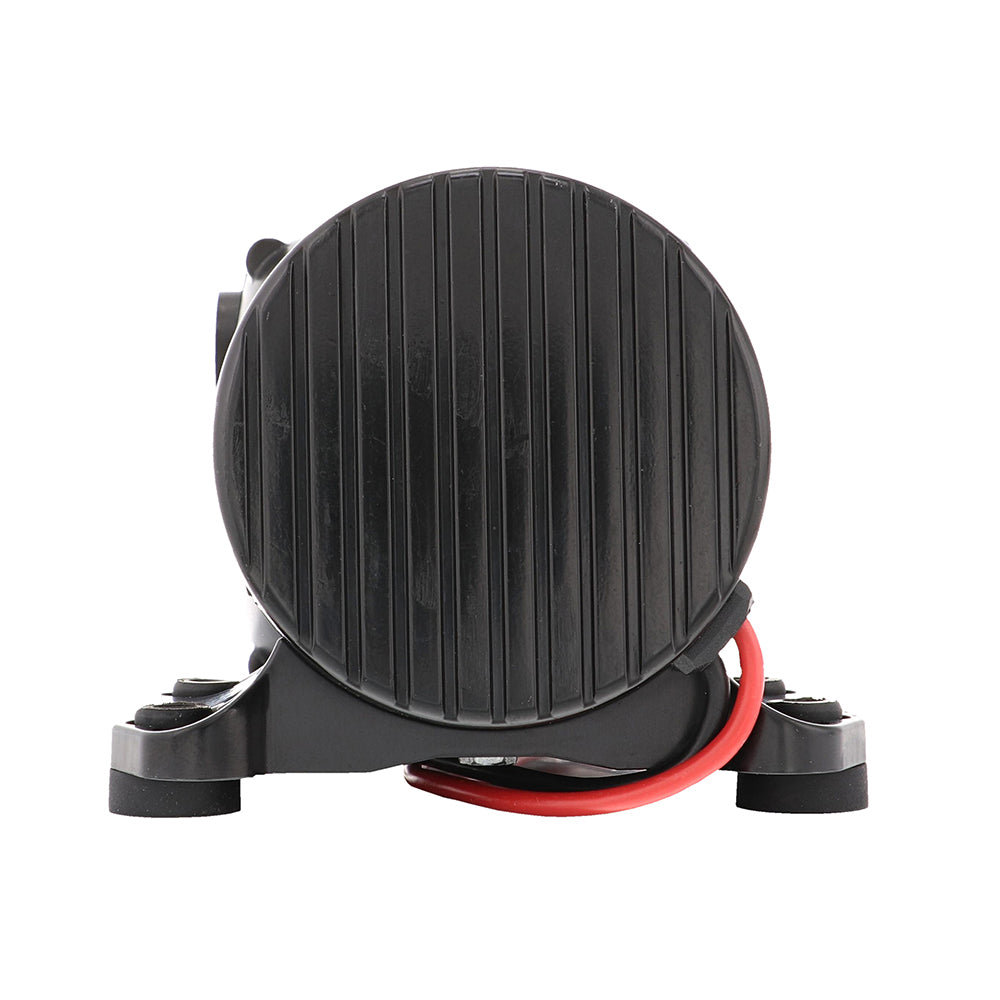

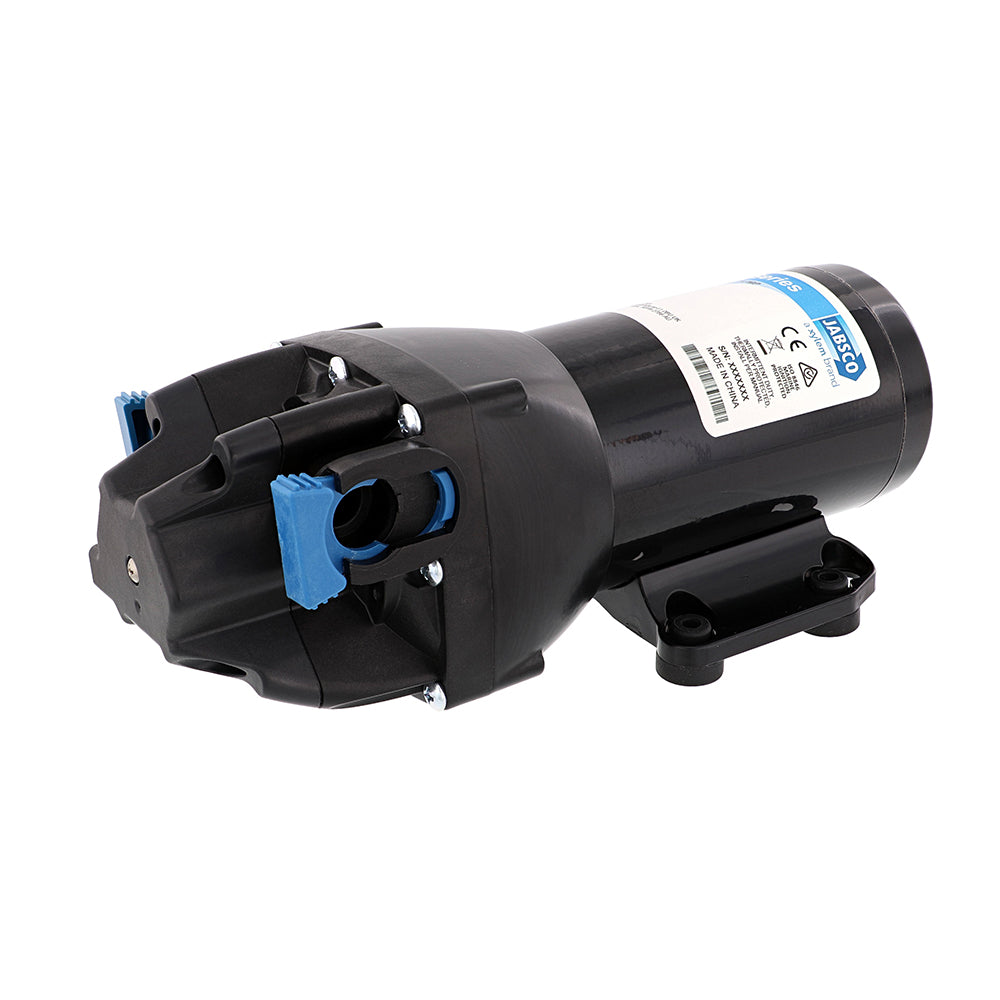

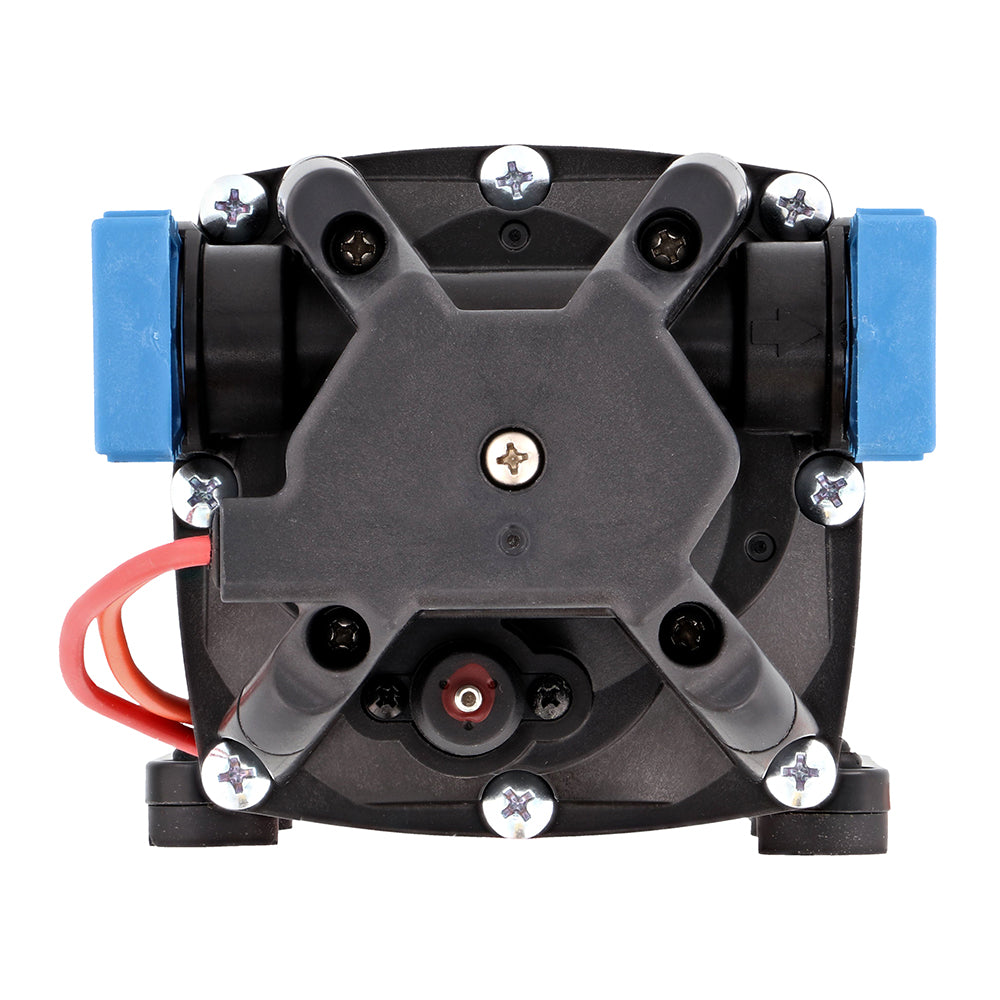

The Jabsco Par-Max HD4 is a heavy duty water pressure pump for marine freshwater pressure systems. This 12V model is rated for 4 GPM flow and 60 PSI pressure.
- Product type: Heavy duty water pressure pump
- Model: Par-Max HD4
- Voltage: 12V
- Flow rating: 4 GPM
- Pressure rating: 60 PSI
- Motor design: Brushed, permanent magnet TENV
- Pumphead upper housing material: Glass fiber reinforced polypropylene
- Diaphragm: Co-molded TPV
- Check valves: EPDM
- Max inlet pressure: 30 PSI (2.1 Bar)
- Fluid temperature range: 32°F – 140°F (0°C – 60°C)
- Dry self-priming capability: 7ft min (2.13m/min)
- Ingress protection: IPX6
- Certifications: CE, ISO8846, RCM
- Features: Sealed pressure switch, quick connect ports, vibration dampening mounting feet, integrated bypass module, and run-dry capability
- HD construction: Wider diameter motor with powder coated shell, cast aluminum endbells, and cast aluminum lower housing
- California Proposition 65: Can expose users to chemicals including antimony oxide (antimony trioxide), known to the State of California to cause cancer
Specifications
| Volts | 12v |
|---|---|
| Max PSI | 60 |
| Gallons Per Minute | 4 GPM |
| Brand | Jabsco |
| Manufacturer part # | Q401J-118S-3A |
| UPC | 671880841870 |
| Boxed dimensions | 15 x 6 x 6 in |
| Shipping weight | 7.85 lb |
| Country of origin | CHINA |
