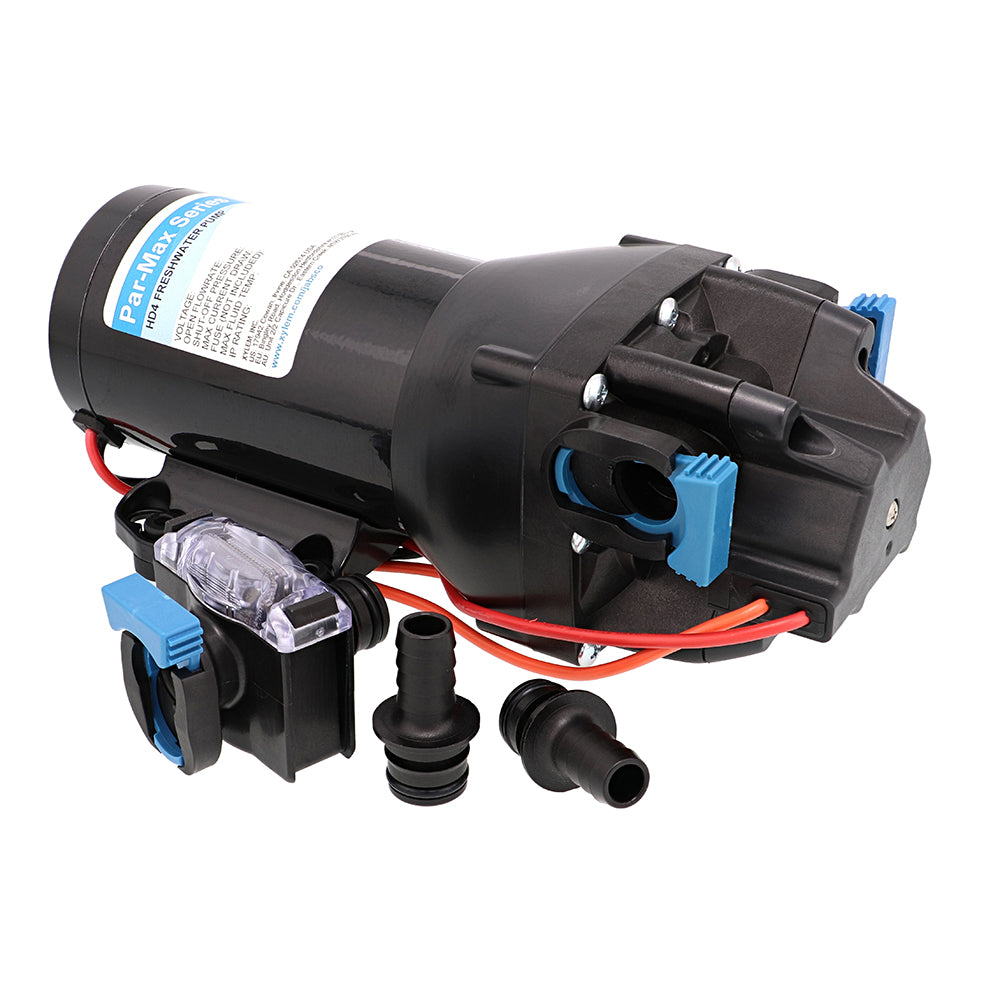

Jabsco Par-Max HD4 Heavy Duty Water Pressure Pump - 12V - 4 GPM - 40 PSI

The Jabsco Par-Max HD4 is a heavy duty water pressure pump for marine fresh water systems that need 12V operation, 4 GPM flow and 40 PSI pressure. Its HD construction uses a larger motor, powder coated shell, cast aluminum endbells and cast aluminum lower housing for demanding installations.

• Voltage: 12V
• Flow rate: 4 GPM
• Pressure: 40 PSI
• Motor design: Brushed, permanent magnet TENV
• HD construction: Wider diameter motor, powder coated shell, cast aluminum endbells and cast aluminum lower housing
• Pumphead upper housing: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32°F to 140°F (0°C to 60°C)
• Self-priming: 7 ft min (2.13 m/min) dry self-priming capability
• Operation: Integrated sealed pressure switch for on-demand use
• Dry running: Can run dry without damage
• Ports: Quick connect ports for installation, service and maintenance
• Flow control: Integrated bypass module helps reduce cycling and smooth flow
• Mounting: Vibration dampening mounting feet
• Certifications: CE, ISO8846, RCM
• Ingress protection: IPX6
• Warning: This product can expose you to chemicals including antimony oxide (antimony trioxide), which is known to the State of California to cause cancer.
