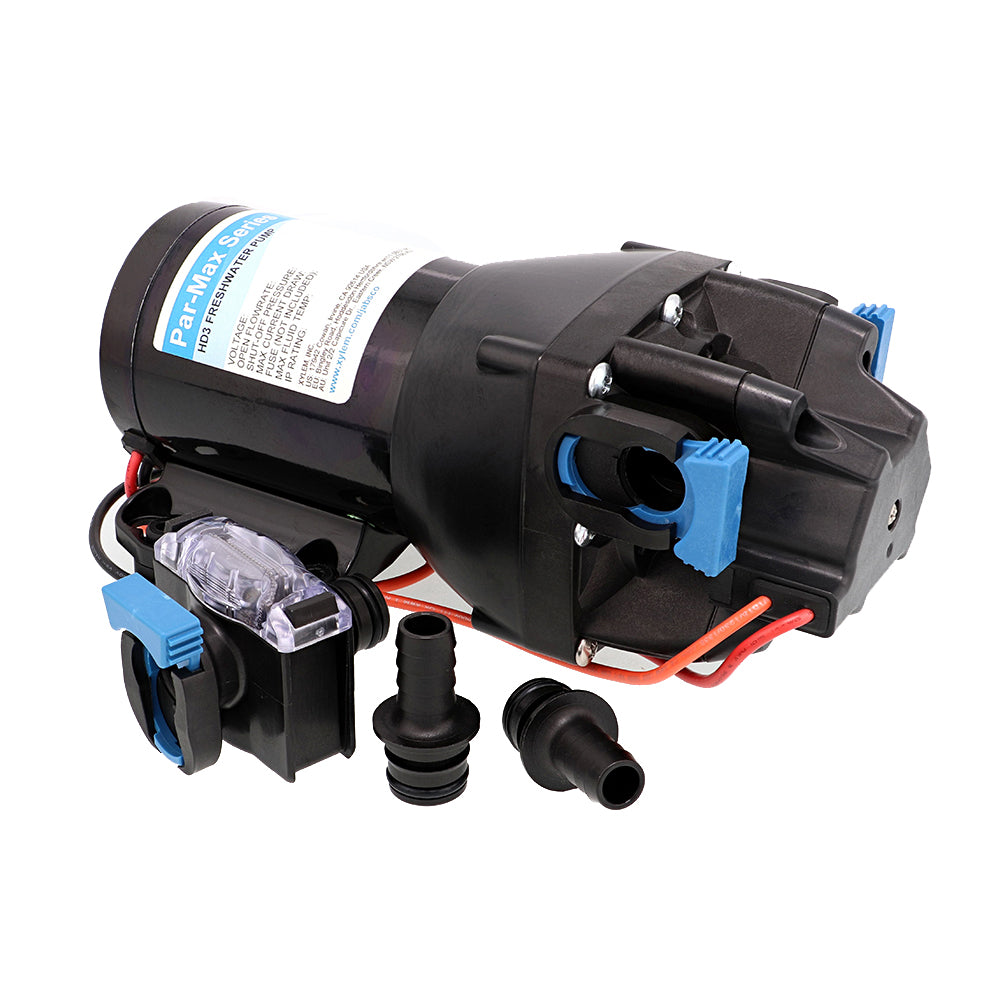

Jabsco Par-Max HD3 Heavy Duty Water Pressure Pump - 12V - 3 GPM - 60 PSI

The Jabsco Par-Max HD3 is a heavy-duty 12V water pressure pump for marine fresh-water systems that need 3 GPM flow and 60 PSI pressure. It is built for on-demand operation with an integrated sealed pressure switch and bypass module for smoother flow.

This HD model uses a wider diameter motor with a powder-coated shell, cast aluminum endbells, and a cast aluminum lower housing. It can self-prime, run dry without damage, and uses quick-connect ports for installation and service access.

• Brand: Jabsco
• Product type: Heavy-duty water pressure pump
• Model: Par-Max HD3
• Voltage: 12V
• Flow rate: 3 GPM
• Pressure: 60 PSI
• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Maximum inlet pressure: 30 PSI or 2.1 Bar
• Fluid temperature range: 32°F to 140°F or 0°C to 60°C
• Dry self-priming capability: 7 ft min or 2.13 m/min
• Certifications: CE, ISO8846, RCM
• Ingress protection: IPX6
• Features: Quick-connect ports, vibration-dampening mounting feet, integrated bypass module, and sealed pressure switch
• California Proposition 65 warning: This product can expose you to chemicals including antimony oxide.
