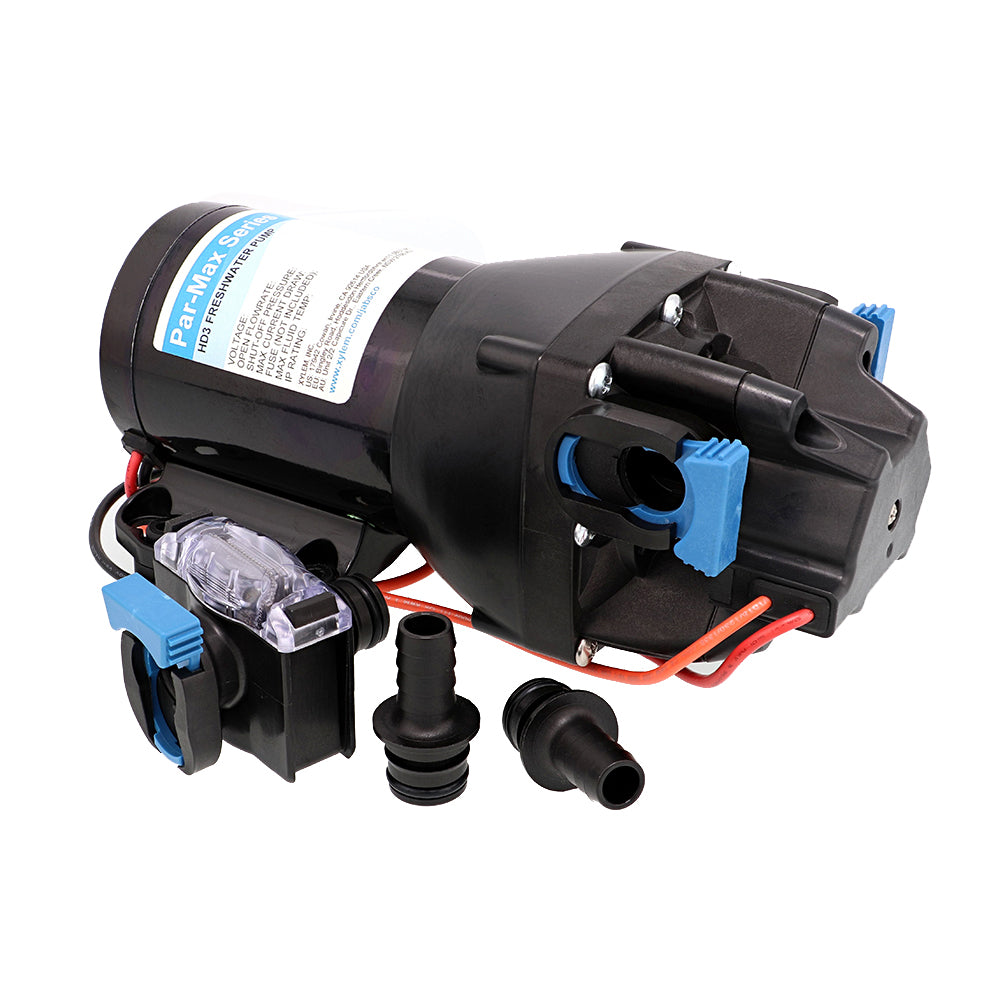

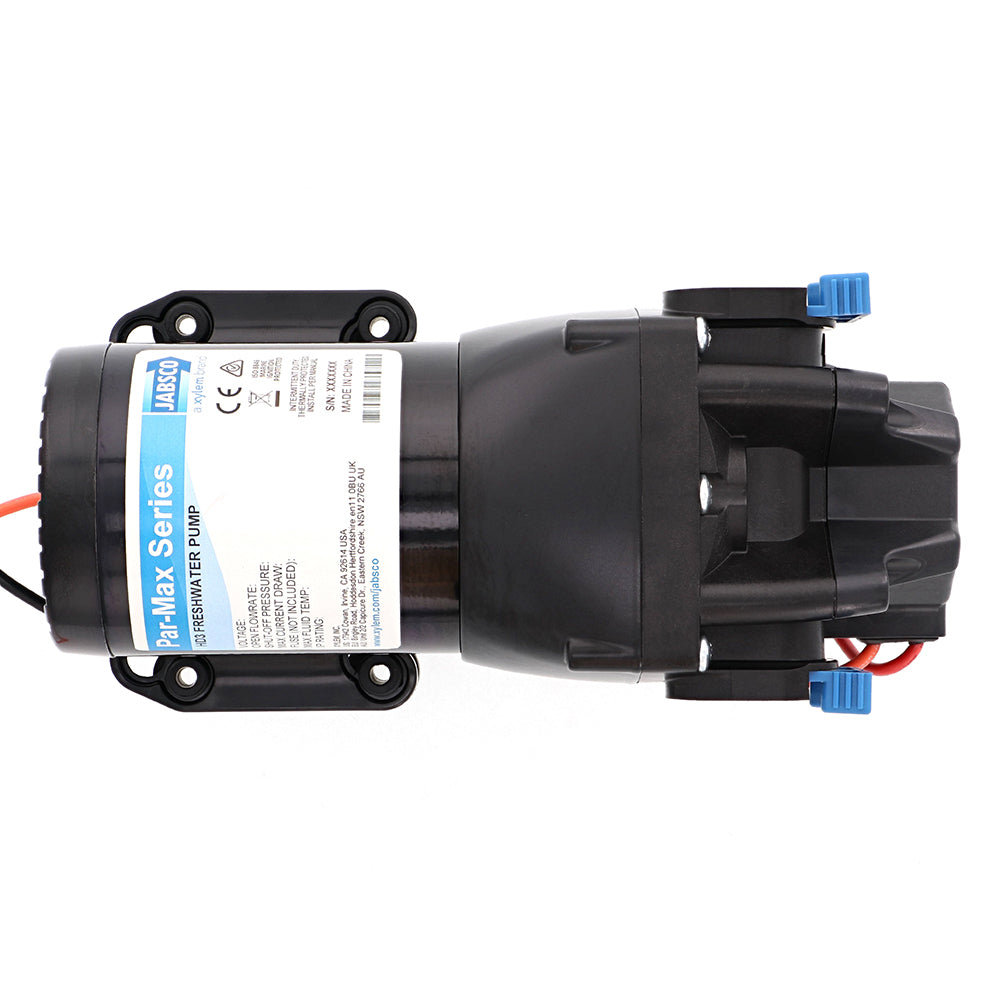

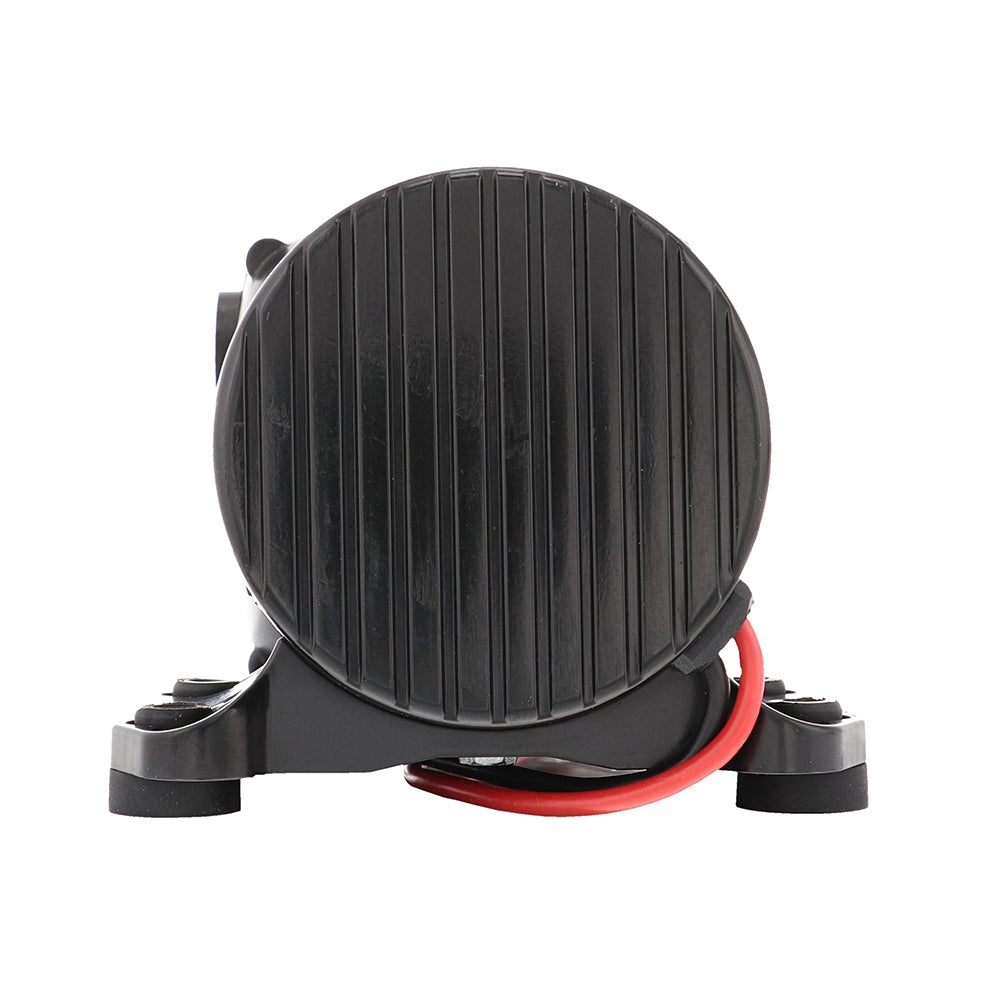

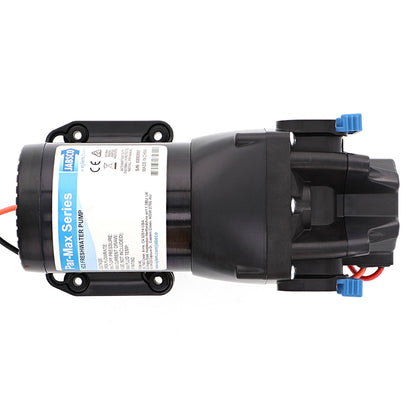

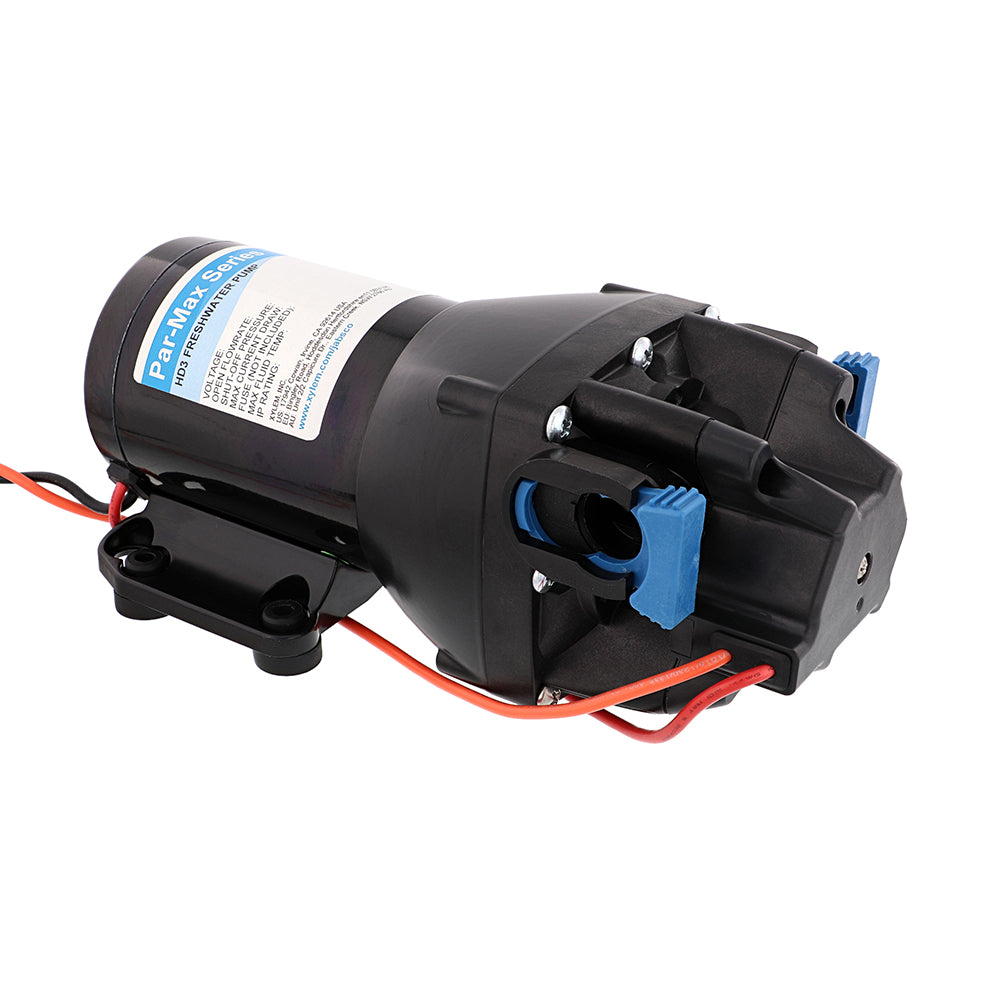

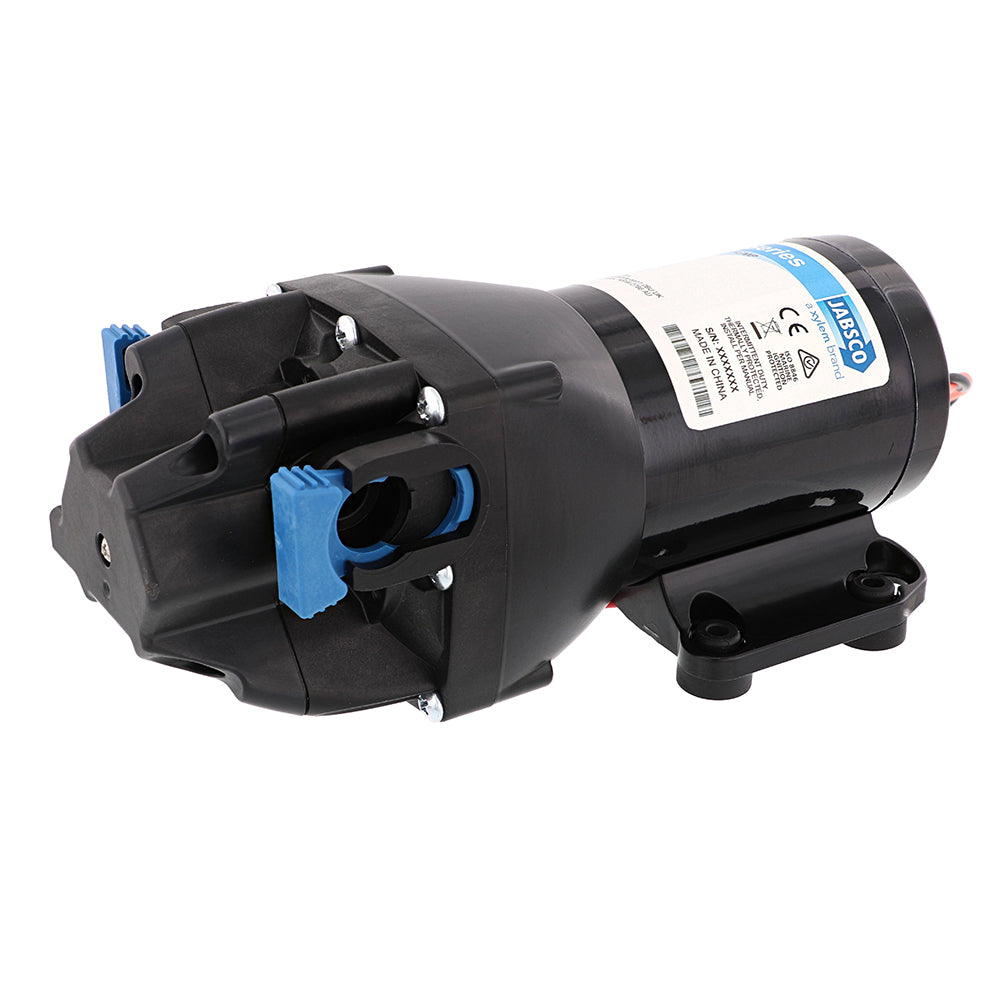

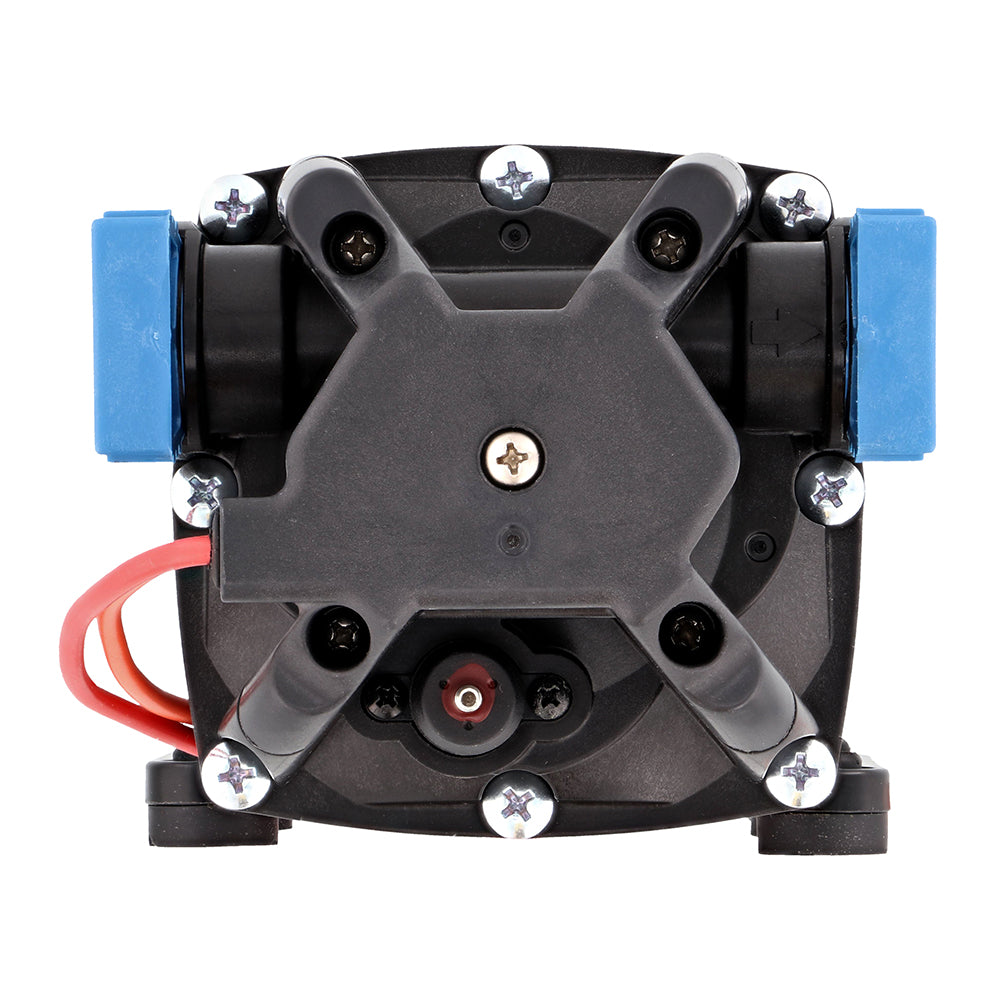

Jabsco Par-Max HD3 Heavy Duty Water Pressure Pump - 12V - 3 GPM - 40 PSI

The Jabsco Par-Max HD3 is a 12V water pressure pump for marine fresh water systems that need on-demand flow. This heavy duty model is rated for 3 GPM and 40 PSI, with construction details intended for higher pressure use and long service life.

• Voltage: 12V
• Flow rate: 3 GPM
• Pressure rating: 40 PSI
• Motor design: brushed, permanent magnet TENV
• Pumphead upper housing: glass fiber reinforced polypropylene
• Diaphragm: co-molded TPV
• Check valves: EPDM
• Maximum inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32°F to 140°F (0°C to 60°C)
• Dry self-priming capability: 7 ft min (2.13 m/min)
• Certifications: CE, ISO8846, RCM
• Ingress protection: IPX6
• Wider diameter motor with powder coated shell, cast aluminum endbells, and cast aluminum lower housing
• Integrated sealed pressure switch supports on-demand operation
• Integrated bypass module helps reduce cycling and smooth the flow
• Quick connect ports support installation, servicing, and maintenance
• Vibration dampening mounting feet
• Can run dry without damage
