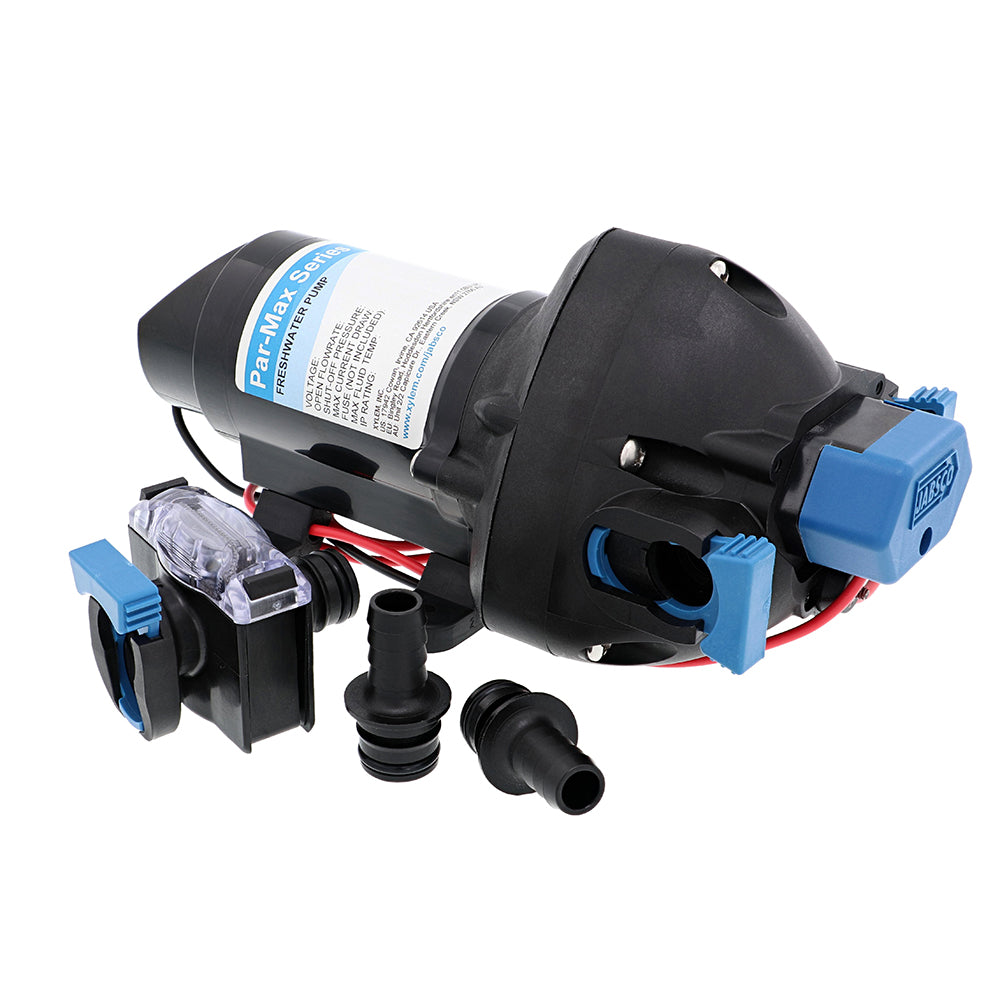

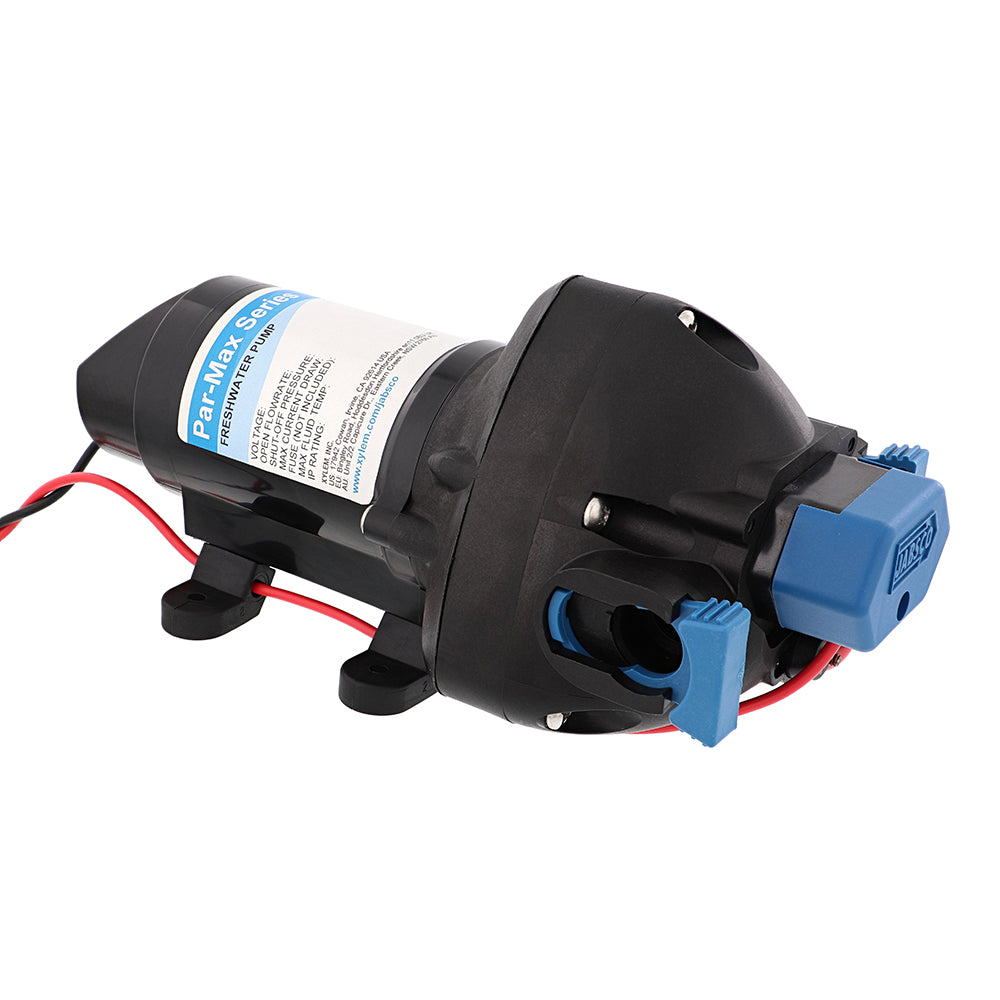

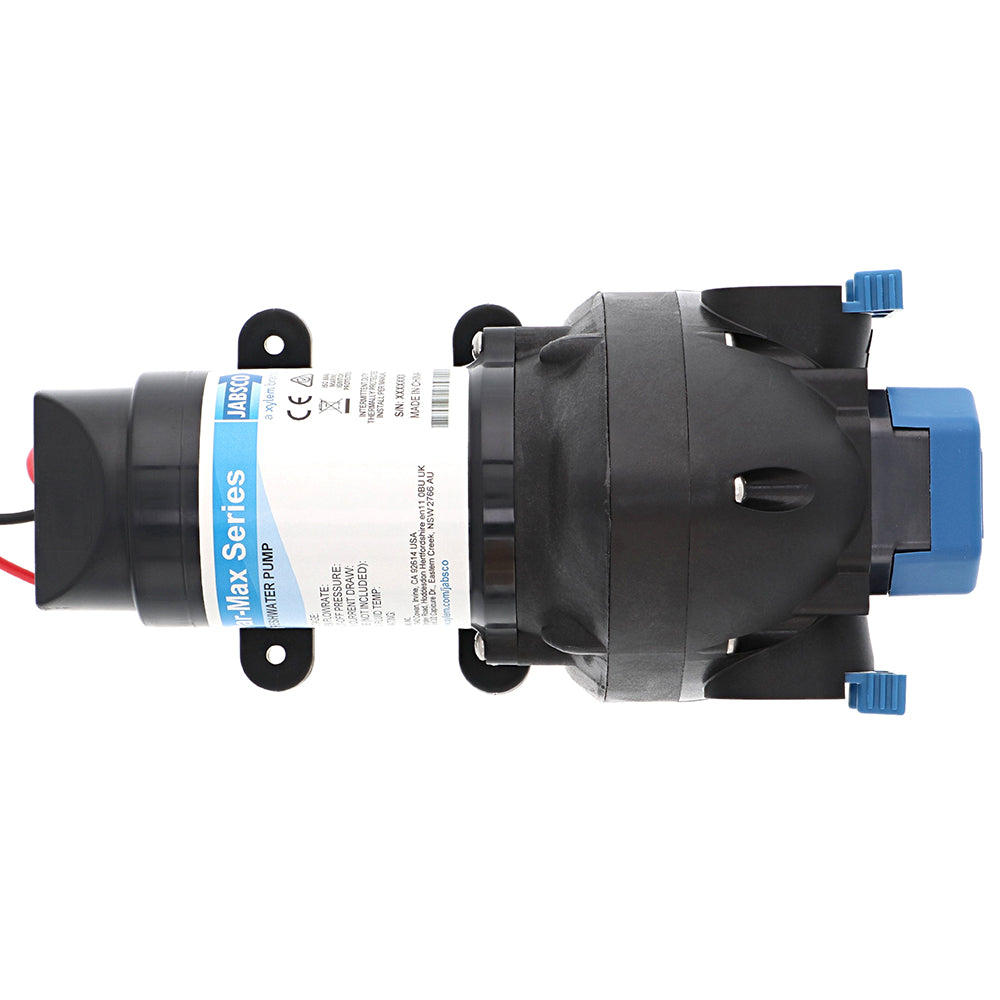

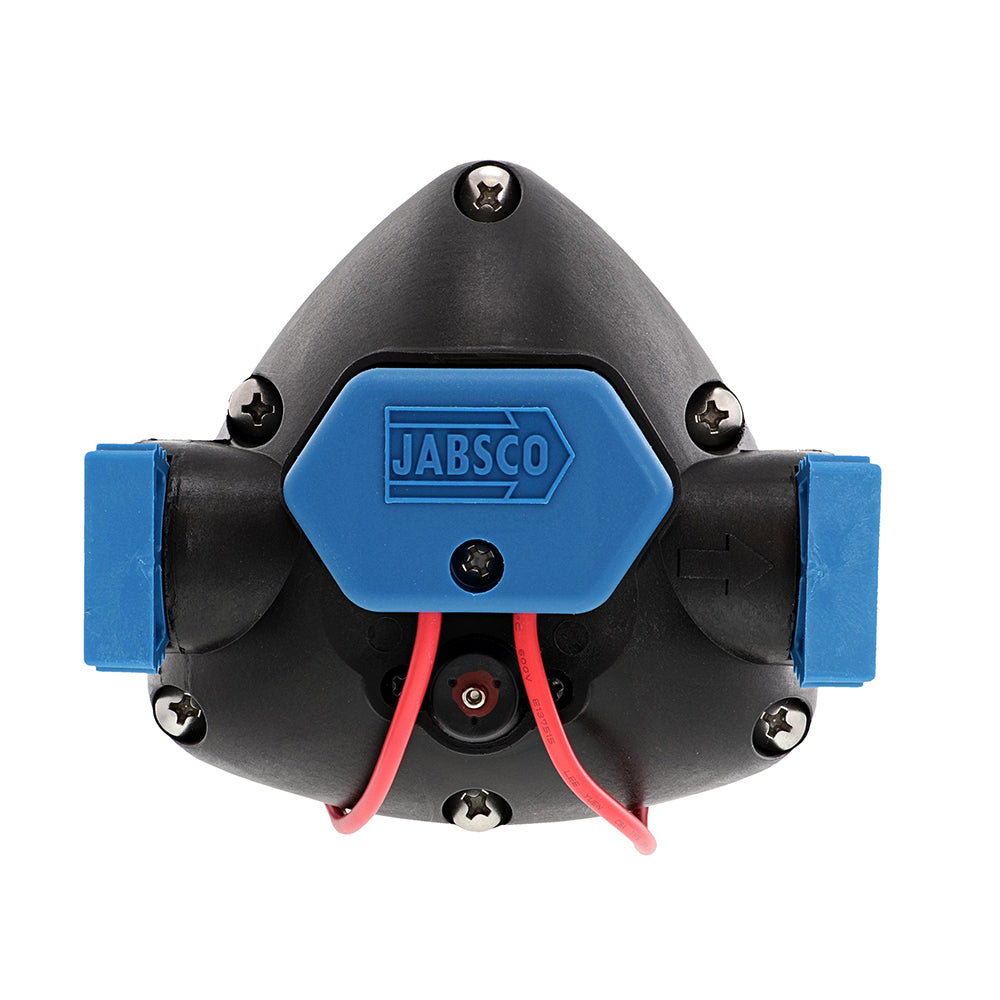

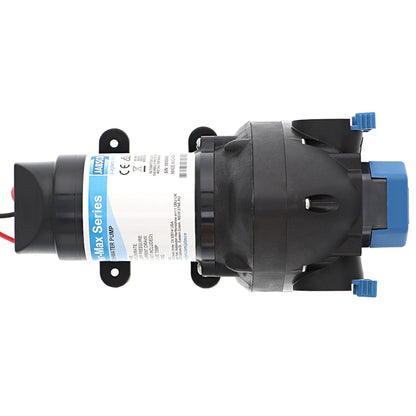

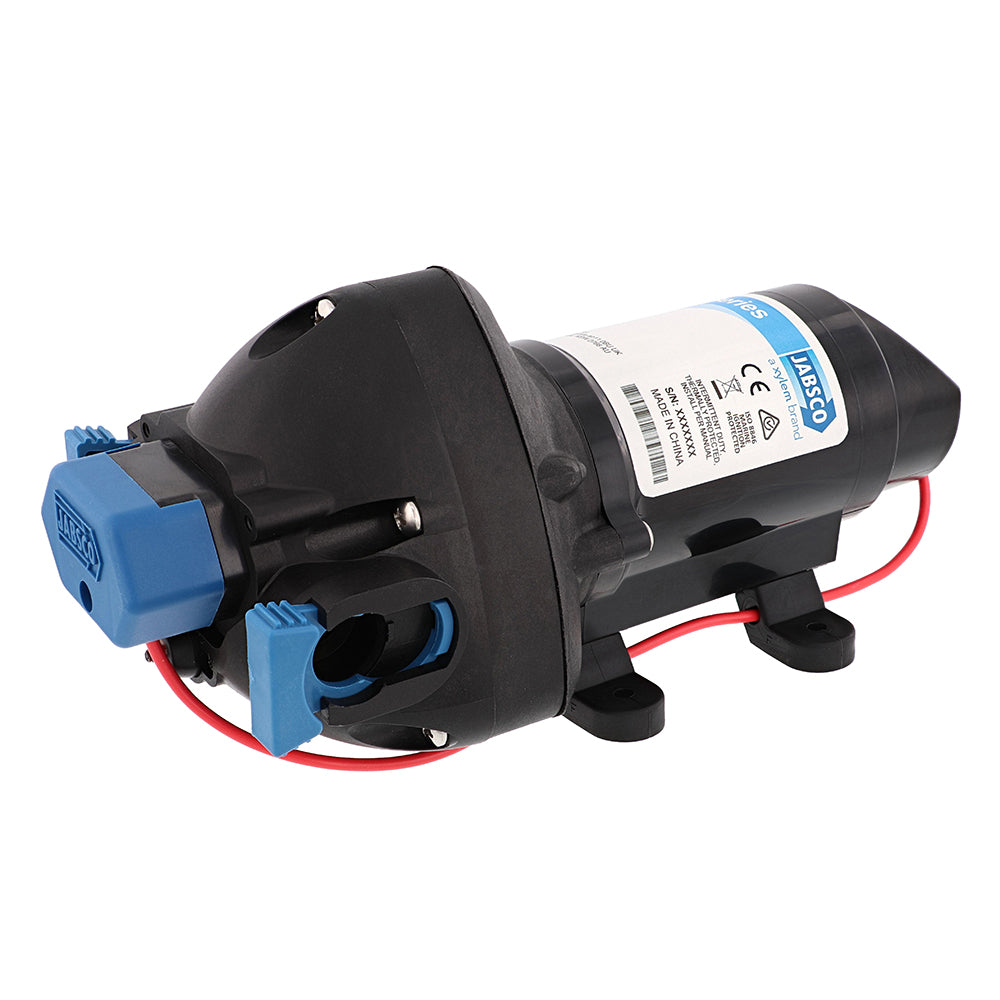

Jabsco Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 40 PSI

Jabsco Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 40 PSI

OM-JABSCO-PARMAX3-3139540243A

$157.34
$222.99 $157.34
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

24vVolts
40Max PSI
3 GPMGallons Per Minute

The Jabsco Par-Max 3 is a 24V marine water pressure pump for on-demand freshwater delivery. This version is rated for 3 GPM and 40 PSI, a configuration intended for vessels with 1 to 3 outlets.

  • Flow and pressure: 3 GPM, 40 PSI
  • Voltage: 24V
  • Motor: Brushed permanent magnet TENV design
  • Pumphead upper housing: Glass fiber reinforced polypropylene
  • Diaphragm: Co-molded TPV
  • Check valves: EPDM
  • Max inlet pressure: 30 PSI, 2.1 bar
  • Fluid temperature range: 32°F to 140°F, 0°C to 60°C
  • Dry self-priming capability: 7 ft min, 2.13 m/min
  • Operation: Integrated sealed pressure switch for on-demand use
  • Installation: Quick-connect ports and vibration-dampening mounting feet
  • Bypass: Integrated bypass module helps reduce cycling and smooth flow
  • Run-dry capability: Can run dry without damage
  • Certifications: CE, ISO8846, RCM
  • Ingress protection: IPX6

Specifications

Volts24v
Max PSI40
Gallons Per Minute3 GPM
BrandJabsco
Manufacturer part #31395-4024-3A
UPC671880841825
Boxed dimensions16 x 6 x 6 in
Shipping weight4.9 lb
Country of originCHINA
