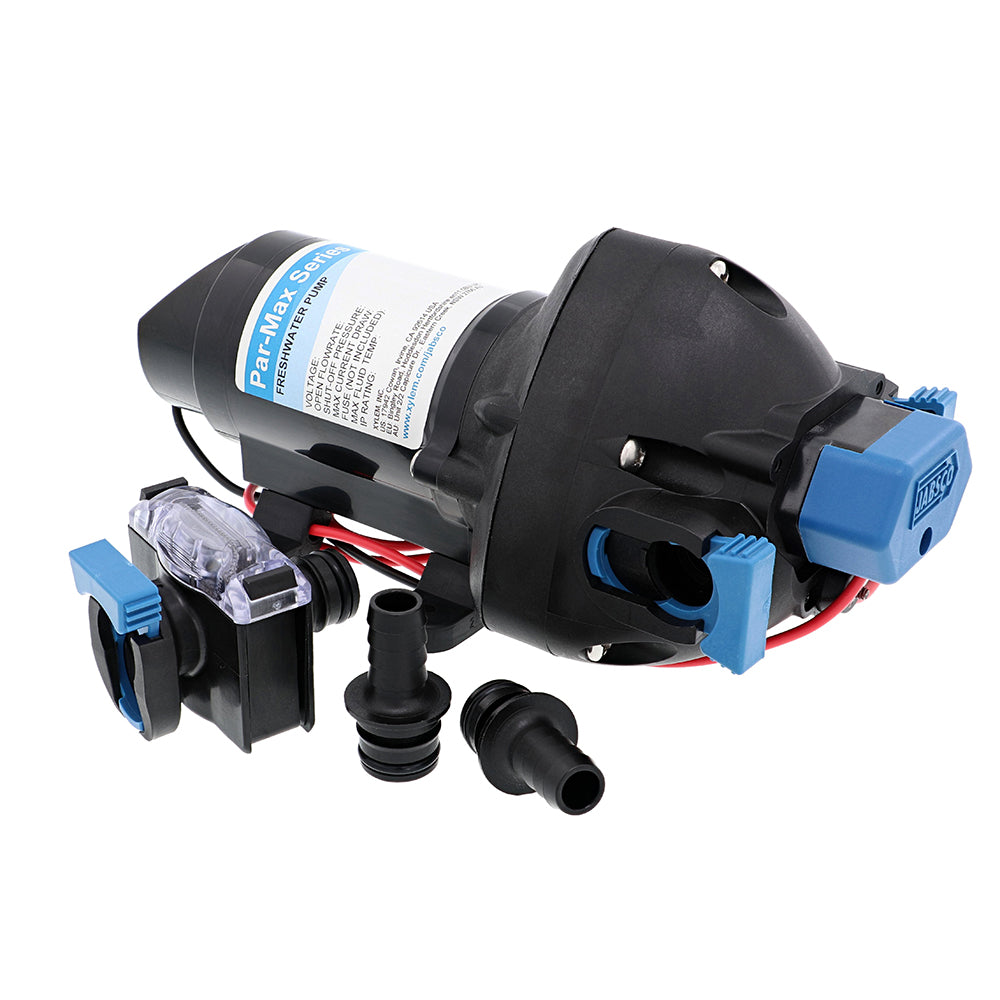

Jabsco Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 25 PSI

Jabsco Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 25 PSI

OM-JABSCO-PARMAX3-3139525243A

$207.10
$292.99 $207.10
Sale
Shipping calculated at checkout.

Low stock: 1 left
Authorized Jabsco Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

24vVolts
25Max PSI
3 GPMGallons Per Minute

The Jabsco Par-Max 3 is a 24V water pressure pump for marine freshwater systems that need on-demand flow. This model is rated for 3 GPM and 25 PSI, making it suited to vessels with 1 to 3 outlets.

  • Flow and pressure: 3 GPM, 25 PSI
  • Voltage: 24V
  • Motor: Brushed permanent magnet TENV design
  • Pumphead upper housing: Glass fiber reinforced polypropylene
  • Diaphragm: Co-molded TPV
  • Check valves: EPDM
  • Max inlet pressure: 30 PSI, 2.1 bar
  • Fluid temperature range: 32°F to 140°F, 0°C to 60°C
  • Dry self-priming capability: 7 ft min, 2.13 m/min
  • Operation: Integrated sealed pressure switch for on-demand use
  • Installation: Quick-connect ports and vibration-dampening mounting feet
  • Bypass: Integrated bypass module helps reduce cycling and smooth flow
  • Run-dry capability: Can run dry without damage
  • Certifications: CE, ISO8846, RCM
  • Ingress protection: IPX6

Specifications

Volts24v
Max PSI25
Gallons Per Minute3 GPM
BrandJabsco
Manufacturer part #31395-2524-3A
UPC671880841795
Boxed dimensions15 x 6 x 5 in
Shipping weight4.45 lb
Country of originCHINA
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Manuals & documents

Product brochurePDF ↓
