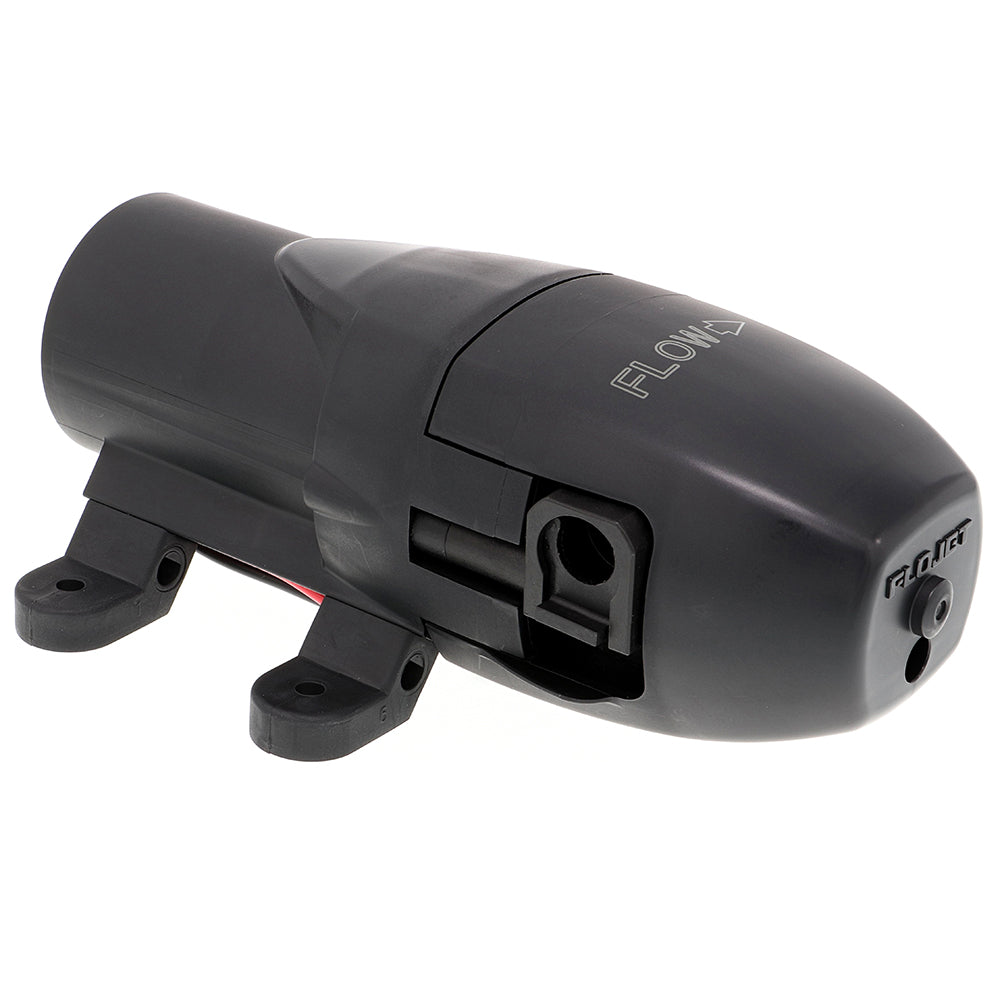

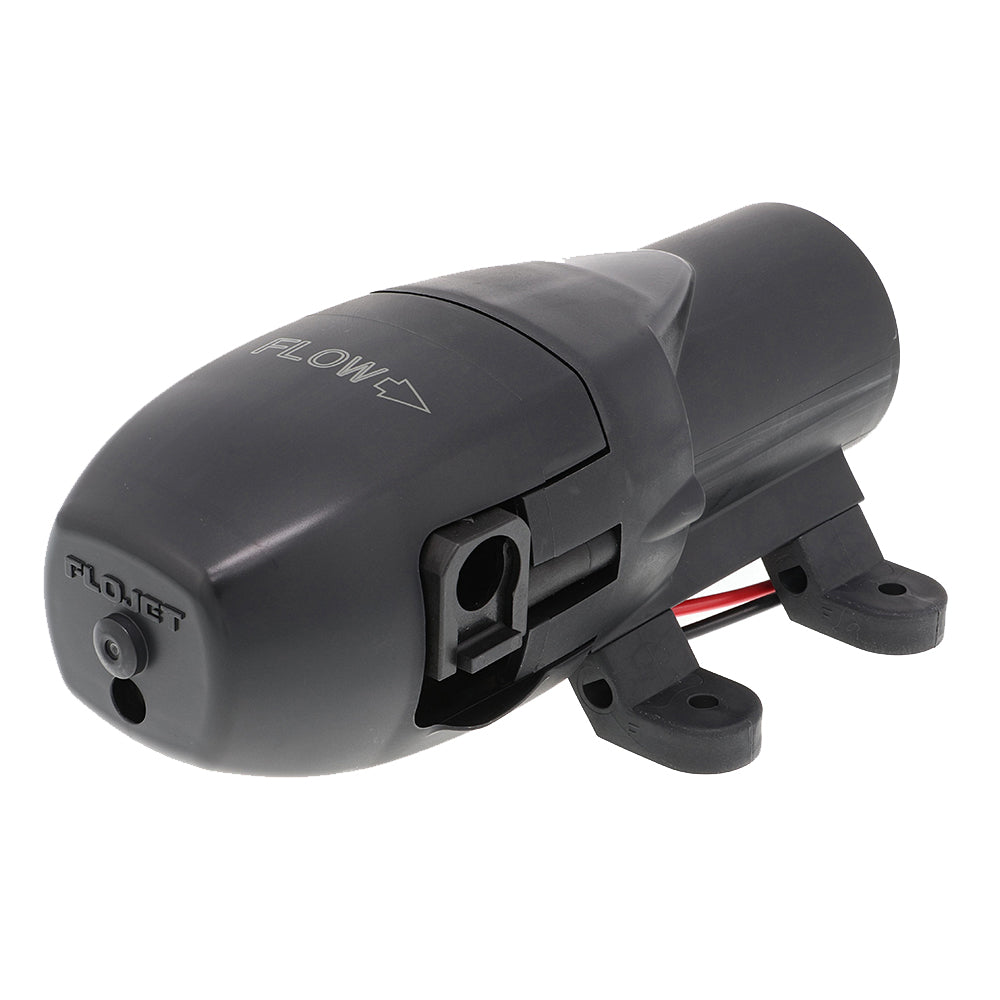

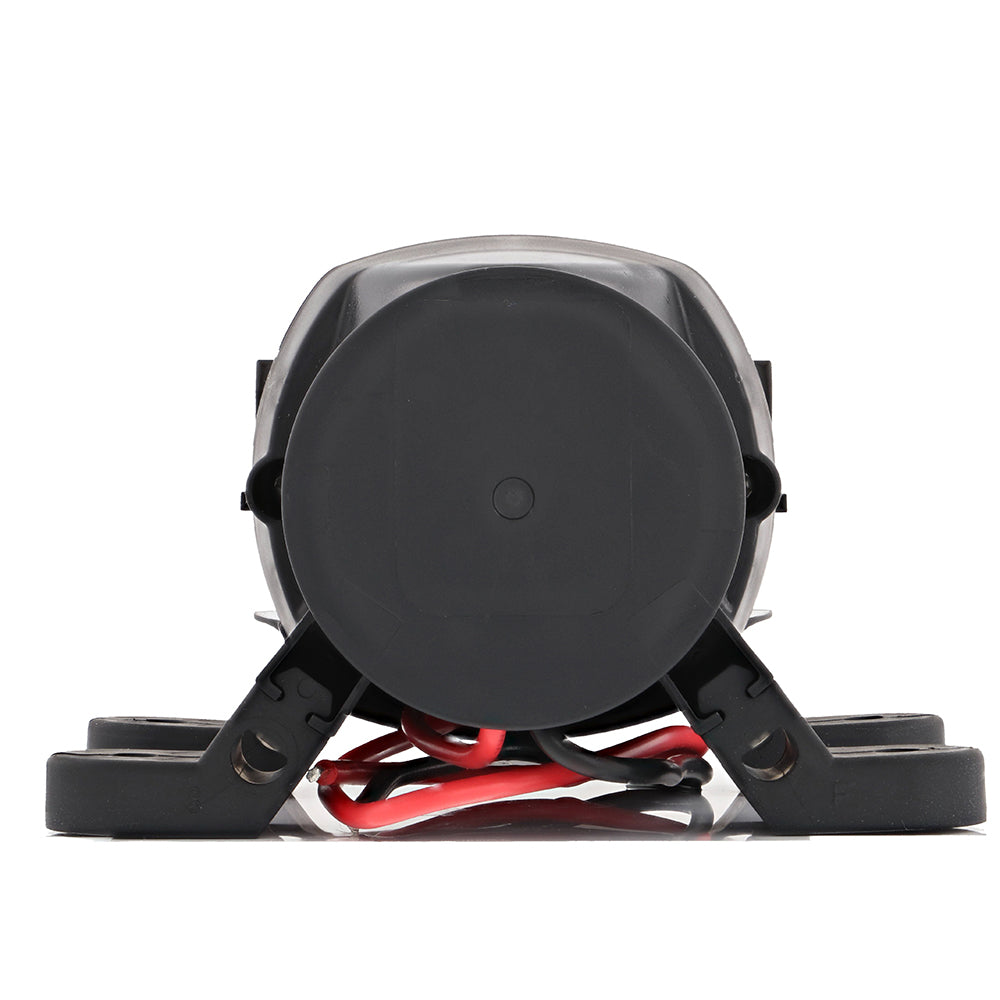

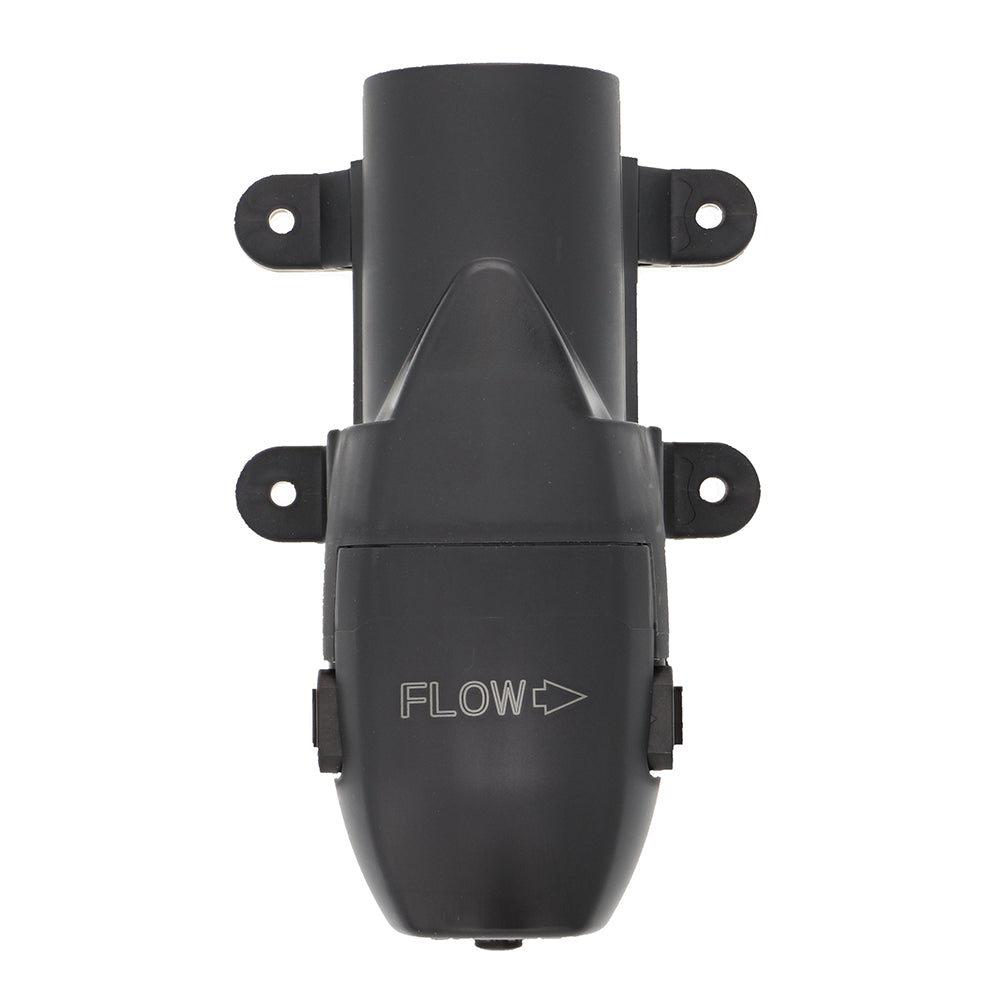

Jabsco Par-Max 1 Water Pressure Pump - 12V - 1 GPM - 35 PSI

Jabsco Par-Max 1 Water Pressure Pump - 12V - 1 GPM - 35 PSI

OM-JABSCO-PARMAX1-4263035123C

$128.38
$177.99 $128.38
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 2 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

12vVolts
35Max PSI
1 GPMGallons Per Minute

The Jabsco Par-Max 1 is a compact 12V water pressure pump for small vessel plumbing systems. It provides on-demand flow rated at 1 GPM and 35 PSI, with self-priming capability and a sealed pressure switch built into the pump.

  • Voltage: 12V
  • Flow rating: 1 GPM
  • Pressure rating: 35 PSI
  • Motor: Brushed, permanent magnet TENV design
  • Pumphead upper housing: Glass fiber reinforced polypropylene
  • Diaphragm: Co-molded TPV
  • Check valves: EPDM
  • Maximum inlet pressure: 30 PSI (2.1 Bar)
  • Fluid temperature range: 32 degrees F to 140 degrees F (0 degrees C to 60 degrees C)
  • Dry self-priming capability: 7 ft minimum (2.13 m/min)
  • Installation features: Quick connect ports and vibration dampening mounting feet
  • Operation: Can run dry without damage and uses an integrated bypass module to reduce cycling
  • Ingress protection: IPX6
  • Certifications: CE, ISO8846 and RCM

Specifications

Volts12v
Max PSI35
Gallons Per Minute1 GPM
BrandJabsco
Manufacturer part #42630-3512-3C
UPC671880841757
Boxed dimensions6 x 6 x 2 in
Shipping weight2.2 lb
Country of originCHINA
