• Jabsco Low Pressure Cyclone Centrifugal Pump - 24V
1 1

Jabsco

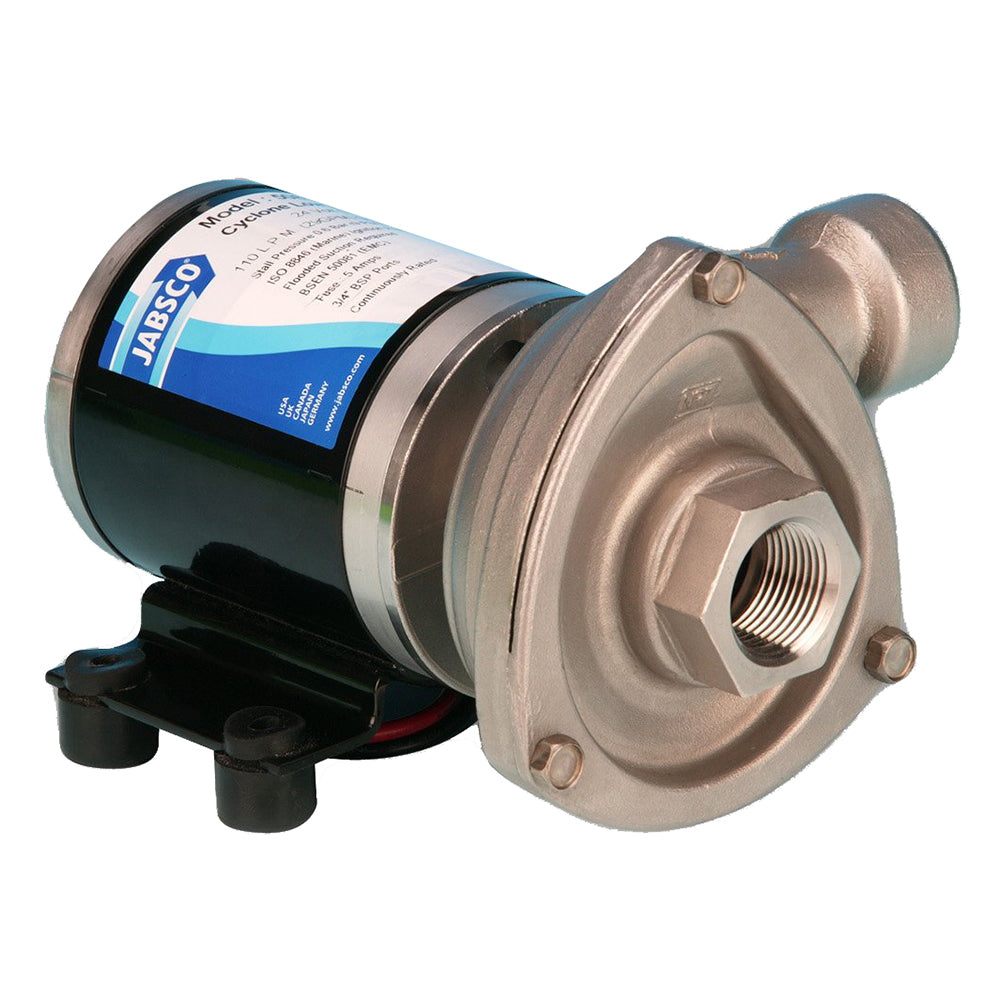

Jabsco Low Pressure Cyclone Centrifugal Pump - 24V

Jabsco Low Pressure Cyclone Centrifugal Pump - 24V

OM-JABSCO-LOWPRESSURECYC-508400024

$429.65
$646.99 $429.65
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

29.7 GPMGallons Per Minute
8.7Max PSI
24vVolts

The Jabsco Low Pressure Cyclone Centrifugal Pump is a 24V stainless steel pump for marine and industrial circulation work. It is suited to applications such as hot water systems, livewell installations, and bait tank setups where low-pressure water movement is needed.

  • Voltage: 24V
  • Pump body: Stainless steel
  • Port size: 3/4" pipe threads, available with NPTF threads
  • Flow: 110 liters/minute (29.7 gallons/min.)
  • Pressure: Up to 0.6 bar (8.7 psi)
  • Suction lift: 2m (6 foot) when wet
  • Impeller: Stainless steel anti-clog impeller design
  • Shaft seal: Mechanical
  • Maximum current: 4.5 Amp
  • Fuse size: 7 Amp
  • Motor: Continuously rated DC motor
  • Motor life: 3500 hours
  • Service: Single tool servicing
  • Standards: ISO 8846 Marine and USCG Regulations for Ignition Protection
  • Standard: ISO 8849 Marine Bilge Pump Standard
  • California warning: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications

Gallons Per Minute29.7 GPM
Max PSI8.7
Volts24v
BrandJabsco
Manufacturer part #50840-0024
UPC671880579384
Boxed dimensions12 x 6 x 5 in
Shipping weight7.2 lb
Country of originMEXICO
