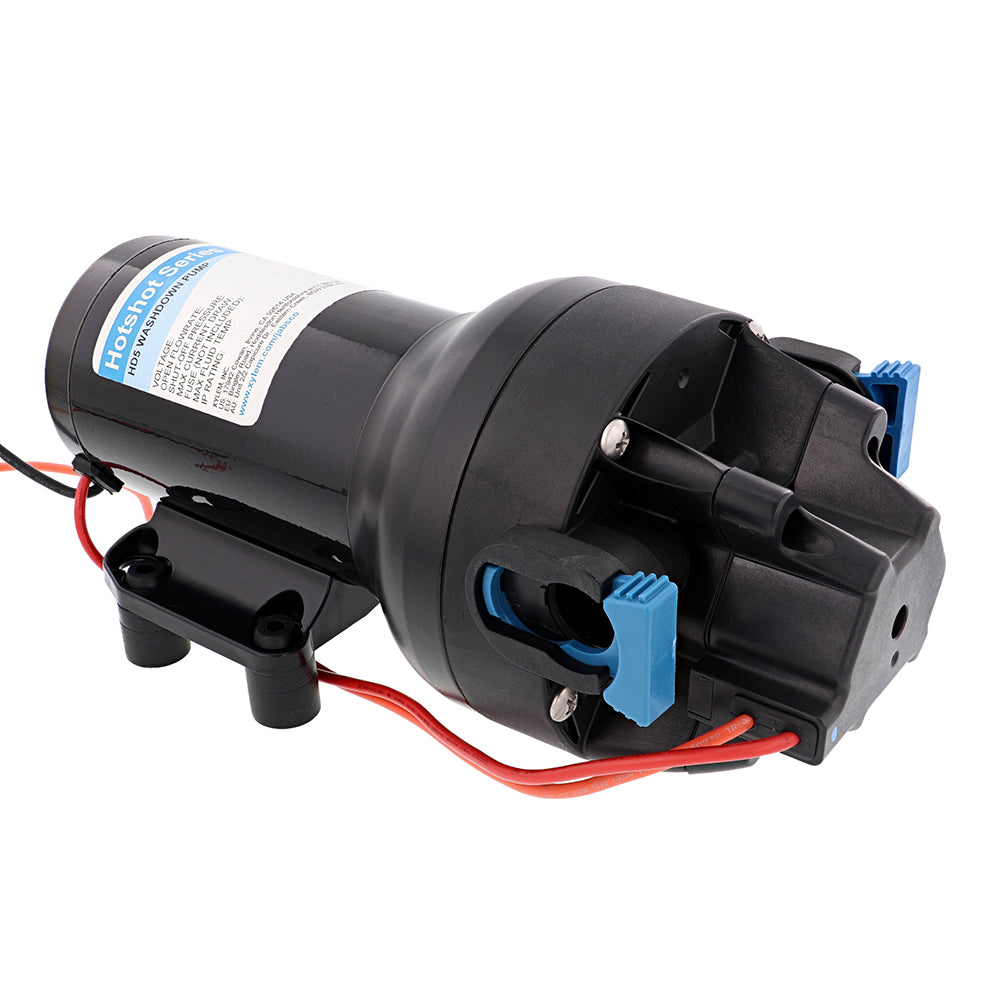

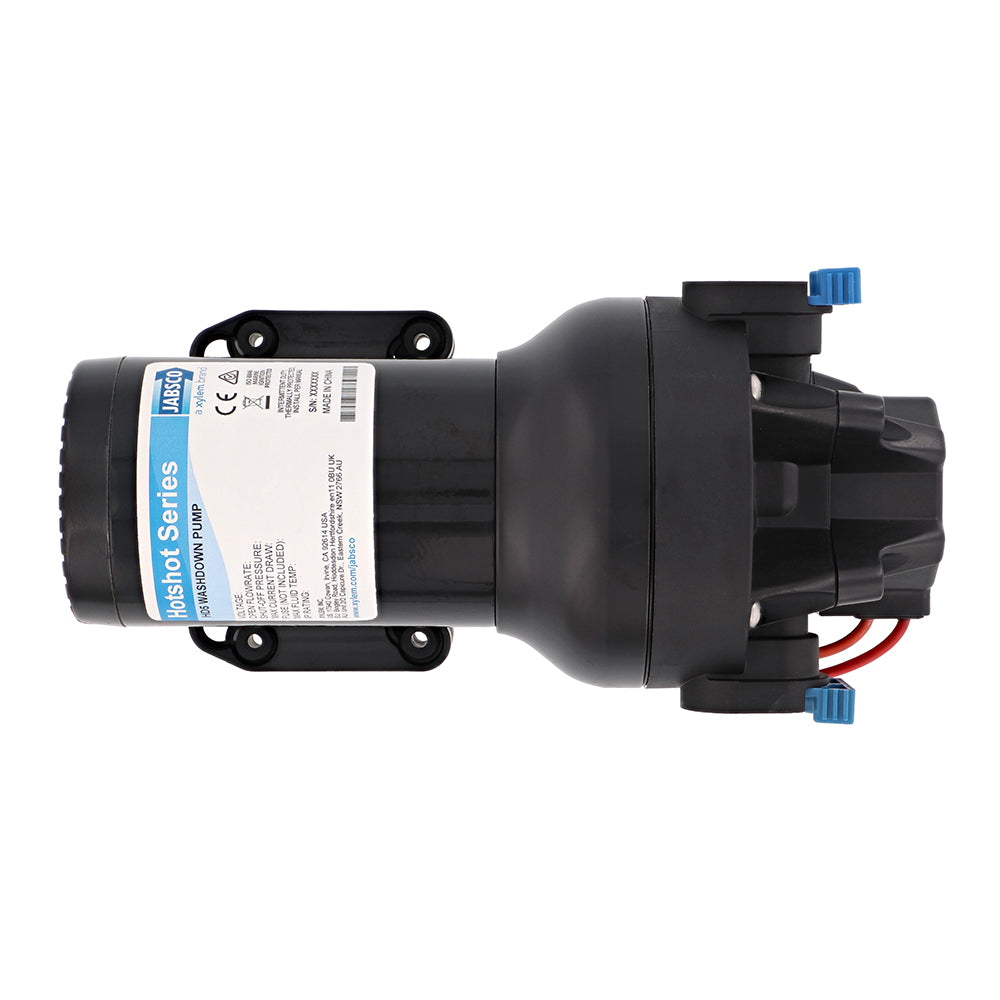

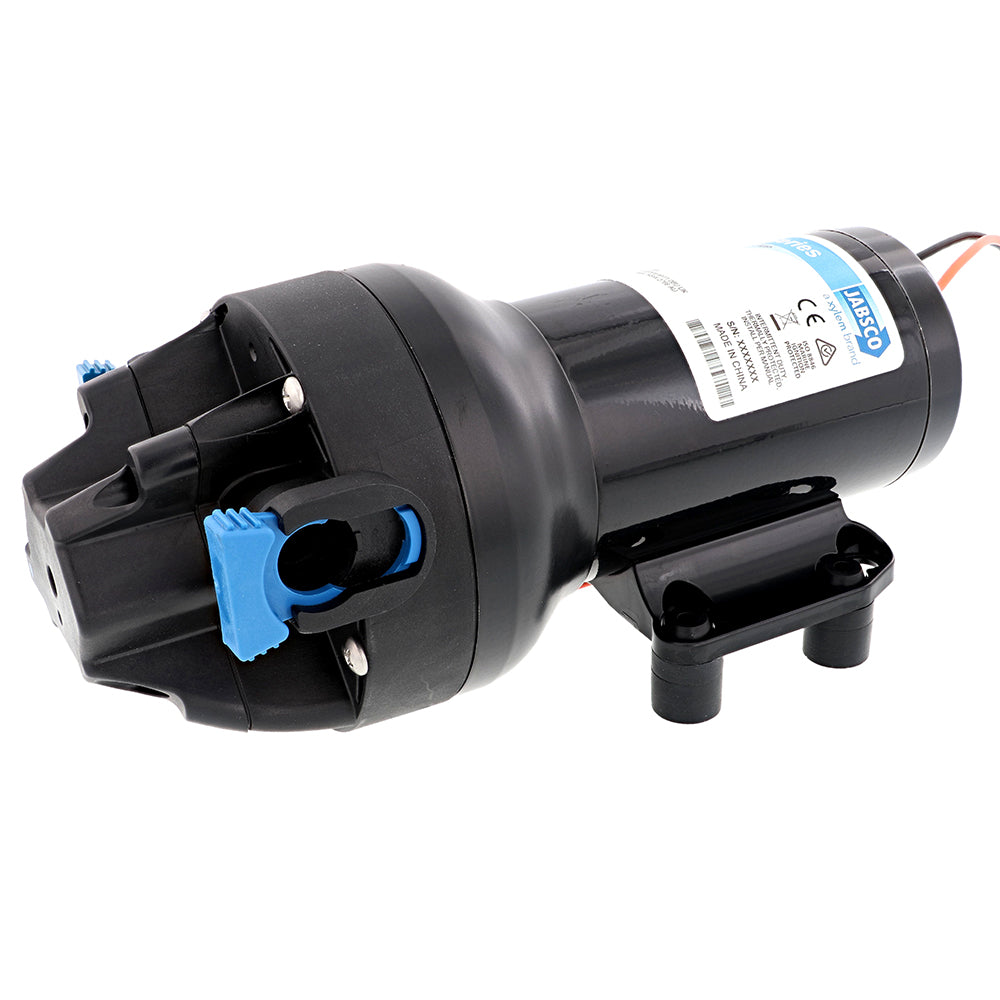

Jabsco HotShot HD5 Heavy Duty Washdown Pump - 12V - 5 GPM - 70 PSI

The Jabsco HotShot HD5 is a heavy-duty washdown pump for boats that need on-demand deck rinsing from a diaphragm pump. This 12V model delivers 5 GPM at 70 PSI and uses Heavy Duty construction with a wider diameter motor, powder coated shell, cast aluminum endbells and a cast aluminum lower housing.

It is self-priming, can run dry without damage and uses quick-connect ports to simplify installation, servicing and maintenance. The sealed pressure switch supports on-demand operation, while vibration-dampening mounting feet help control movement during use.

• Product type: Heavy duty washdown pump
• Voltage: 12V
• Flow rate: 5 GPM
• Pressure: 70 PSI
• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Maximum inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32°F-140°F (0°C-60°C)
• Dry self-priming capability: 7 ft min (2.1 m min)
• Ingress protection: IPX6
• Certifications: CE, ISO8846, RCM

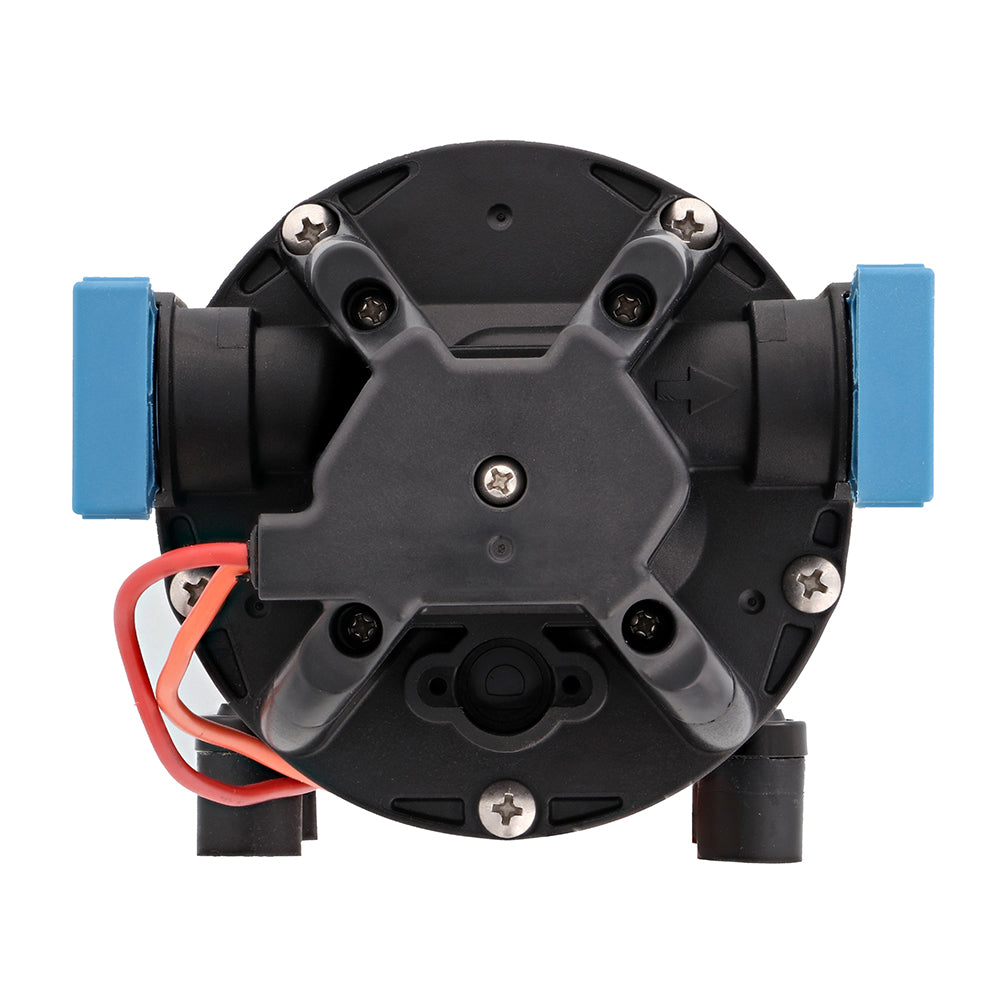

• Ports: Quick connect ports

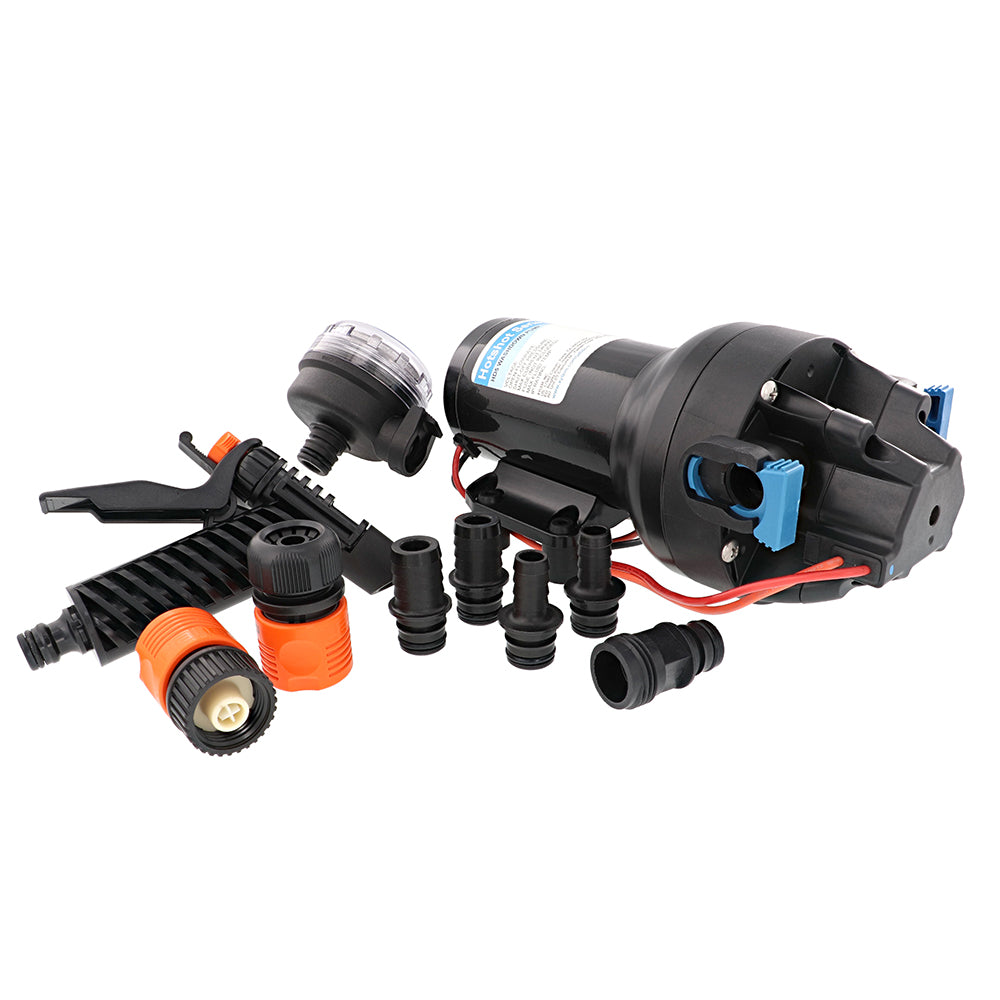

• Included fittings and accessories: Quick Connect straight hosebarb and GHT fittings, 90° 20 mesh Quick Connect strainer, trigger nozzle and Quick Connect hose adapters
• Kit note: Full kit versions available with 25' (7.6 m) hose coil; no kit versions with hose offered
• Warning: This product can expose you to chemicals including antimony oxide (antimony trioxide), known to the State of California to cause cancer
