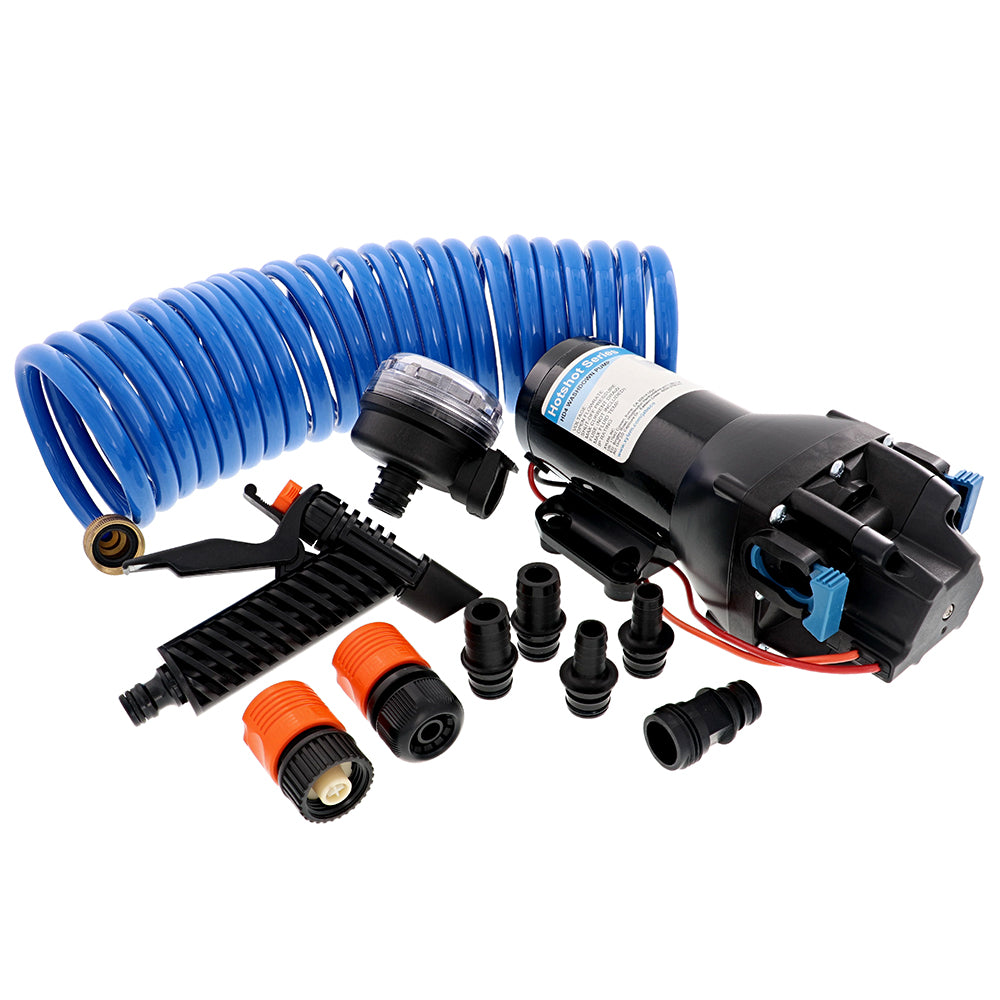

Jabsco HotShot HD4 Heavy Duty Washdown Pump w/25' HoseCoil - 12V - 4 GPM - 60 PSI

The Jabsco HotShot HD4 is a heavy-duty 12V washdown pump kit for marine deck cleaning and hose-based washdown setups. It delivers 4 GPM at 60 PSI and includes a 25' HoseCoil for a complete washdown installation.

This HD model uses a wider motor, cast aluminum lower housing, and quick-connect fittings for a durable, serviceable pump package.

• Voltage: 12V
• Flow rate: 4 GPM
• Pressure: 60 PSI
• Included hose: 25' HoseCoil
• Pump type: High-flow, high-pressure diaphragm washdown pump
• Motor design: Brushed, permanent magnet TENV
• HD construction: Wider diameter motor, powder coated shell, cast aluminum endbells, and cast aluminum lower housing
• Pumphead upper housing: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Maximum inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32°F to 140°F (0°C to 60°C)
• Dry self-priming capability: 7ft min (2.1m min)
• Operation: Integrated sealed pressure switch for on-demand use
• Installation: Self-priming design, quick-connect ports, and vibration dampening mounting feet
• Dry run: Can run dry without damage
• Ingress protection: IPX6
• Certifications: CE, ISO8846, RCM
• Accessories: Quick Connect straight hosebarb and GHT fittings, 90° 20 mesh Quick Connect strainer, trigger nozzle, and Quick Connect hose adapters
