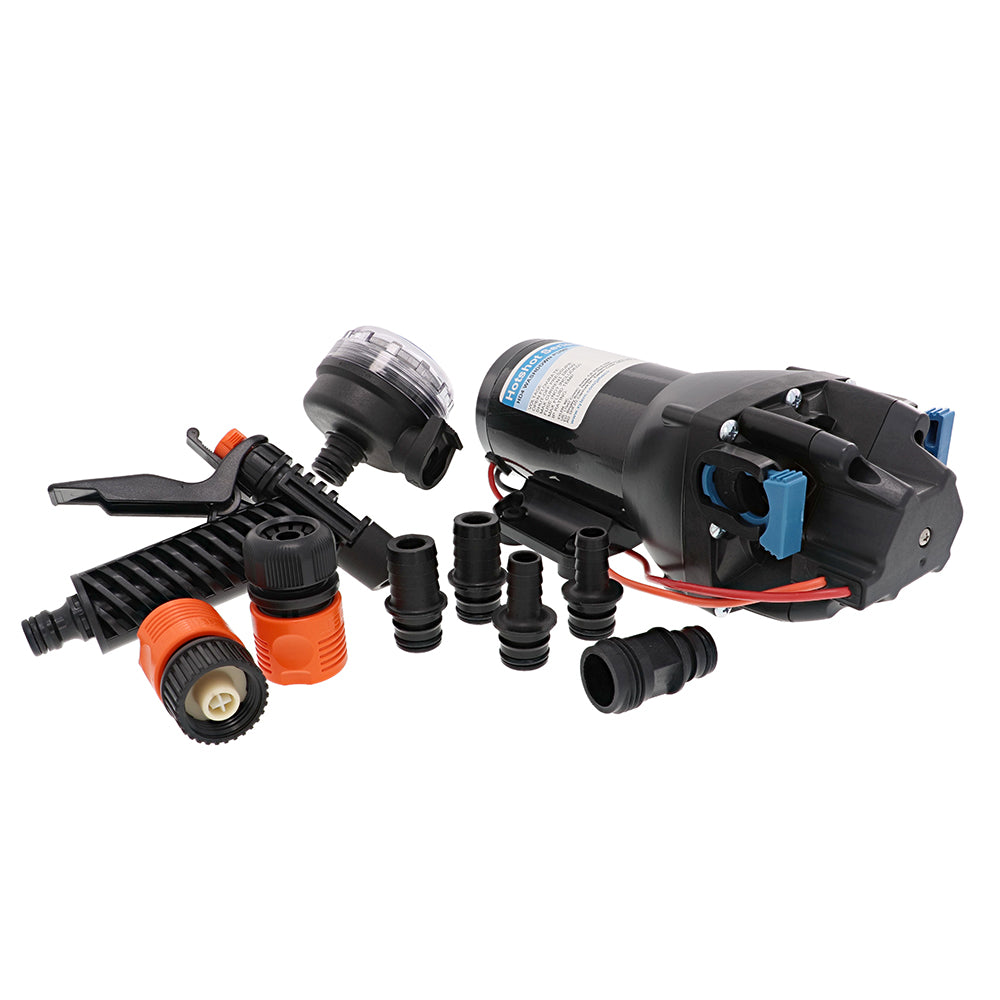

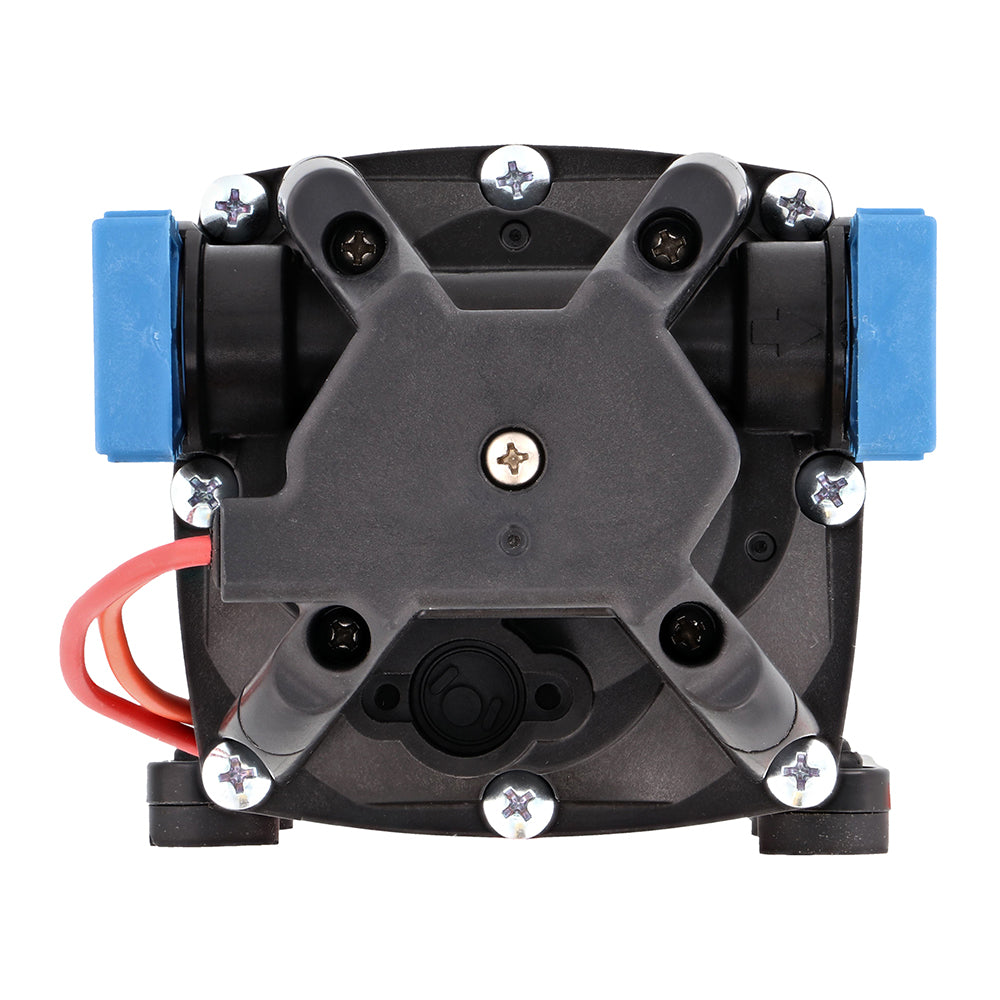

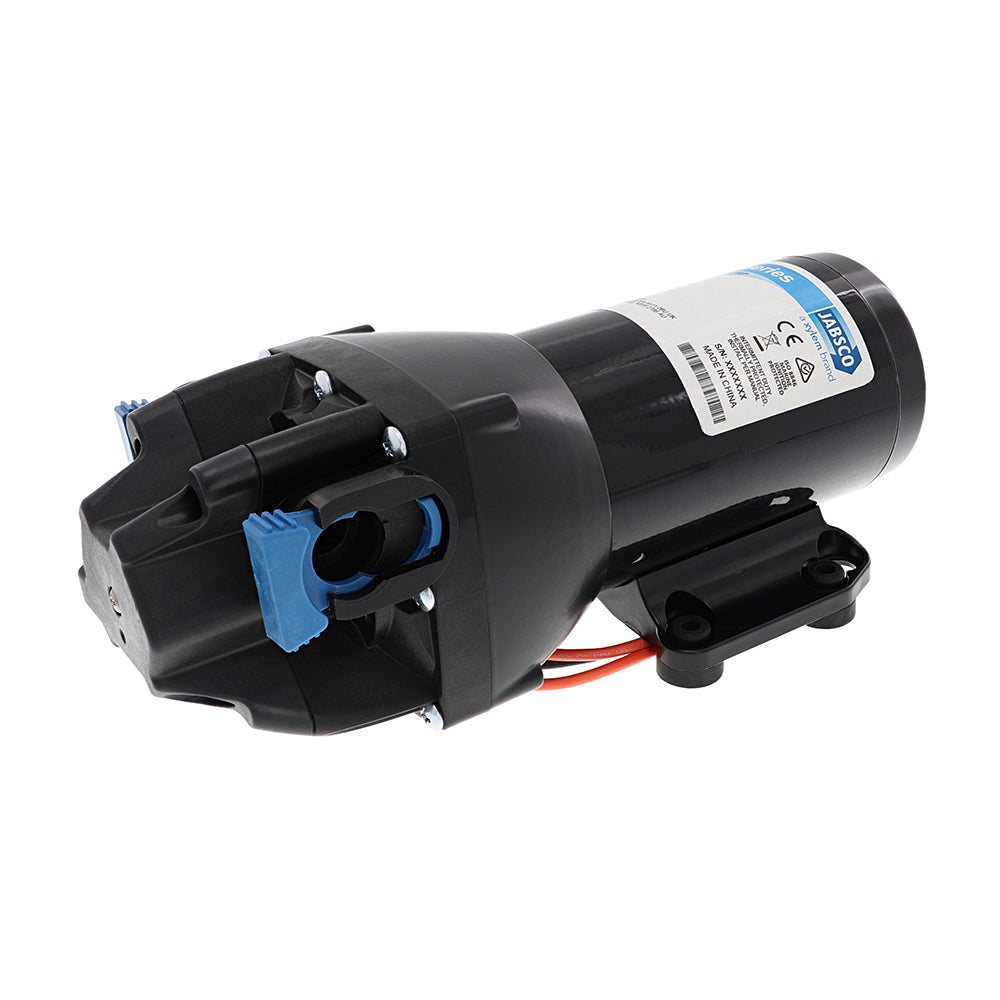

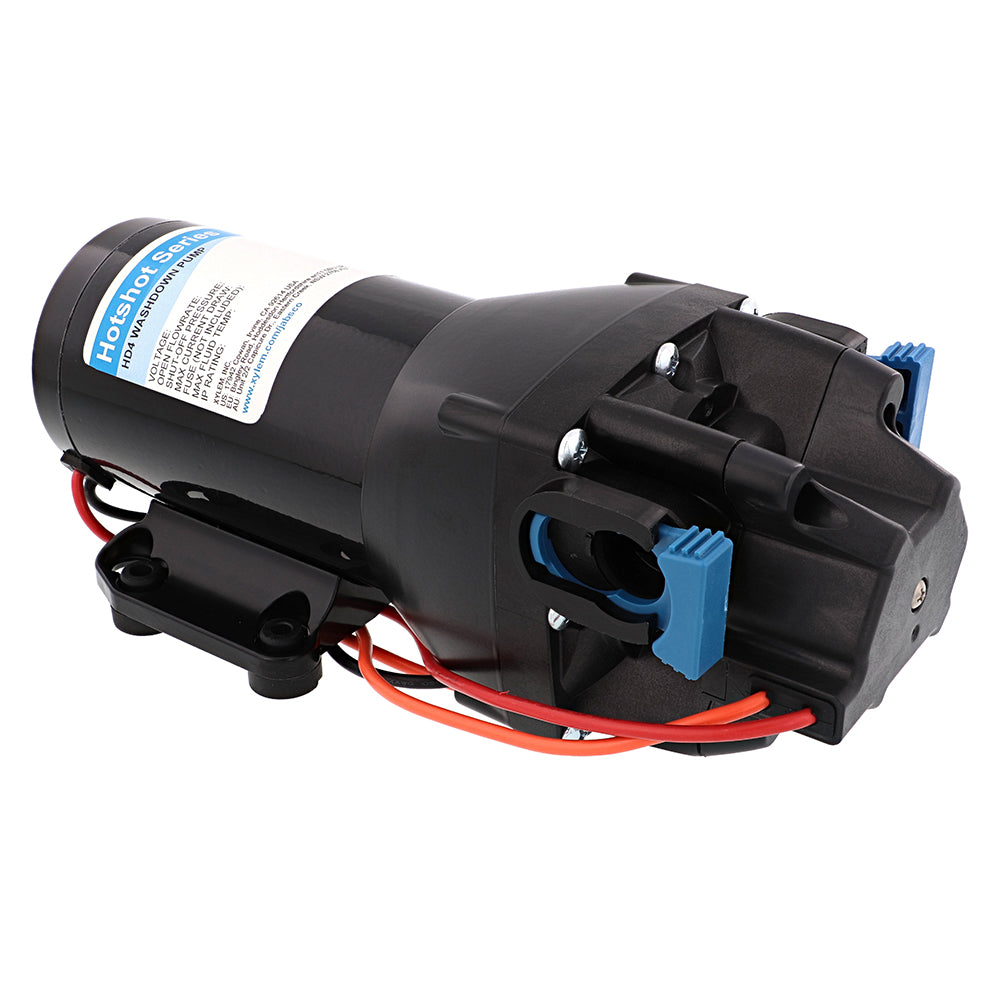

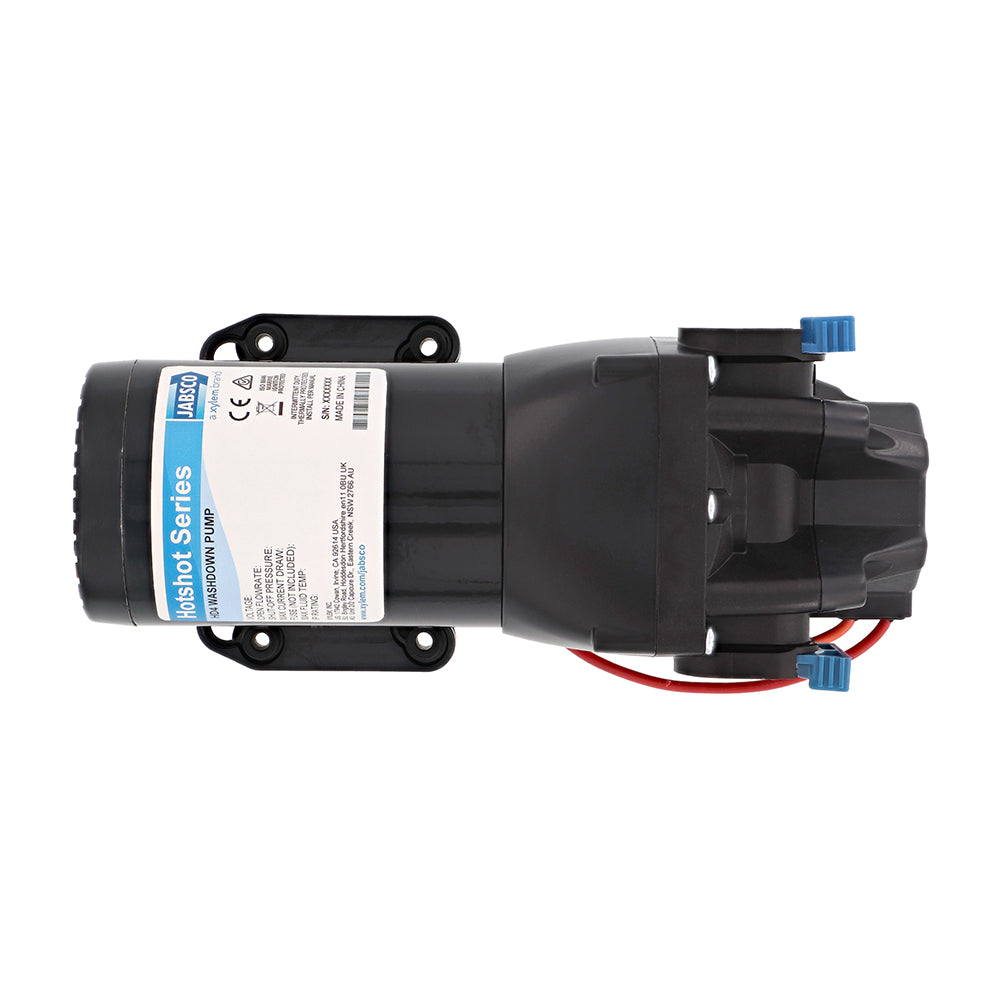

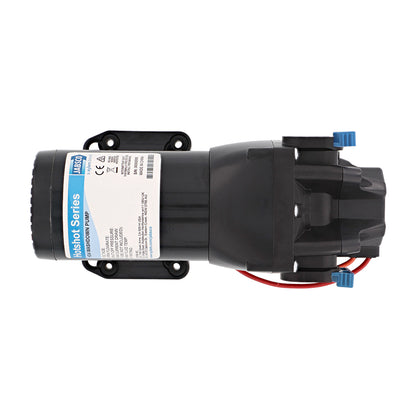

Jabsco HotShot HD4 Heavy Duty Washdown Pump - 24V - 4 GPM - 60 PSI

Jabsco HotShot HD4 Heavy Duty Washdown Pump - 24V - 4 GPM - 60 PSI

OM-JABSCO-HOTSHOTHD4HEAV-Q402J118N3A

$224.44
$327.99 $224.44
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

24vVolts
60Max PSI
4 GPMGallons Per Minute

The Jabsco HotShot HD4 is a 24V washdown pump for boats that need on-demand deck rinsing with a 4 GPM flow rate and 60 PSI pressure. This heavy duty model uses a larger motor format and cast aluminum components for use in higher-pressure washdown applications.

  • Voltage: 24V
  • Flow rate: 4 GPM
  • Pressure: 60 PSI
  • Motor design: brushed, permanent magnet TENV
  • Pumphead upper housing: glass fiber reinforced polypropylene
  • Diaphragm: co-molded TPV
  • Check valves: EPDM
  • Maximum inlet pressure: 30 PSI (2.1 Bar)
  • Fluid temperature range: 32°F to 140°F (0°C to 60°C)
  • Dry self-priming capability: 7 ft minimum (2.1 m minimum)
  • Certifications: CE, ISO8846, RCM
  • Ingress protection: IPX6
  • Features: sealed pressure switch, dry-run capability, quick connect ports, vibration dampening mounting feet, and quiet operation
  • HD construction: powder coated motor shell with cast aluminum endbells and lower housing

Specifications

Volts24v
Max PSI60
Gallons Per Minute4 GPM
BrandJabsco
Manufacturer part #Q402J-118N-3A
UPC671880841931
Boxed dimensions18 x 9 x 6 in
Shipping weight8.85 lb
Country of originCHINA
