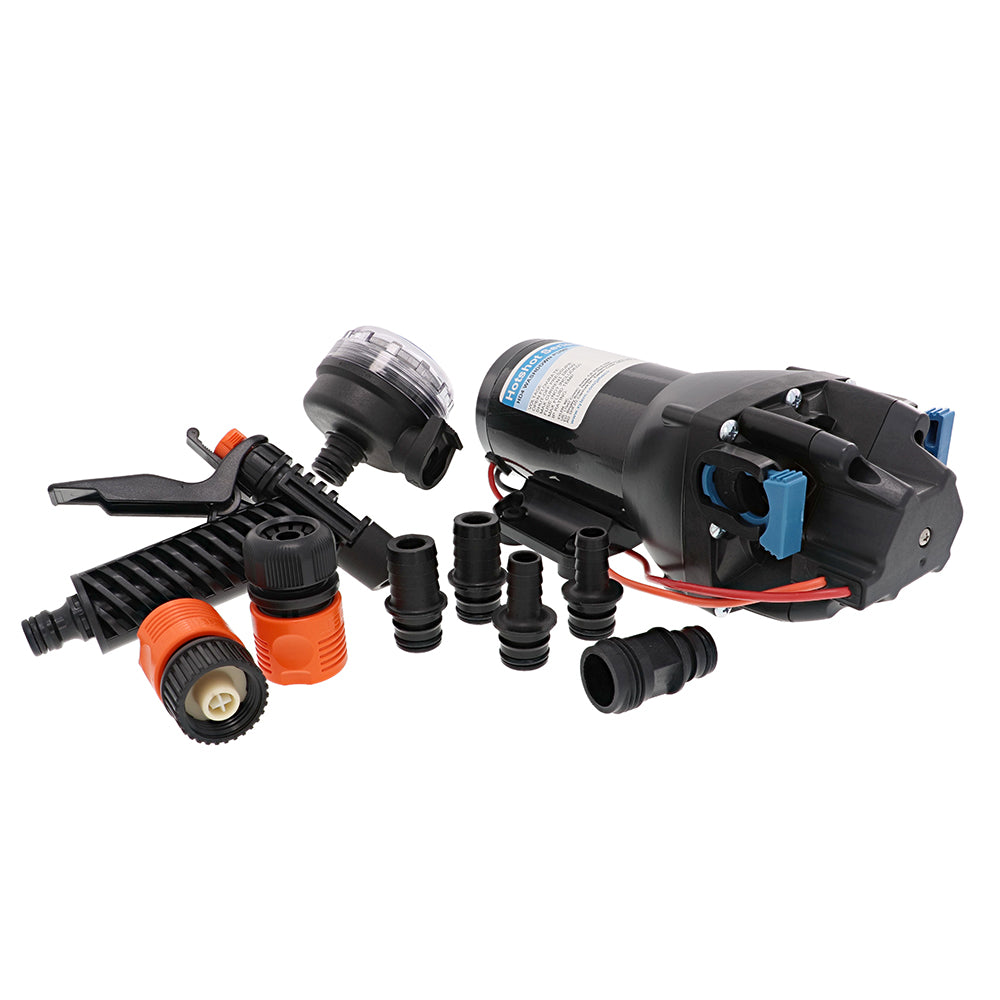

Jabsco HotShot HD4 Heavy Duty Washdown Pump - 12V - 4 GPM - 60 PSI

Jabsco HotShot HD4 Heavy Duty Washdown Pump - 12V - 4 GPM - 60 PSI

OM-JABSCO-HOTSHOTHD4HEAV-Q401J118N3A

$183.07
$256.99 $183.07
Sale
Shipping calculated at checkout.

Low stock: 3 left
Authorized Jabsco Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

60Max PSI
12vVolts
4 GPMGallons Per Minute

The Jabsco HotShot HD4 is a 12V heavy-duty washdown pump for marine deck rinsing and similar washdown jobs. It delivers 4 GPM at 60 PSI and uses a diaphragm design with on-demand pressure switching.

  • Brand: Jabsco
  • Product type: Heavy-duty washdown pump
  • Voltage: 12V
  • Flow rate: 4 GPM
  • Pressure: 60 PSI
  • Motor design: Brushed, permanent magnet TENV
  • Pumphead upper housing: Glass fiber reinforced polypropylene
  • Diaphragm: Co-molded TPV
  • Check valves: EPDM
  • Max inlet pressure: 30 PSI / 2.1 Bar
  • Fluid temperature range: 32°F to 140°F / 0°C to 60°C
  • Dry self-priming capability: 7 ft minimum / 2.1 m minimum
  • Ingress protection: IPX6
  • Certifications: CE, ISO8846, RCM
  • HD construction: Wider diameter motor, powder coated shell, cast aluminum endbells, and cast aluminum lower housing
  • Operation: Efficient and quiet with integrated sealed pressure switch
  • Service features: Quick connect ports and vibration dampening mounting feet
  • Run dry: Can run dry without damage

Specifications

Max PSI60
Volts12v
Gallons Per Minute4 GPM
BrandJabsco
Manufacturer part #Q401J-118N-3A
UPC671880841917
Boxed dimensions17 x 8 x 6 in
Shipping weight8.8 lb
Country of originCHINA
