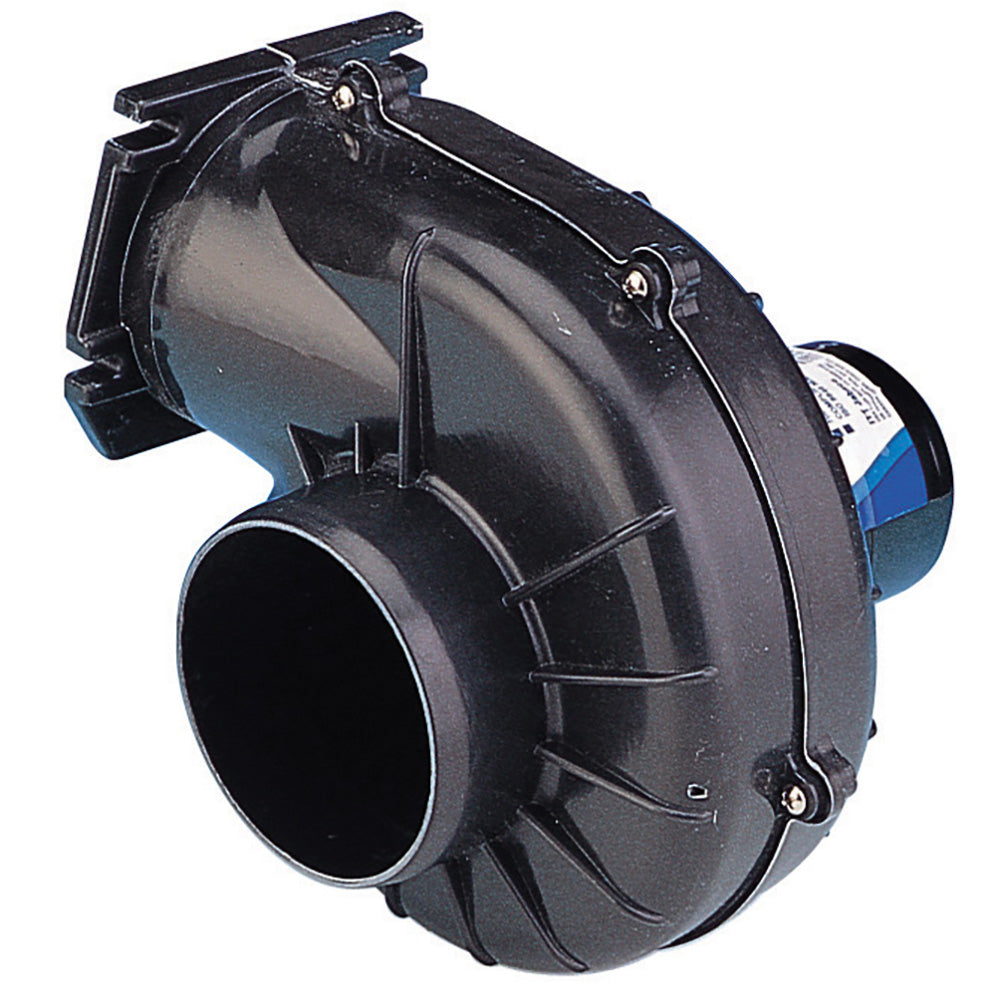

Jabsco 4" Continuous Duty Flangemount Blower - 115V, 250 CFM

Move air through onboard equipment spaces with the Jabsco 4-inch flange-mount blower, rated at 250 CFM on 115V AC power. Its continuous-duty motor suits ongoing ventilation and general air circulation, with engine-room use limited to vessels powered by diesel engines.

Key features

• A continuous-duty induction motor supports ventilation over extended operating periods.
• Thermal overload protection helps protect the motor during operation.
• The discharge flange mounts directly to a flat surface to reduce the ducting required.
• A slip-on inlet connection accepts duct hose from the area needing ventilation.
• Corrosion-resistant materials and a reinforced thermoset plastic housing suit marine ventilation work.
• Low current draw accompanies the blower's high-volume airflow.

Specifications

• Blower size: 4 inches
• Mounting type: Flange mount
• Power supply: 115V AC
• Rated airflow: 250 CFM
• Motor type: Extended-life induction motor
• Duty rating: Continuous
• Motor protection: Thermal overload
• Housing material: Reinforced thermoset plastic
• Inlet connection: Slip-on ducting
• Ignition protection: Not ignition-protected

Good to know

Mount the housing flange on a flat bulkhead; a cool, dry location helps extend motor life. Engine-room ventilation is restricted to diesel-powered vessels. Never use this blower to remove flammable vapours, including gasoline fumes, or install it where flammable vapours may be present.
