• Hella Marine NaviLED TRIO Tri Color Navigation Lamp - 2nm
1 1

Hella Marine

Hella Marine NaviLED TRIO Tri Color Navigation Lamp - 2nm

Hella Marine NaviLED TRIO Tri Color Navigation Lamp - 2nm

OM-HELLAMARINE-NAVILEDTRIOTRI-980650001

$357.90
$560.59 $357.90
Sale
Shipping calculated at checkout.

Low stock: 1 left
Authorized Hella Marine Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

White/Red/GreenLens Color
2nmVisible Range (Miles)
BlackHousing
9-33vVoltage - Input Range (Volts)
YesLED

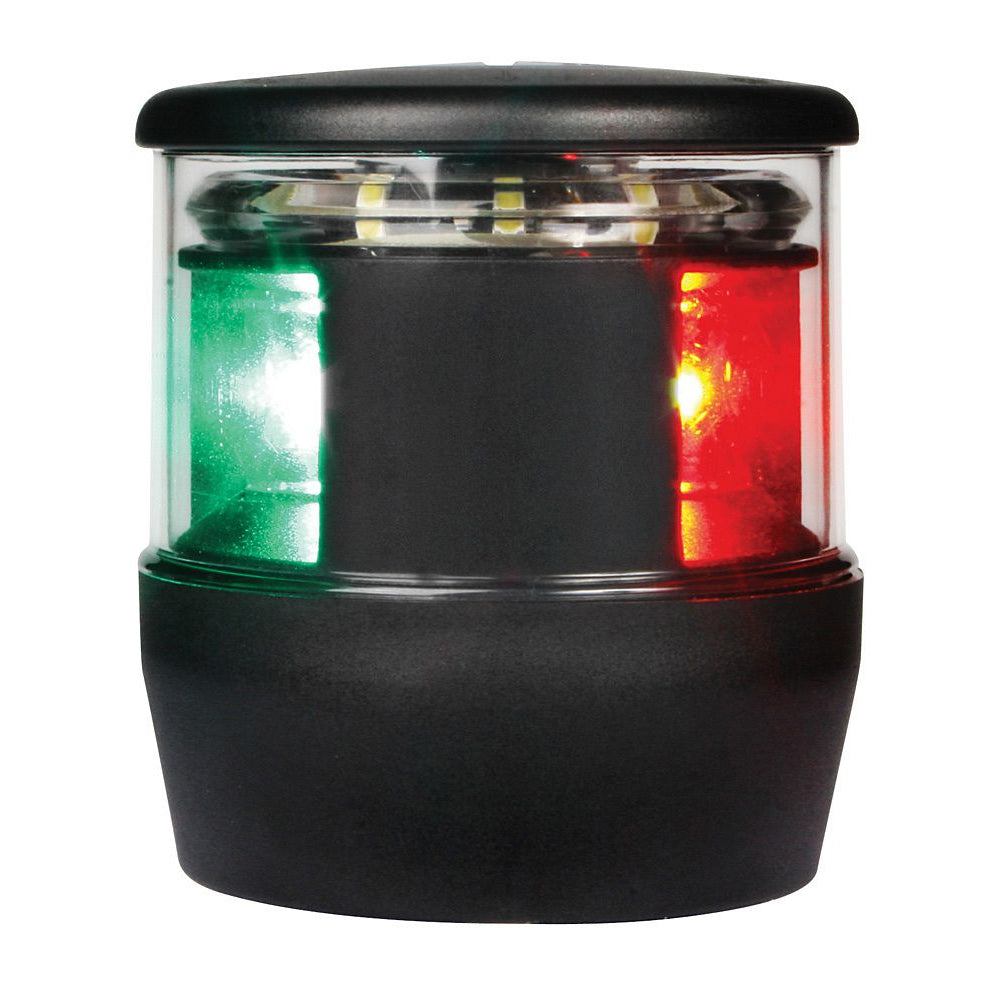

The Hella Marine NaviLED TRIO combines tri-color navigation lighting with an all-round white anchor light for vessels requiring a 2 nautical mile yacht-rated lamp. It is a sealed LED unit designed for 9-33V DC systems, with low power draw for port, starboard, stern, and anchor functions.

  • Brand: Hella Marine
  • Product type: LED tri-color navigation lamp with anchor light
  • Minimum visible distance: 2 nautical miles (yacht)
  • Material description: UV resistant, high impact nylon
  • Lens material: UV resistant, ultra heavy duty Grilamid lens
  • Mounting shaft: 316 stainless steel
  • Cable: Pre-wired with 400mm of triple core marine cable
  • Operating voltage: Multivolt 9-33V DC (early version 8-28V DC)
  • Voltage protection: Spike protected to +500 volts; reverse polarity protected to -700 volts
  • Power consumption: Port, starboard and stern less than 3.5W combined; all-round white / anchor less than 1.5W
  • Protection rating: IP 67, completely sealed
  • Weight: 400g including cable
  • Approvals: BSH, IMO Col Reg 72, USCG, ABYC A-16, Maritime NZ

Specifications

Lens ColorWhite/Red/Green
Visible Range (Miles)2nm
HousingBlack
Voltage - Input Range (Volts)9-33v
LEDYes
BrandHella Marine
Manufacturer part #980650001
UPC9002920143547
Boxed dimensions9 x 6 x 4 in
Shipping weight1.1 lb
Country of originNEW ZEALAND
