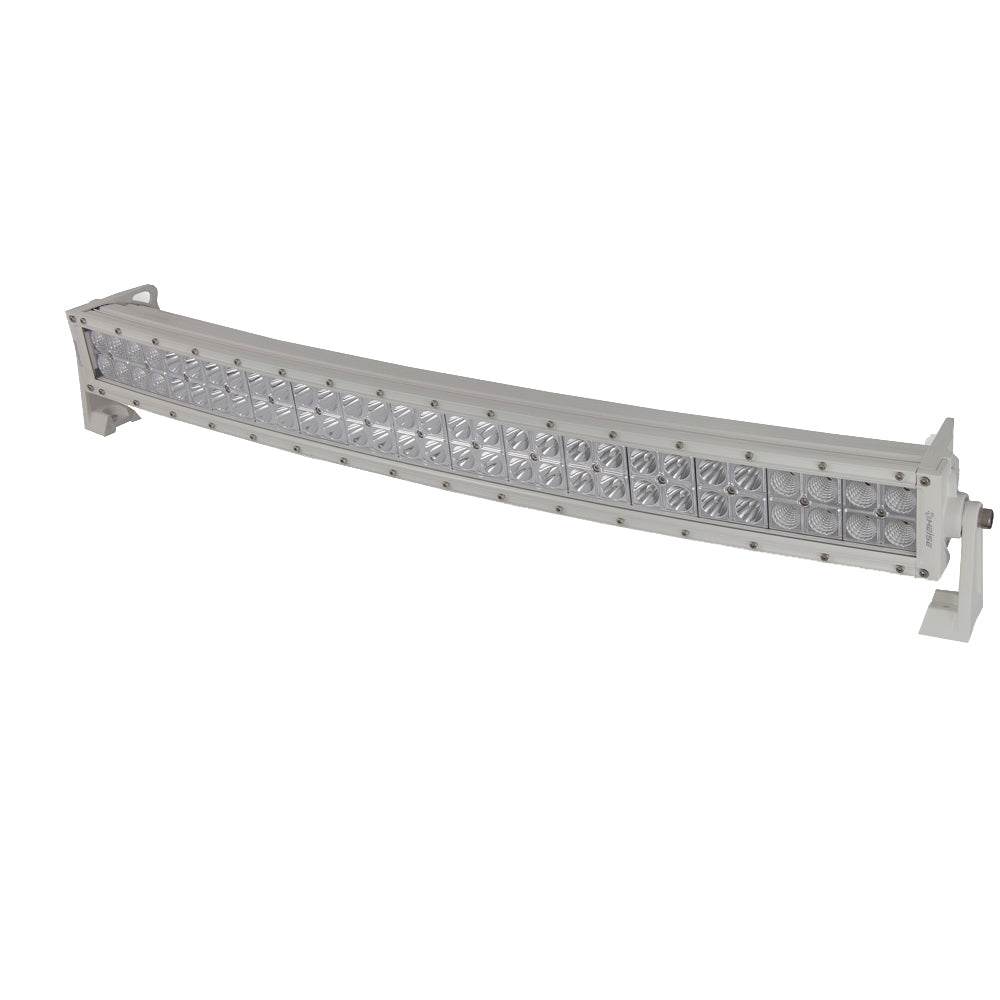

HEISE Dual Row Marine LED Curved Light Bar - 30"

Bring broad and concentrated illumination together with the HEISE 30-inch curved marine LED light bar. For boat owners adding onboard lighting, its dual-row layout combines a 90-degree flood beam with an 8-degree spot beam.

Key features

• Combined flood and spot optics provide wide coverage alongside a narrow beam.
• A 10–30V DC input range accommodates different supply voltages within that range.
• UV inhibitors are included in the white housing coating for outdoor exposure.
• Reverse-polarity protection helps guard against reversed power connections.
• Inward or outward bracket positioning provides two mounting-hole spacing options.
• Epoxy-encapsulated electronics and an IP67 rating provide protection for marine use.

Specifications

• Size: 30 inches
• LED layout: Dual row, curved
• Input voltage: 10–30V DC
• Power: 180W
• LEDs: 60 × 3W CREE
• Raw light output: 14,400 lumens
• Illuminance at 10m: 625 lux
• Color temperature: 6000K
• Beam angles: Flood 90 degrees; spot 8 degrees
• Housing: Die-cast aluminum
• Housing finish: White coating with UV inhibitors
• Membrane: Gore®
• Lens material: PC
• Mounting bracket material: Die-cast aluminum
• Hole dimensions, brackets inward: 31 inches
• Hole dimensions, brackets outward: 33.5 inches
• Mounting bolt drill dimension: 25 inches
• Light bar height: 3 inches
• Light bar depth: 3.5 inches
• Electronics: Integrated, epoxy encapsulated
• Hardware: Stainless 316
• Operating temperature: -40°C to +60°C
• Current consumption: 9.5A at 13.8V
• IP rating: IP67
• Protection: Reverse polarity
