• HEISE Dual Row Marine Curved LED Light Bar - 42"
1 1

HEISE LED Lighting Systems

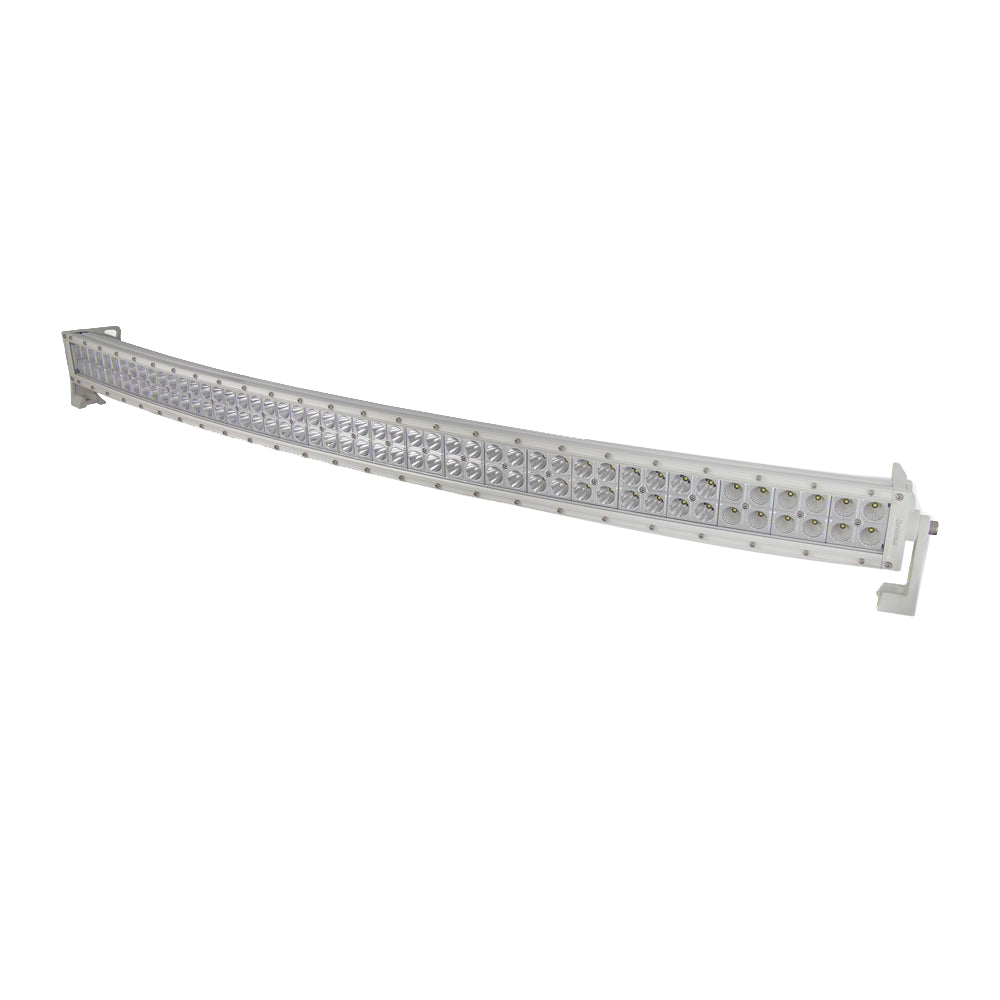

HEISE Dual Row Marine Curved LED Light Bar - 42"

HEISE Dual Row Marine Curved LED Light Bar - 42"

OM-HEISELEDLIGH-DUALROWMARINE-HEMDRC42

$778.99
$865.99 $778.99
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left
Authorized HEISE LED Lighting Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Spot-Flood ComboBeam Pattern
42"Length (Inches)
WhiteHousing
12/24vVoltage - Input Range (Volts)

Dual Row Marine Curved LED Light Bar - 42"

Specs

  • Input Voltage: 10-30V DC
  • Wattage: 240 W
  • (80-3W CREE LEDs)
  • Raw Lumens: 19200
  • LUX at 10M: 780
  • Color Temperature: 6000K
  • Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees

Construction

  • Housing Material: Die-Cast Aluminum Housing
  • Housing Color: White Coating with UV Inhibitors
  • Membrane: Gore®
  • Lens Material: PC
  • Mounting Bracket: Die-Cast Aluminum
  • Hole Dimensions:
  • Brackets Turned Inward – 41 inches
  • Brackets Turned Outward – 43.5 inches
  • Mounting Bolt Drill – 25 inches
  • Height of Light Bar Itself: 3 inches
  • Depth of Light Bar Itself: 3.5 inches
  • Electronics: Integrated-Epoxy Encapsulated
  • Hardware: Stainless 316

Operation

  • Operating Temperature: – 40 degrees C to +60 degrees C
  • Current Consumption: 12 Amps at 13.8 Volts
  • IP Rating: IP67
  • Protections: Reverse Polarity

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications

Beam PatternSpot-Flood Combo
Length (Inches)42"
HousingWhite
Voltage - Input Range (Volts)12/24v
BrandHEISE LED Lighting Systems
Manufacturer part #HE-MDRC42
UPC086429348282
Boxed dimensions45 x 8 x 5 in
Shipping weight13.0 lb
Country of originCHINA
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Quick start guidePDF ↓
