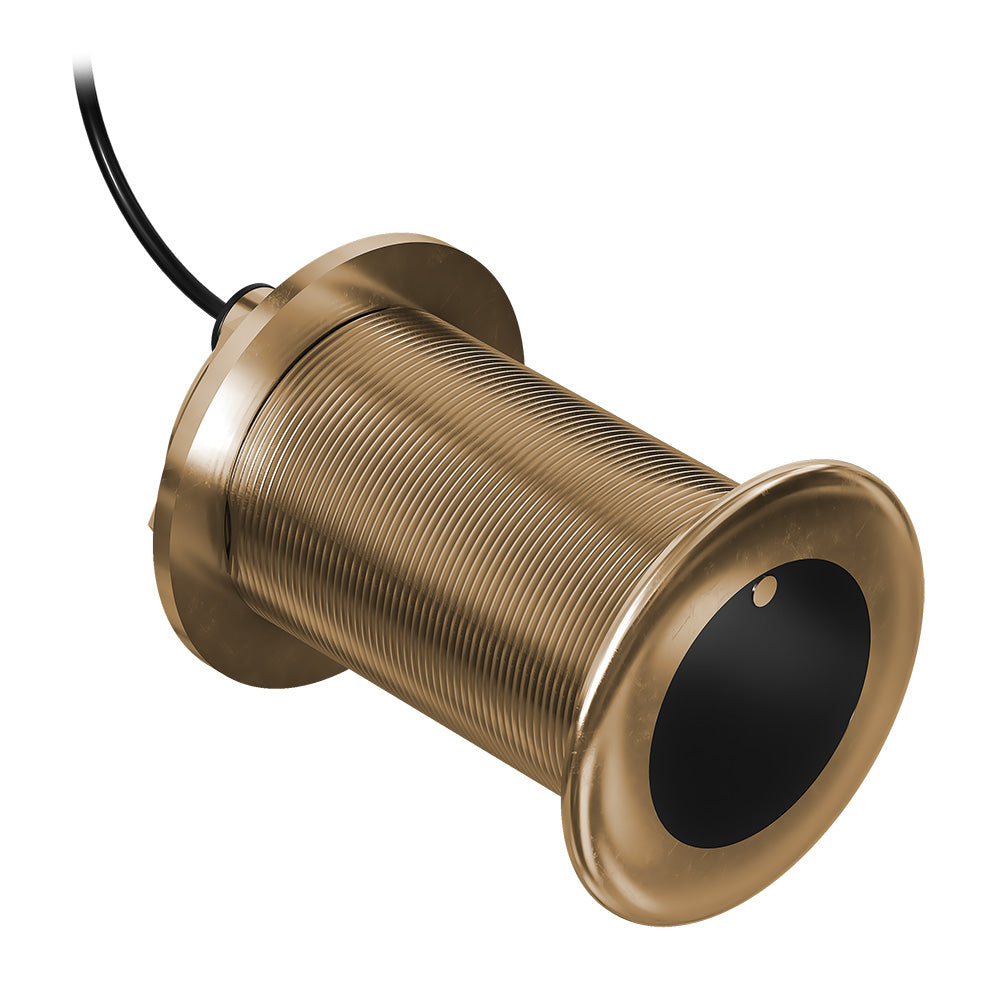

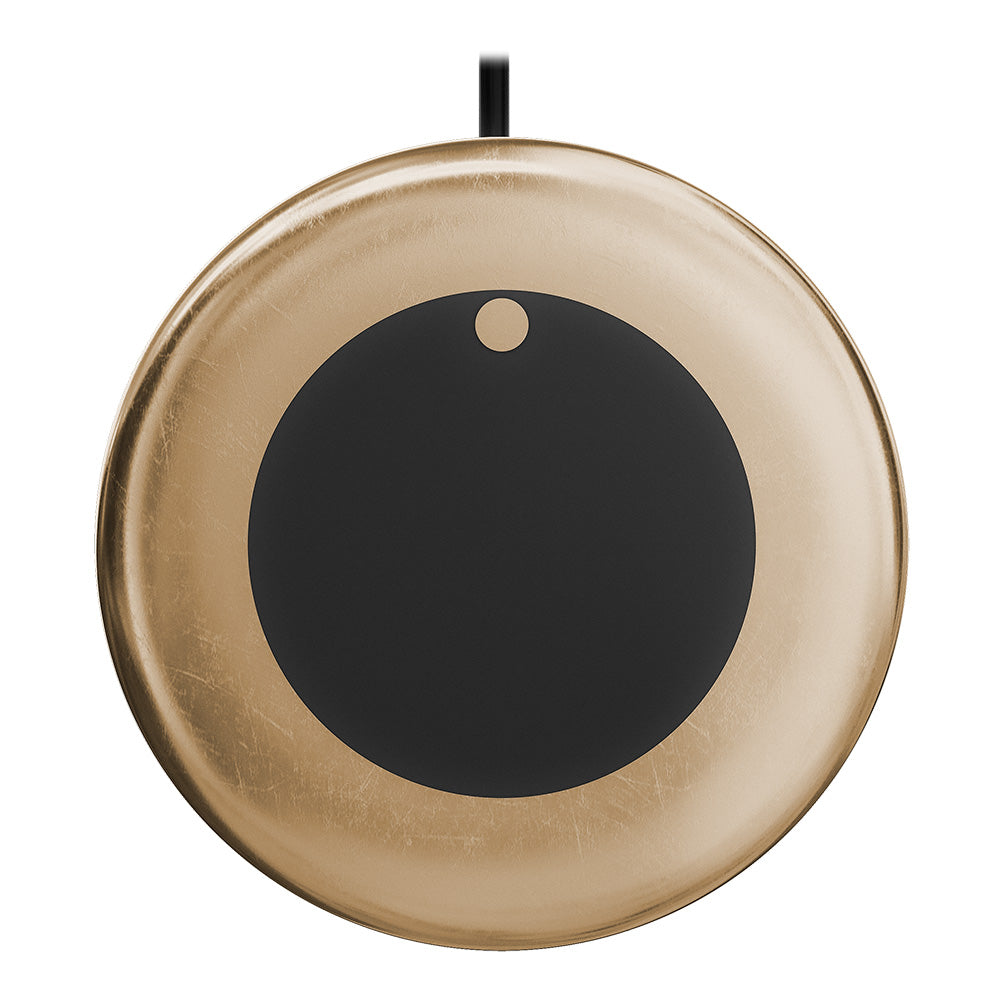

Garmin GT12M Bronze Thru-Hull - 350W - 12 Degree

Garmin GT12M Bronze Thru-Hull is a flush-mounted CHIRP transducer for midsize fishing and cruising boats. It is built for traditional mid-band sonar and provides depth and temperature data through an 8-pin connection.

The bronze housing supports thru-hull installation with a 12 degree tilt, helping match boats with supported deadrise angles from 8 degrees to 15 degrees. Garmin auto-identification technology allows compatible sonar systems to configure to the connected transducer.

• Model: GT12M-THF
• Transducer type: bronze thru-hull
• Power: 350 W
• Sonar frequency: medium-band CHIRP, 85-165 kHz
• Beamwidth: 24 degrees to 16 degrees
• Maximum depth: 800 ft saltwater / 1200 ft freshwater
• Cable length: 50 ft
• Data supported: depth and temperature
• Connector: 8-pin
• Housing material: bronze
• Tilt: 12 degrees
• Supported hull deadrise angles: 8 degrees to 15 degrees
• For fiberglass, composite, and wood hull materials
• Includes GT12M-THF transducer, jam nut, washer, and documentation
