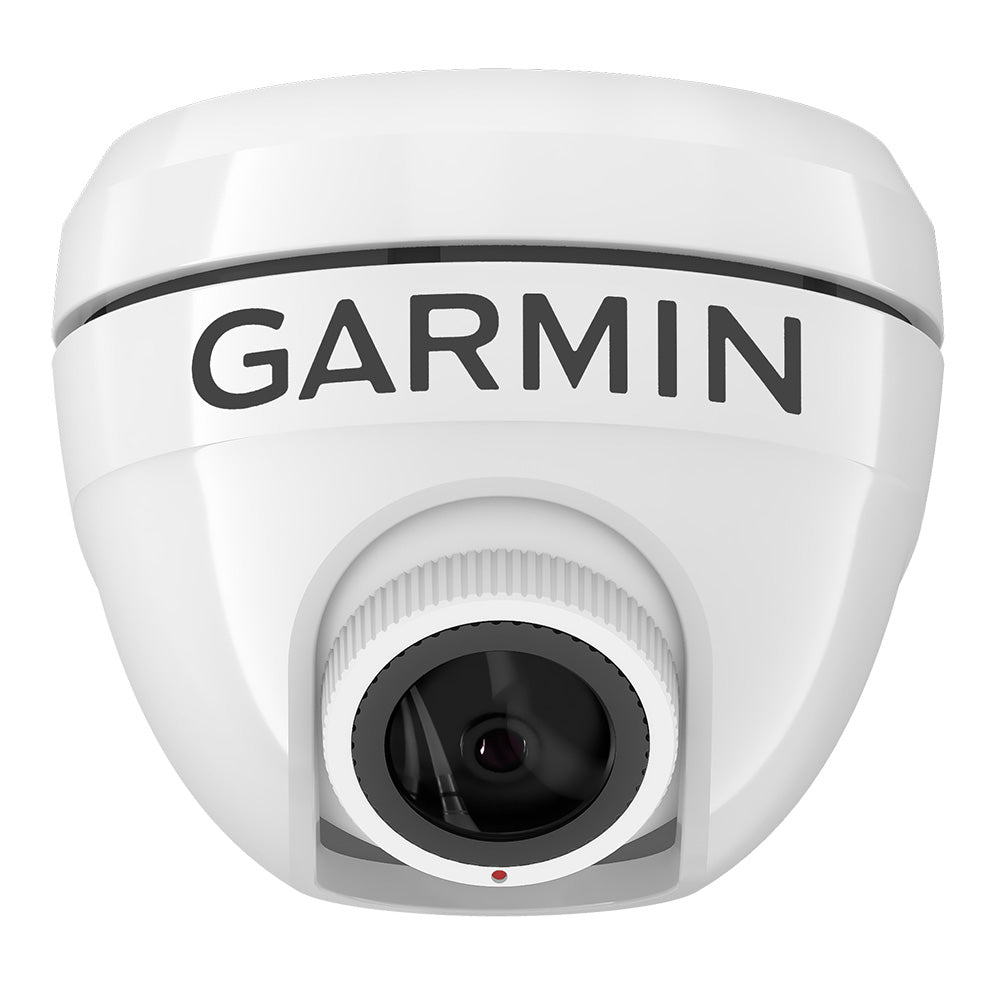

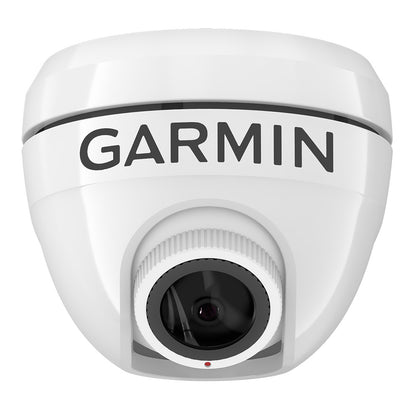

Garmin GC™ 245 Surface Mount Camera - White

The Garmin GC 245 is a white surface-mount marine camera for adding a helm-view camera feed to compatible Garmin chartplotters. It provides 1080p video output, selectable views, and network integration through the Garmin marine network or Garmin BlueNet network.

• Product type: Surface mount marine camera
• Color: White
• Video resolution: 1920 x 1080 pixels
• Video output: H.264 over GMN and BlueNet
• Connection to chartplotter: IP
• Selectable views: FishEye, standard, and BirdsEye when OEM calibrated
• Images: Standard and reverse
• Augmented reality features: Distance markers when OEM calibrated and user setup guidance lines
• Viewing angle: 160 degrees horizontal and 90 degrees vertical
• Digital view control: Digital zoom and digital pan
• Multiple feeds: View up to four camera feeds at the same time on a compatible MFD
• Mounting: Ball-up or ball-down installation
• Setup: Plug-and-play
• Water rating: IPX7
• Housing: Rugged housing
• Unit dimensions: 2.4 in. x 2.4 in. x 2.2 in. (6.1 x 6.1 x 5.1 cm)
• Weight: 3.25 oz. (92 g)
• Hardwire power: 12V/24V
• Operating current: 300 mA at 12VDC; 200 mA at 24VDC
• Power consumption: 4.5 W
• Operating temperature: -20 degrees C to +60 degrees C
• Scanning system: Progressive scan
• Day/night operation: RGB mode full-time
• In the box: GC 245 surface mount camera, GVA 10 with integrated power and network cables, 500 mm network adapter cable, 8 m video coaxial cable, mounting hardware, and documentation
• Notes: Professional calibration is required for some features; 1080p resolution is available on select chartplotters only
