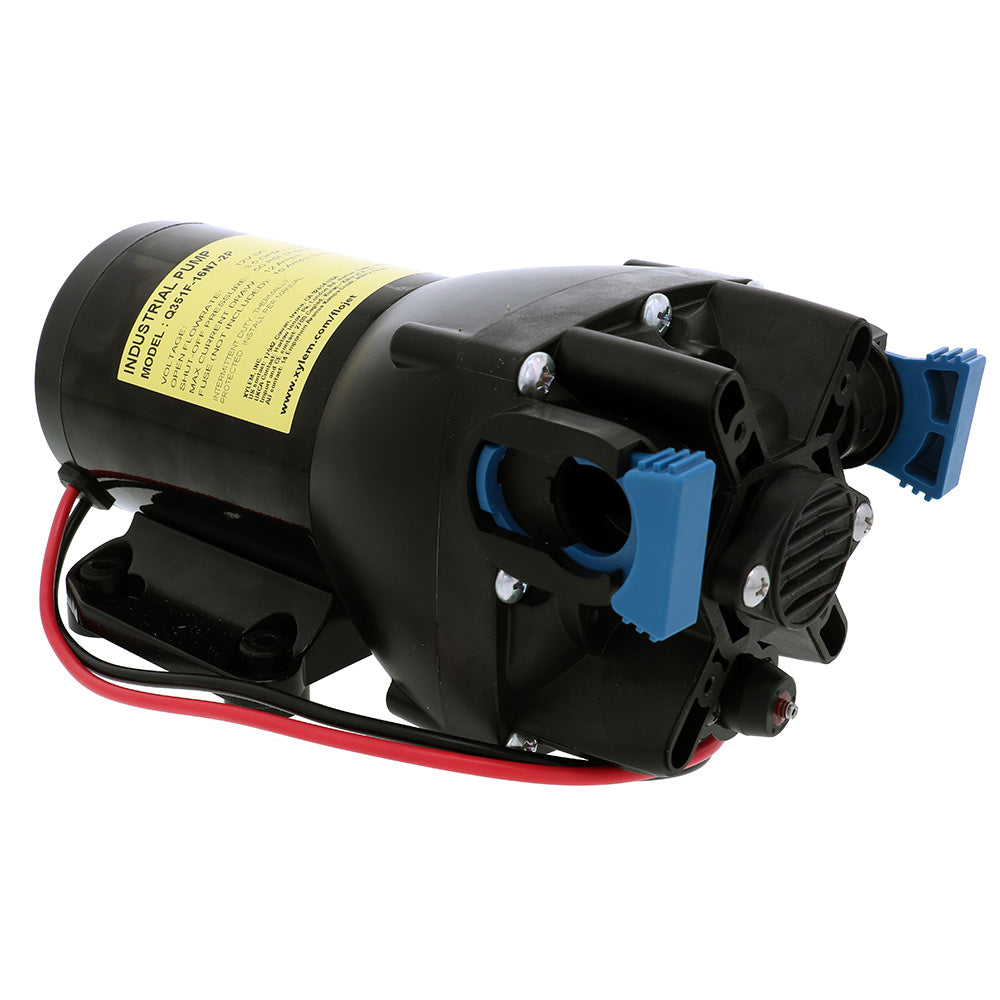

Flojet VersiJet Diaphragm Pump - 3.5 GPM, 12V, 50 PSI

The Flojet VersiJet Q351F-16N7-2P is a 12V diaphragm pump for moving liquids in transfer, spraying, cooling, circulation, filtration, and dispensing setups. It provides 3.5 GPM open flow with a 50 PSI maximum operating pressure and uses corrosion-resistant pump materials for demanding installations.

• Product number: Q351F-16N7-2P
• Open flow rate: 3.5 GPM (13.2 LPM)
• Maximum operating pressure: 50 PSI (3.4 BAR)
• Maximum inlet pressure: 30 PSI (2.2 BAR)
• Nominal voltage: 12 VAC
• Voltage range: 9V to 13.6V
• Maximum current draw: 9.5 amps at 50 PSI
• Fuse size: 15 amps, not included
• Port fittings: two 1/2" (13mm) straight hose barbs
• Self-priming capability: up to 8 ft (2.4m) dry prime
• Fluid temperature range: 32 degrees F to 140 degrees F (0 degrees C to 60 degrees C)
• Duty cycle: intermittent
• Leads: 12" (305mm), 14 AWG (2.5mm^2), stripped wire
• Weight: 5.1 lb pump only
• Features: four-chamber diaphragm, internal bypass, quick-connect ports, run-dry capability, thermal motor protection, noise-dampening baseplate, TENV permanent magnet motor
• Materials: glass-filled polypropylene upper housing, cast aluminum lower housing, polypropylene check valve retainer, Santoprene diaphragm, Viton check valves and seals, stainless steel fasteners, nylon baseplate with rubber feet, cast aluminum and coated steel motor casing
