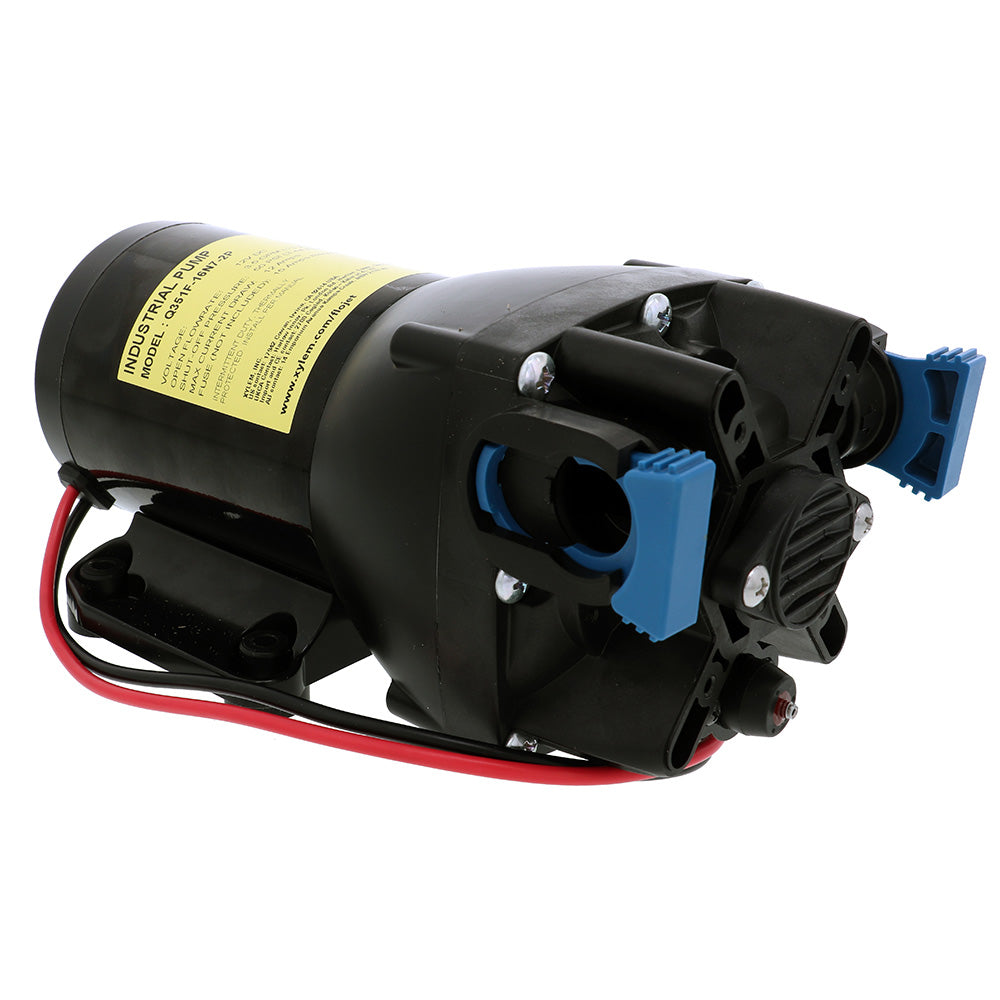

Flojet VersiJet 4 Chamber Diaphragm Pump - 24V, 3.5 GPM, 50 PSI
Flojet VersiJet 4 Chamber Diaphragm Pump - 24V, 3.5 GPM, 50 PSI
SKU:OM-FLOJET-VERSIJET4CHAMB-Q352F16N72P
Low stock: 1 left
Couldn't load pickup availability
Overview
The Flojet VersiJet Q352F-16N7-2P is a 24 VAC four-chamber diaphragm pump for moving liquids in marine and industrial setups. It supports transfer, spraying, cooling, circulation, filtration, and dispensing applications with quick-connect ports and supplied straight hose barbs.
- Product number: Q352F-16N7-2P
- Nominal voltage: 24 VAC
- Open flow rate: 3.5 GPM (13.2 LPM)
- Maximum operating pressure: 50 PSI (3.4 BAR)
- Maximum inlet pressure: 30 PSI (2.2 BAR)
- Ports: Quick-connect ports
- Included fittings: Two 1/2 inch (13mm) straight hose barbs
- Pressure switch cut-off: No switch
- Internal bypass: Yes
- Self-priming capability: Up to 8 ft (2.4m) dry prime
- Run-dry capable: Yes
- Maximum current draw: 5.3 amps at 50 PSI (3.4 BAR)
- Fuse size: 7 amps, not included
- Duty cycle: Intermittent
- Fluid temperature range: 32 degrees F to 140 degrees F (0 degrees C to 60 degrees C)
- Leads: 12 inch (305mm), 14 AWG (2.5mm^2)
- Wire connection: Stripped wire
- Weight: 5.1 lbs pump only
- Motor: TENV permanent magnet motor with thermal motor protection
- Housing materials: Glass-filled polypropylene upper housing and cast aluminum lower housing
- Diaphragm: Santoprene
- Seals and check valves: Viton
- Fasteners: Stainless steel
- Baseplate: Nylon with rubber feet
Specifications
| Brand | Flojet |
|---|---|
| Manufacturer part # | Q352F-16N7-2P |
| UPC | 705474224043 |
| Boxed dimensions | 12 x 6 x 5 in |
| Shipping weight | 5.6 lb |
| Country of origin | MEXICO |
