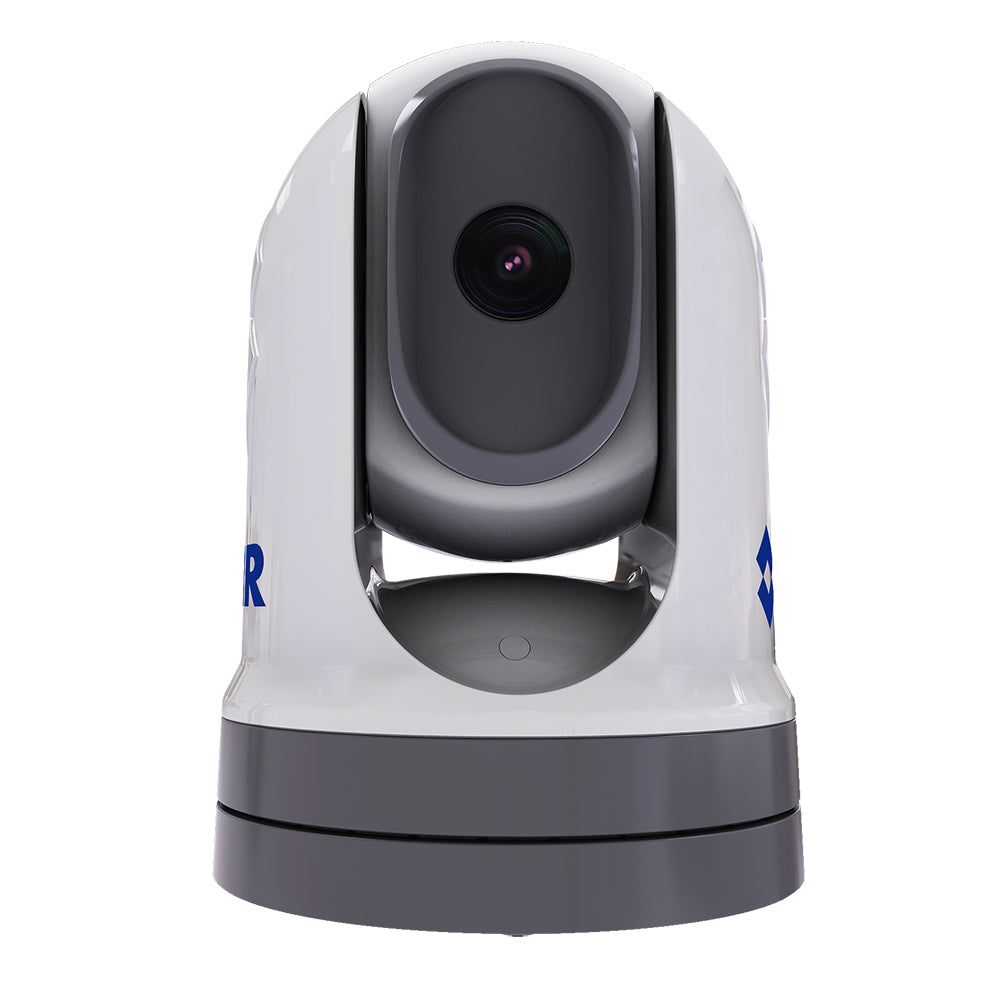

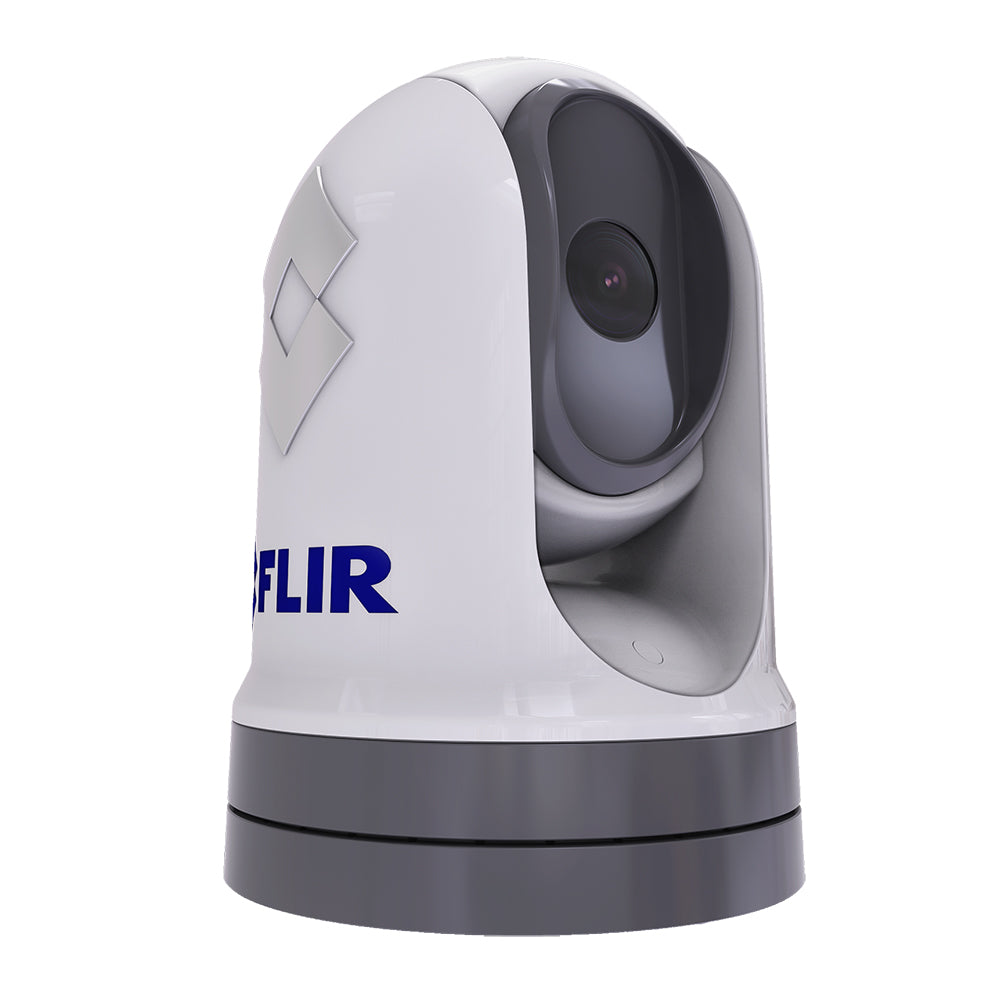

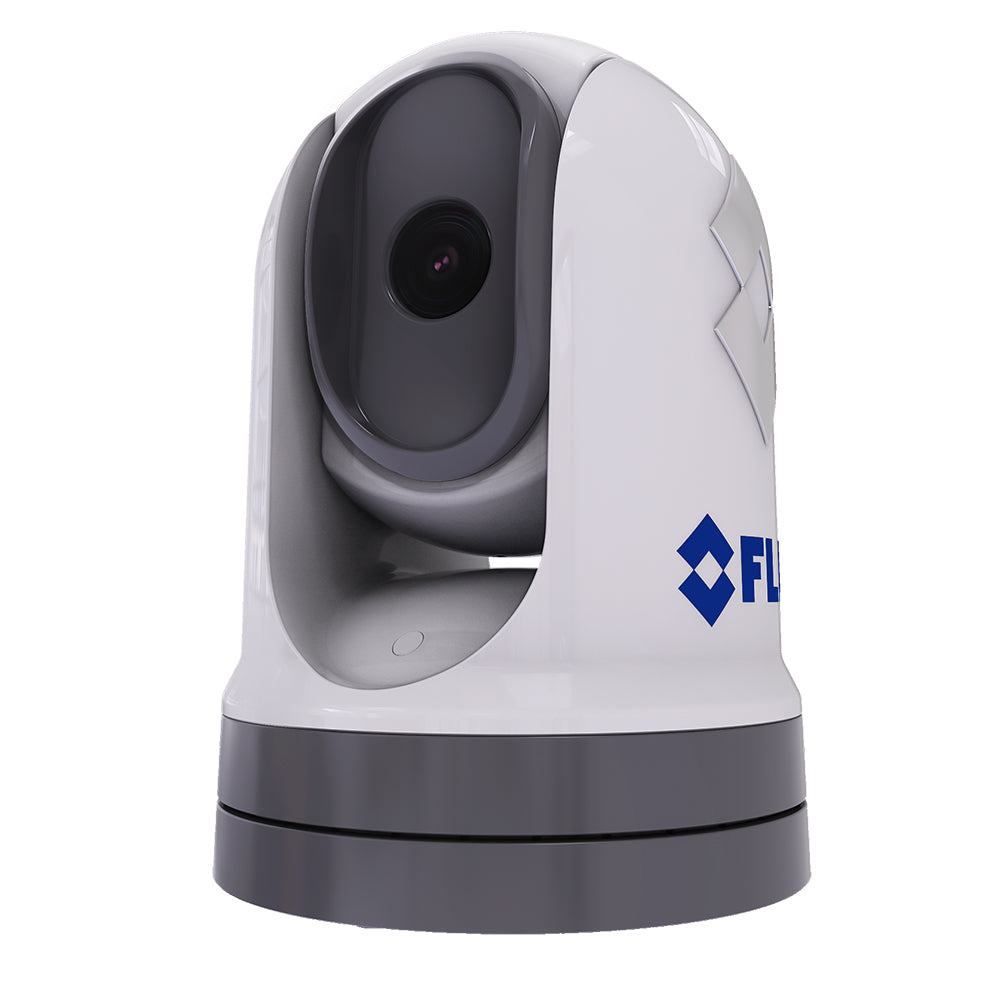

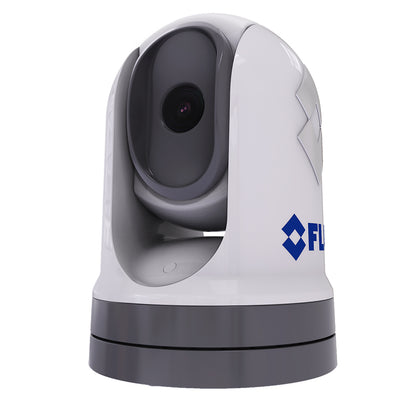

FLIR M332 Stabilized Thermal IP Camera

The FLIR M332 is a stabilized thermal IP camera for marine use in law enforcement, commercial, and recreational applications. It uses a FLIR Boson thermal imaging core to help operators see in complete darkness, glare, and light fog.

Two-axis mechanical stabilization and an integrated AHRS help maintain a steady view while the vessel moves. The camera also supports navigation and security integration through multifunction display control, ONVIF PTZ use, and multiple video outputs.

• Brand: FLIR Systems
• Model: M332
• Product type: Stabilized thermal IP camera
• Thermal core: FLIR Boson
• Thermal resolution: 320 x 256 VOx microbolometer
• Image refresh: Up to 30 Hz
• Pan and tilt: 360 degree continuous pan, +/- 90 degree tilt
• Stabilization: Two-axis mechanical stabilization
• Sensor: Integrated AHRS / Attitude Heading Reference Sensor
• Stabilized view: Horizontal stabilization keeps the camera on scene while maneuvering
• Processing: Advanced onboard image processing technology
• Compatibility: ClearCruise Augmented Reality enabled when paired with Raymarine Axiom MFDs
• Control: Optional JCU2 joystick control unit and multifunction navigation display integration
• Security integration: ONVIF-compliant for PTZ security camera functionality
• Video outputs: H.264 IP video stream, HD-SDI lossless, and analog video output
• Included: M300 camera, camera base-seal, camera gasket, RayNet-to-RJ45 adaptor cable 120 mm / 4.72 in., right-angled RayNet-to-RayNet cable 3 m / 9.8 ft., right-angled HD-SDI video cable with BNC connectors 3 m / 9.8 ft., right-angled power/NMEA 0183/video cable 3 m / 9.8 ft., mounting riser, camera fixings, two self-adhesive decals for ball-down mounting only, and documentation pack
