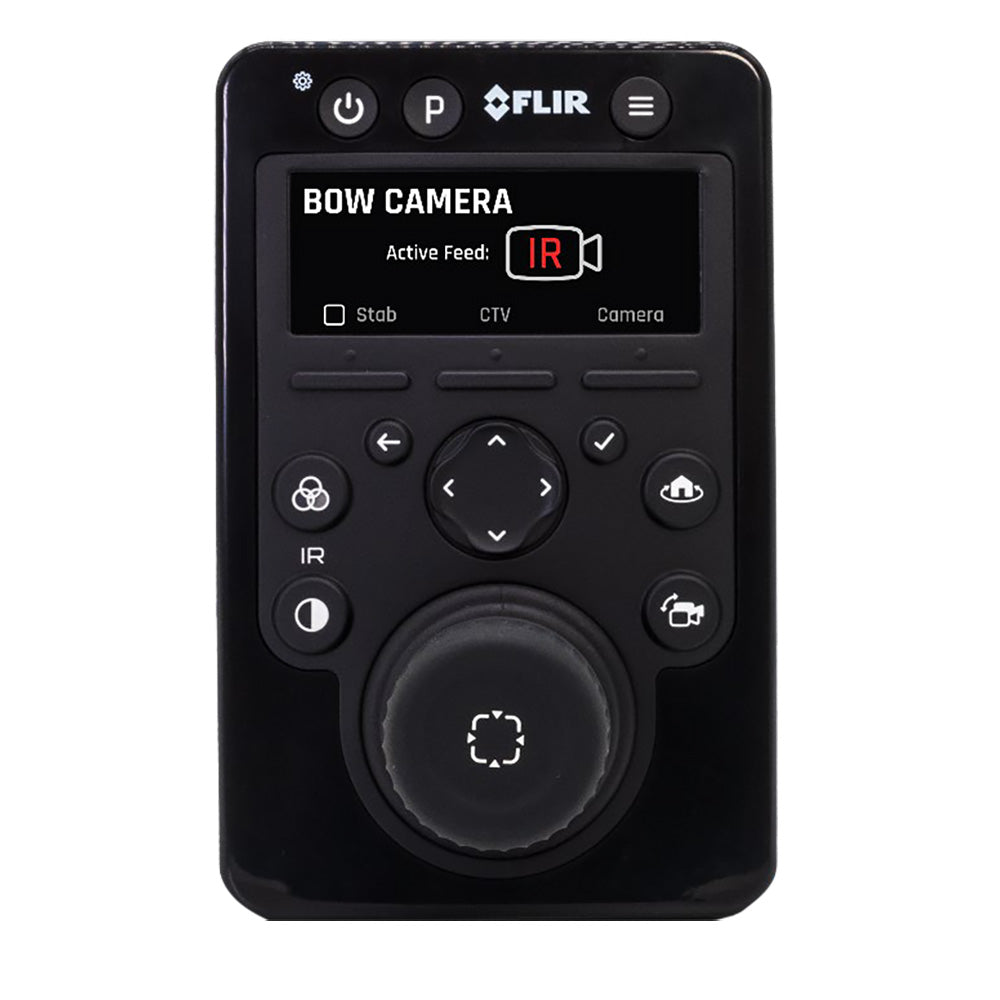

FLIR JCU-4 Premium Joystick Control Unit

The FLIR Systems JCU-4 is a premium joystick control unit for operating compatible FLIR marine cameras. It gives dedicated control of pan, tilt, zoom, and camera functions through a three-axis joystick, keypad, and color LCD.

This low-profile controller is designed for marine camera stations where tactile control and night operation matter. It supports Ethernet, POE, and dedicated DC power connections and fits the same mounting footprint as the JCU-2 and JCU-1.

• Product type: joystick control unit for FLIR marine cameras
• Controls: pan, tilt, zoom, and camera functions
• Joystick: rugged low-profile three-axis design
• Display: 2.9" color LCD
• Keypad: ergonomic keypad with backlighting
• Night use: dimmable LCD and backlit keypad help preserve operator vision
• Custom keys: three user-defined function keys
• Compatibility: current M232, M300 Series, M400/M400XR, and M500 cameras
• Legacy compatibility: legacy M-Series, MU/MV Series, and Raymarine T-Series cameras
• Retrofit detail: same mounting footprint as JCU-2 and JCU-1
• Connectivity: two Ethernet ports, POE support, and dedicated DC power connector

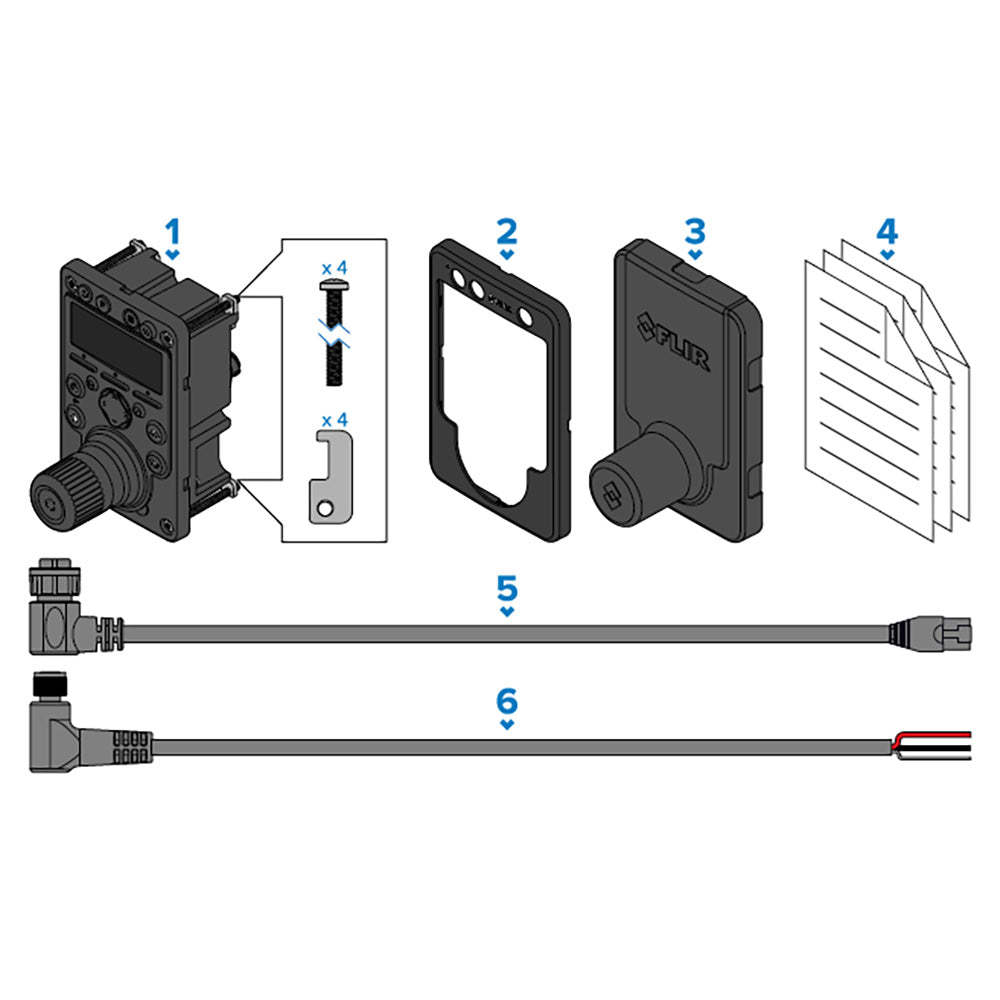

• Included: JCU-4 with 4 screws and 4 pre-fitted mounting plates, front cover, weather cover, documentation pack, right-angled RayNet Ethernet to RJ45 adapter cable 3 m (9.84 ft), and right-angled three-pin power cable 3 m (9.84 ft)
