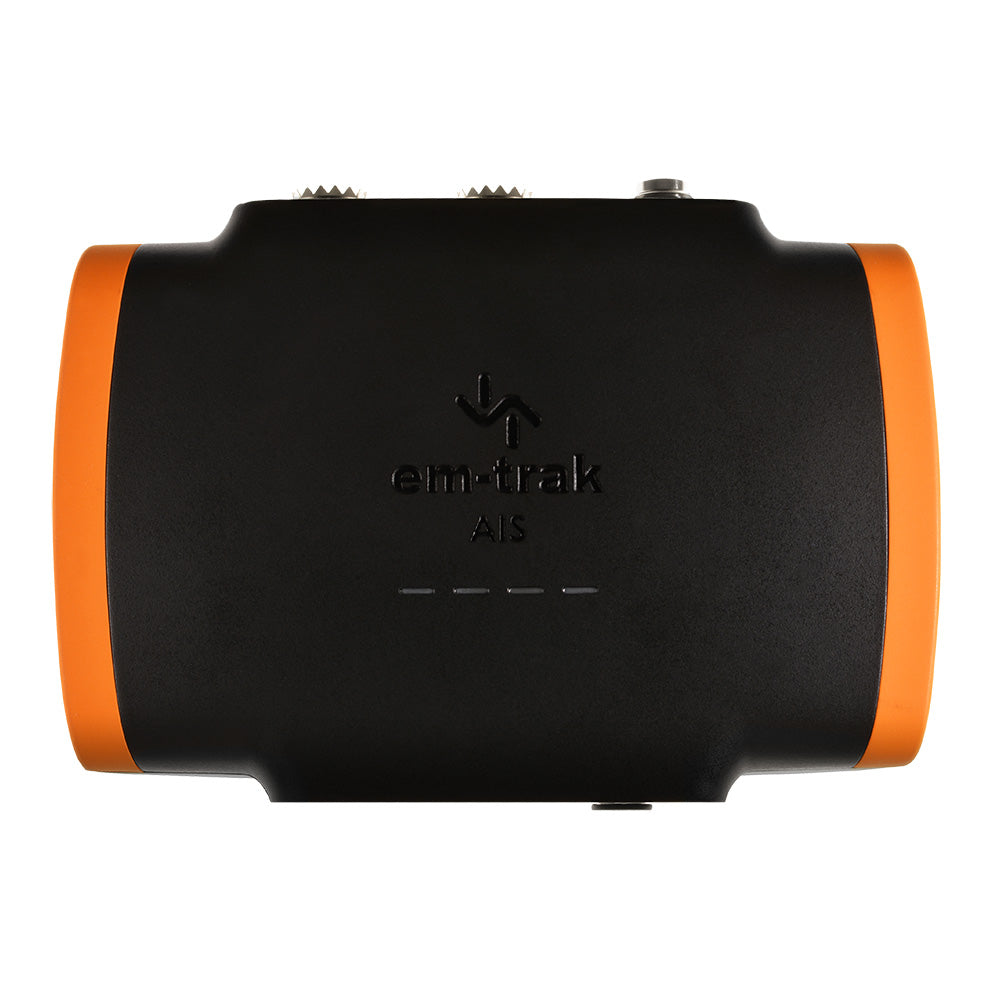

em-trak B923 Class B AIS Transceiver w/VHF Splitter - 2W CSTDMA

The em-trak B923 is a Class B AIS transceiver for boats that need AIS transmit and receive capability with a shared VHF antenna setup. It combines 2W CSTDMA AIS operation, an integrated VHF antenna splitter, and multiple marine data connections in a compact unit.

• Product: Class B AIS transceiver with VHF splitter
• AIS type: Certified AIS Class B
• Transmit power: 2W CSTDMA

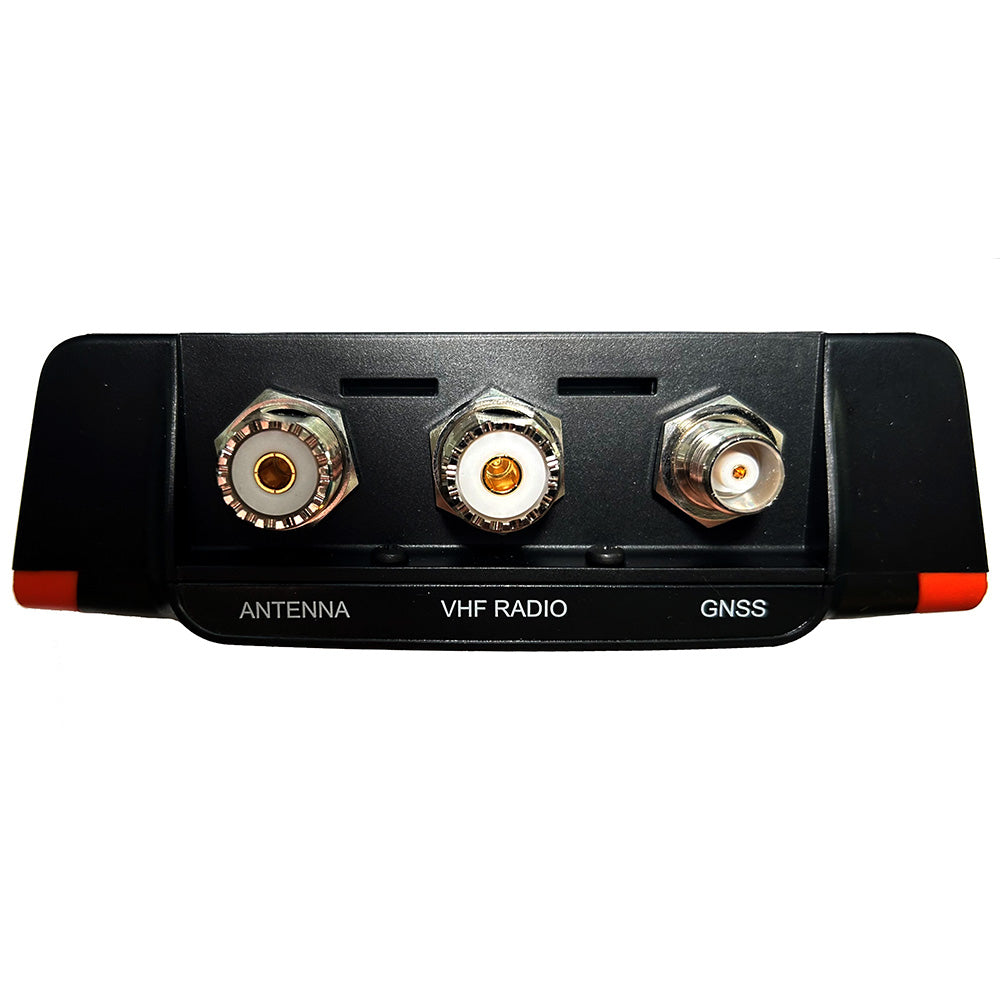

• Antenna setup: Integrated VHF antenna splitter
• Certifications: USCG, FCC, Canada, and Europe
• Transceiver engine: SRT-AIS™
• Mounting: FLEXI-FIT™ bracket system
• GPS: Internal GPS receiver and antenna; external antenna optional
• Ingress protection: IPx6 and IPx7 certified

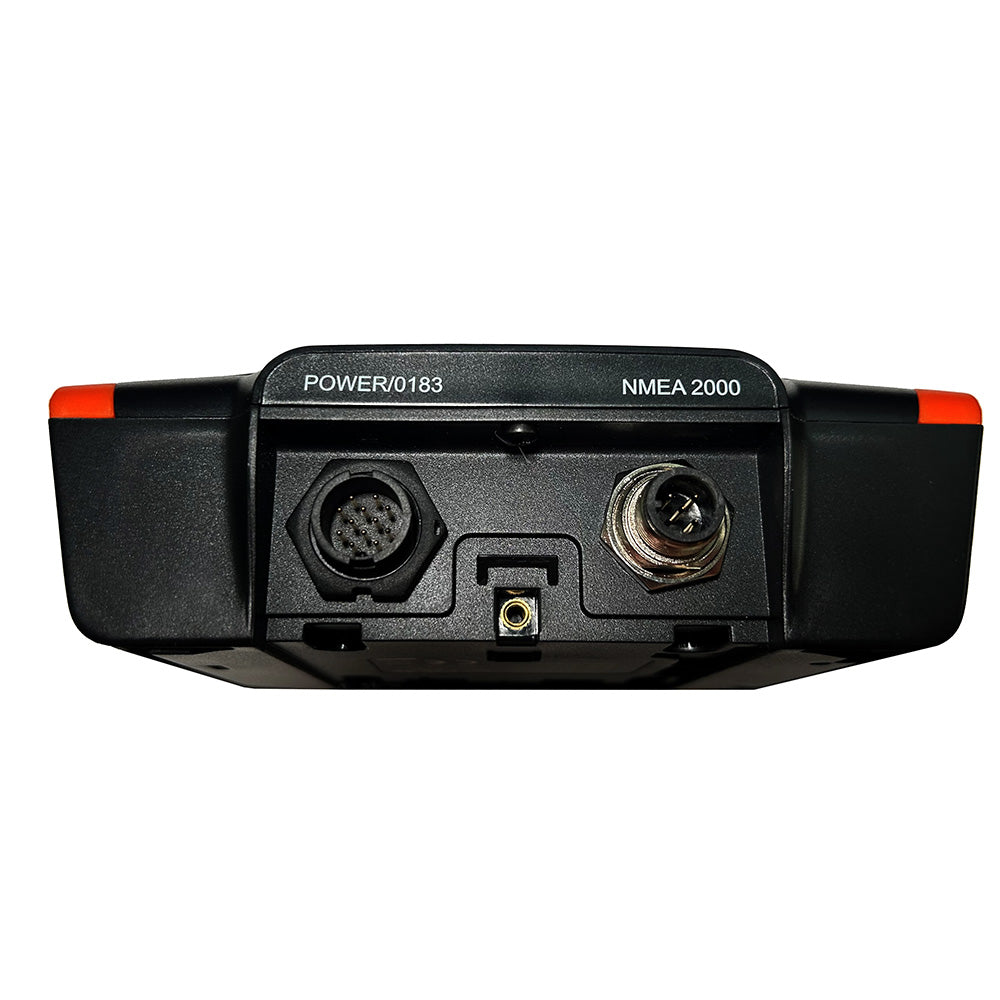

• Connections: NMEA 0183, NMEA 2000, serial ports, USB, Bluetooth, and optional Wi-Fi
• Functions: Automated health and performance monitoring plus silent mode transmit-off function
• Protection: Enhanced RF screening, built-in power surge protection, and fail-safe VHF radio operation
• Size: 150 x 115 x 45mm
• Operating temperature: -25°C to +55°C
• Storage temperature: -25°C to +70°C
• Supply voltage: 12V or 24V DC
• Supply voltage range: 9.6V to 31.2V DC
• Average current at 12V: 245mA
• Peak current: 2A
• Programming note: Units sold in the US must be programmed by a qualified technician; MMSI registration or FCC Ship Station License documentation and vessel master or owner signature are required.
