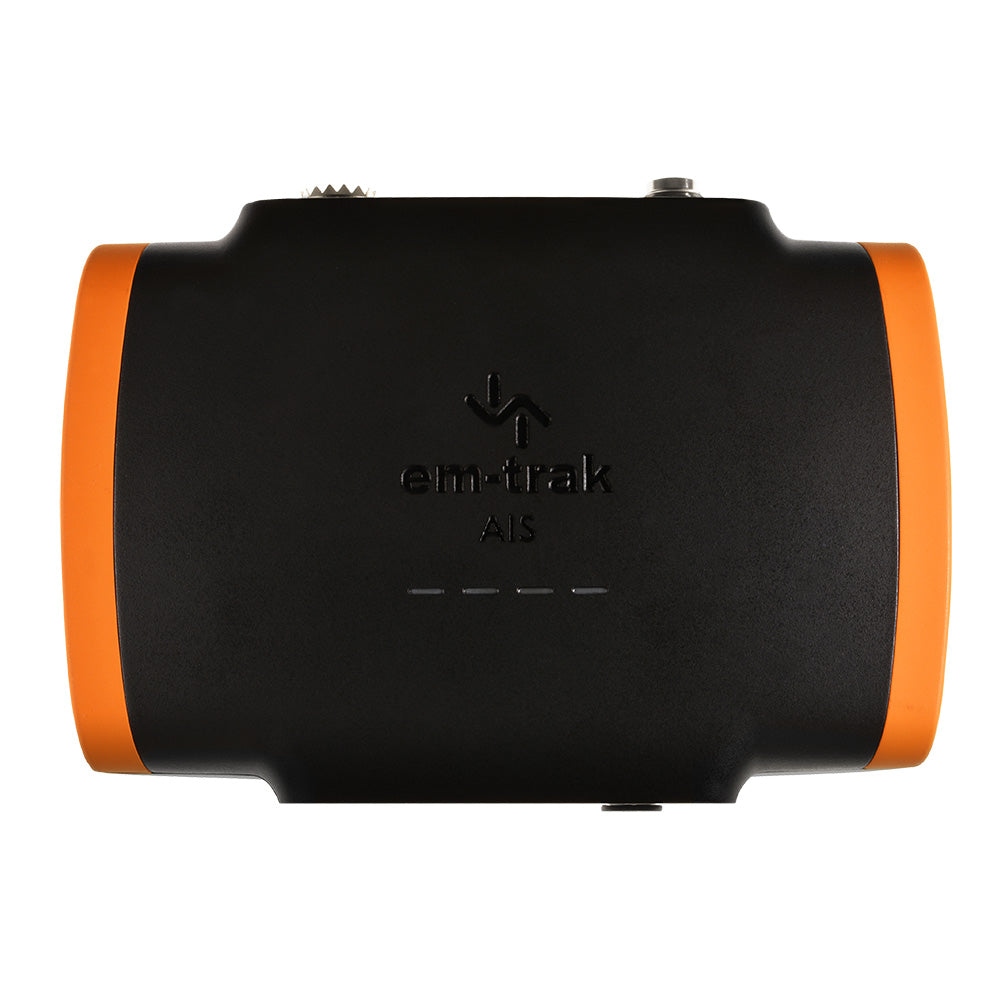

em-trak B922 Class B AIS Transceiver w/WiFi & Bluetooth Wireless Connectivity - 2W CSTDMA

The em-trak B922 is a Class B AIS transceiver for vessels that need AIS transmit and receive capability with wireless data access. It supports WiFi and Bluetooth connections for sharing AIS data with mobile devices or a PC, and it can also connect through NMEA 0183 and NMEA 2000 systems.

FCC rules require U.S. units to be programmed by a qualified technician. A completed programming form, MMSI registration or FCC Ship Station License, and the vessel master or owner's signature are required at the time of purchase.

• Model: B922
• AIS class: Certified AIS Class B
• Transmit type: 2W CSTDMA
• Wireless connectivity: Integrated WiFi and Bluetooth
• Device support: Can be used by up to nine devices simultaneously
• App support: Works with the em-trak CONNECT-AIS app for programming, configuration, and monitoring
• Certifications: USCG, FCC, Canada, and Europe
• Engine: SRT-AIS transceiver engine
• Mounting: FLEXI-FIT no-screw bracket system
• GPS: Internal high-performance GPS receiver and antenna; external antenna optional
• Ingress protection: IPx6 and IPx7 certified
• Protection: Built for water, pressure spray, damp conditions, vibration, shock, and extreme temperatures

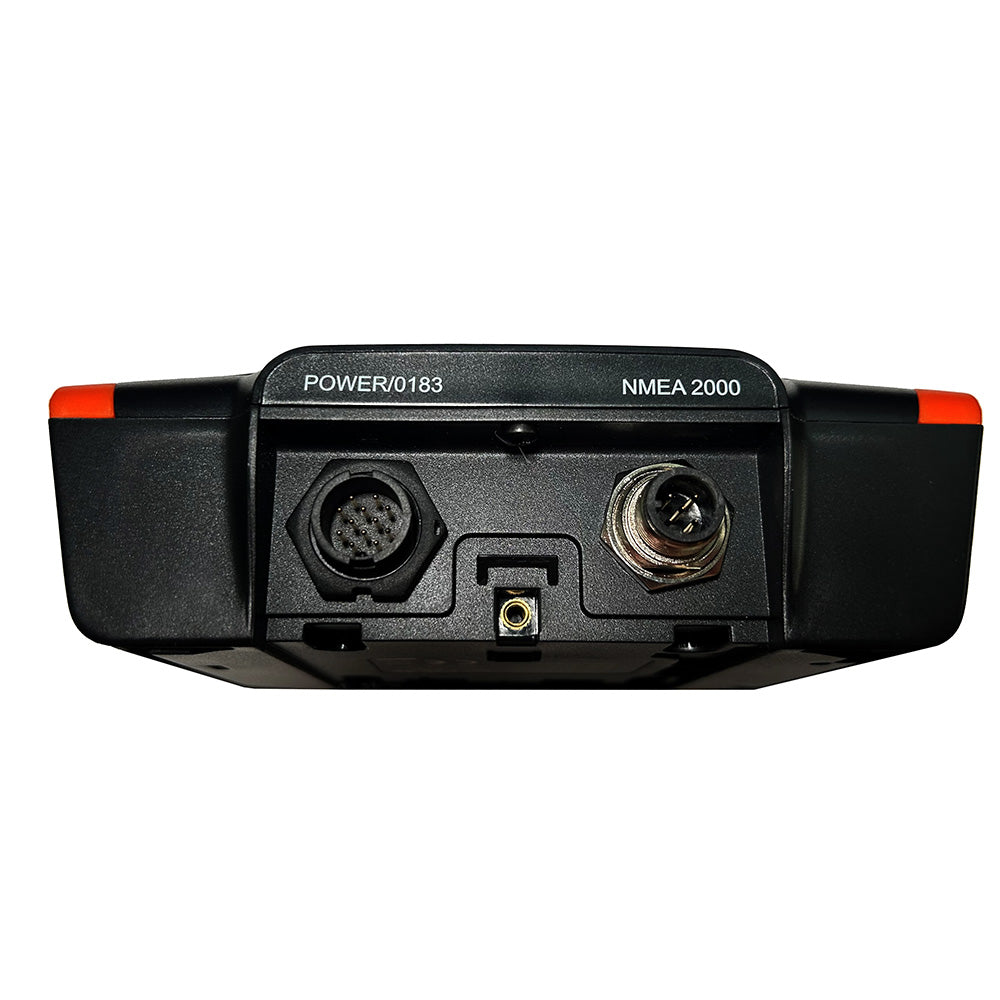

• Interfaces: NMEA 0183 and NMEA 2000
• Functions: Automated health and performance monitoring; silent mode transmit-off function
• Electrical protection: Enhanced RF screening and built-in power surge protection
• Size: 150 x 115 x 45 mm
• Weight: 385 kg
• Operating temperature: -25°C to +55°C
• Storage temperature: -25°C to +70°C
• Supply voltage: 12V or 24V DC
