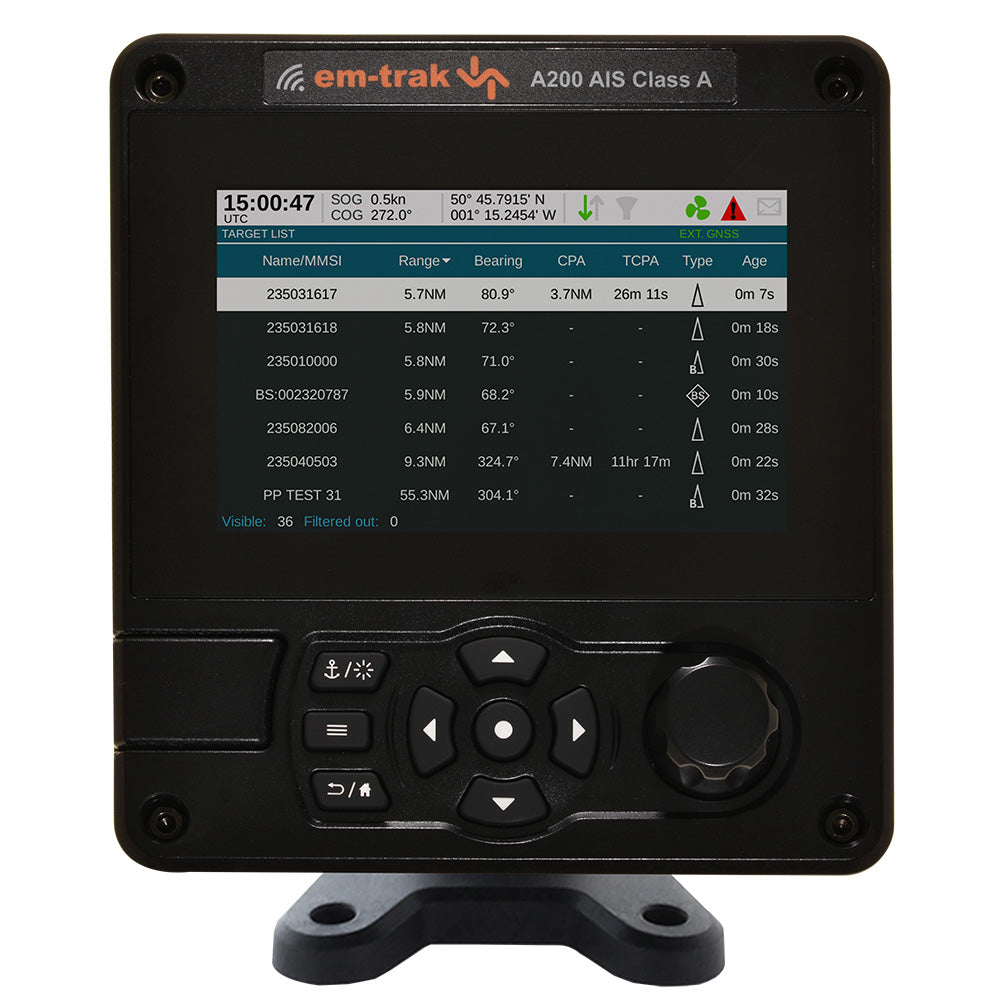

em-trak A200 Class A AIS Transceiver

The em-trak A200 is a Class A AIS transceiver for commercial vessels and demanding bridge installations. It is built for integration with ECDIS and other onboard systems, with a color display, configurable menus, AIS target tools, and connectivity options for NMEA, WiFi, and related accessories.

• Certifications: IMO SOLAS certified AIS Class A and EU Inland Waterway certified.
• Display: Integrated high-definition color display with night mode.
• AIS functions: Alerts, target filters, vessel information lists, real-time weather, CPA support, and AIS target overlay on ENC chart (C-Map).
• Controls: Ergonomic buttons and rotary knob with configurable multi-lingual menus.
• Silent mode: Stops AIS transmission while continuing to receive AIS messages.
• Durability: IPx6 and IPx7 ingress protection, with resistance to dampness, shock, vibration, and extreme temperatures.
• Size: 152 x 165 x 95mm.
• Weight: 1.1kg.
• Temperature range: Operating temperature -25°C to +55°C; storage temperature -25°C to +70°C.
• Power: 12V or 24V DC supply; 9.6V to 31.2V DC supply range.
• Current and power: 520mA average current at 12V, 6A peak current, and 6.2W average power consumption at 12V.
• Isolation: Galvanic isolation for NMEA 0183, NMEA 2000, power supply, and VHF antenna port.

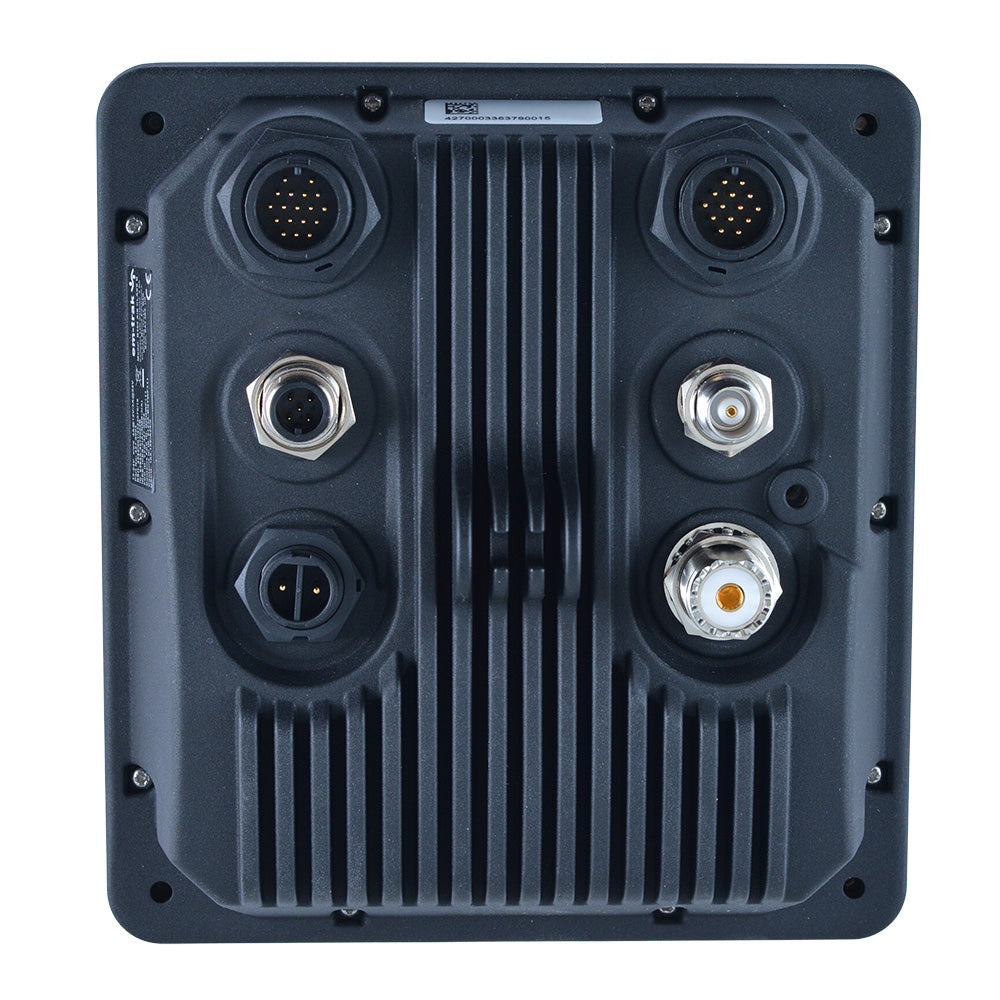

• Connectors: SO-239 VHF antenna, TNC GNSS, 2-way circular multipole power, 14-way circular multipole NMEA 0183/silent mode/blue sign, 18-way circular multipole NMEA 0183/alarm relay, and 5-way Micro-C NMEA 2000.
• Interfaces: 3 NMEA 0183 input ports, 3 NMEA 0183 bi-directional ports, NMEA 2000 Ed 3.101 LEN=1, and IEEE 802.11 a/b/g WiFi with client and access point modes.
• Accessories: Pilot plug cable and junction box accessory options.
