• Egis XD Series Triple Flex 2 Relay-ACR-Relay w/Knobs & Tinned Wires
1 1

Egis Mobile Electric

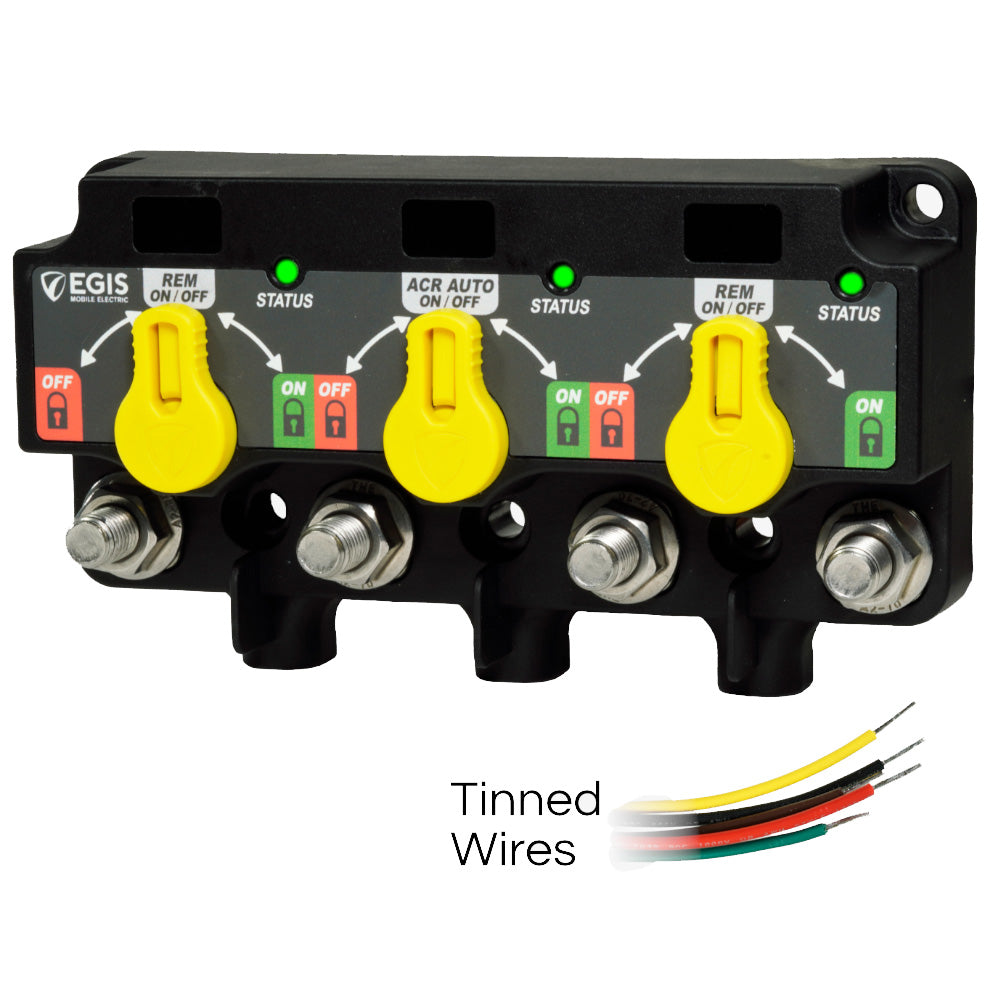

Egis XD Series Triple Flex 2 Relay-ACR-Relay w/Knobs & Tinned Wires

Egis XD Series Triple Flex 2 Relay-ACR-Relay w/Knobs & Tinned Wires

OM-EGISMOBILEEL-XDSERIESTRIPLE-87301535

$268.21
$390.60 $268.21
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Egis Mobile Electric Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

The Egis Mobile Electric XD Series Triple Flex combines two high-amp relays with a central automatic charging relay in one compact module. It is designed for multi-battery switching and charge-management layouts where installers want manual control, status visibility, and fewer separate relay components.

  • Brand: Egis Mobile Electric
  • Series: XD Series Triple Flex
  • Configuration: Relay-ACR-Relay
  • Included details: Knobs and tinned wires
  • Application: Dual battery load switching with a central automatic charging relay to share charge current
  • Application: 3-4 battery systems requiring 2 or 3 ACRs
  • Expandability: Works with link and cross-link busbars for additional dual, triple, or single XD relays
  • Sealing: IP67/IP6K9K
  • Mounting hardware fit: Large mounting holes accept 1/4-20 / M6 attachment hardware
  • Cable lug studs: Stainless steel
  • Programming: DIP switch configuration
  • Connector compatibility: DTM/ATM connector pins compatible with ML Series bi-stable relays
  • Total continuous current: 500 amps
  • Maximum cranking current: 1500 amps
  • Mechanical switching life: 1,000,000 cycles
  • Voltage range: 8-36 VDC
  • Off-state current draw: 1.3 mA
  • State change current: 5A at 12 VDC; 3A at 24 VDC
  • Status display: Front-facing LED indicator

Specifications

BrandEgis Mobile Electric
Manufacturer part #8730-1535
UPC850035199565
Boxed dimensions8 x 4 x 3 in
Shipping weight2.6 lb
Country of originUNITED STATES
