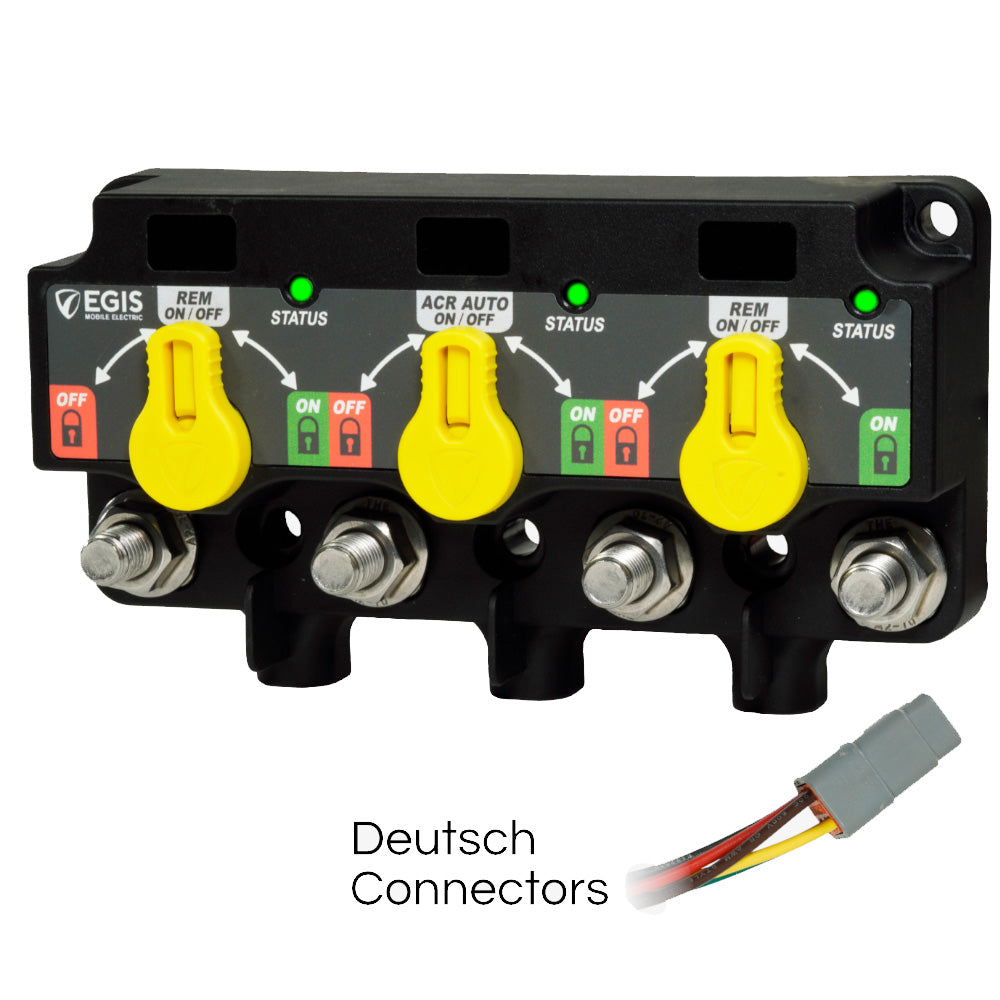

• Egis XD Series Triple Flex 2 Relay-ACR-Relay w/Knobs & 3X DTM Connector
1 1

Egis Mobile Electric

Egis XD Series Triple Flex 2 Relay-ACR-Relay w/Knobs & 3X DTM Connector

Egis XD Series Triple Flex 2 Relay-ACR-Relay w/Knobs & 3X DTM Connector

OM-EGISMOBILEEL-XDSERIESTRIPLE-88301535

$271.56
$396.70 $271.56
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Egis Mobile Electric Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

The Egis Mobile Electric XD Series Triple Flex combines two relay positions with a center ACR in one compact module. It is intended for multi-battery load switching and charge-management layouts where installers want manual knob control, DTM connections, and fewer separate high-amp relay components.

  • Configuration: Triple Flex 2 Relay-ACR-Relay with knobs and 3 DTM connectors.
  • Applications: Supports common dual-battery load switching with outer relays and a central automatic charging relay for sharing charge current.
  • Multi-battery use: Can replace multiple ACRs in 3-4 battery systems that require 2 or 3 ACRs.
  • Expansion: Compatible with link and cross-link busbars for additional dual, triple, or single XD relays.
  • Environmental sealing: Sealed to IP67/IP6K9K.
  • Hardware: Stainless steel cable lug studs and mounting holes sized for 1/4-20 / M6 attachment hardware.
  • Programming: DIP switches provide configurable relay functions for OEMs and installers.
  • Compatibility: DTM/ATM connector pins are compatible with ML Series bi-stable relays.
  • Total continuous current: 500A.
  • Maximum cranking current: 1500A.
  • Mechanical switching life: 1,000,000 cycles.
  • Voltage range: 8-36 VDC.
  • Off-state current draw: 1.3 mA.
  • State change current: 5A at 12 VDC; 3A at 24 VDC.
  • Status: LED status display.

Specifications

BrandEgis Mobile Electric
Manufacturer part #8830-1535
UPC850035199619
Boxed dimensions8 x 4 x 3 in
Shipping weight2.7 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Quick start guidePDF ↓
