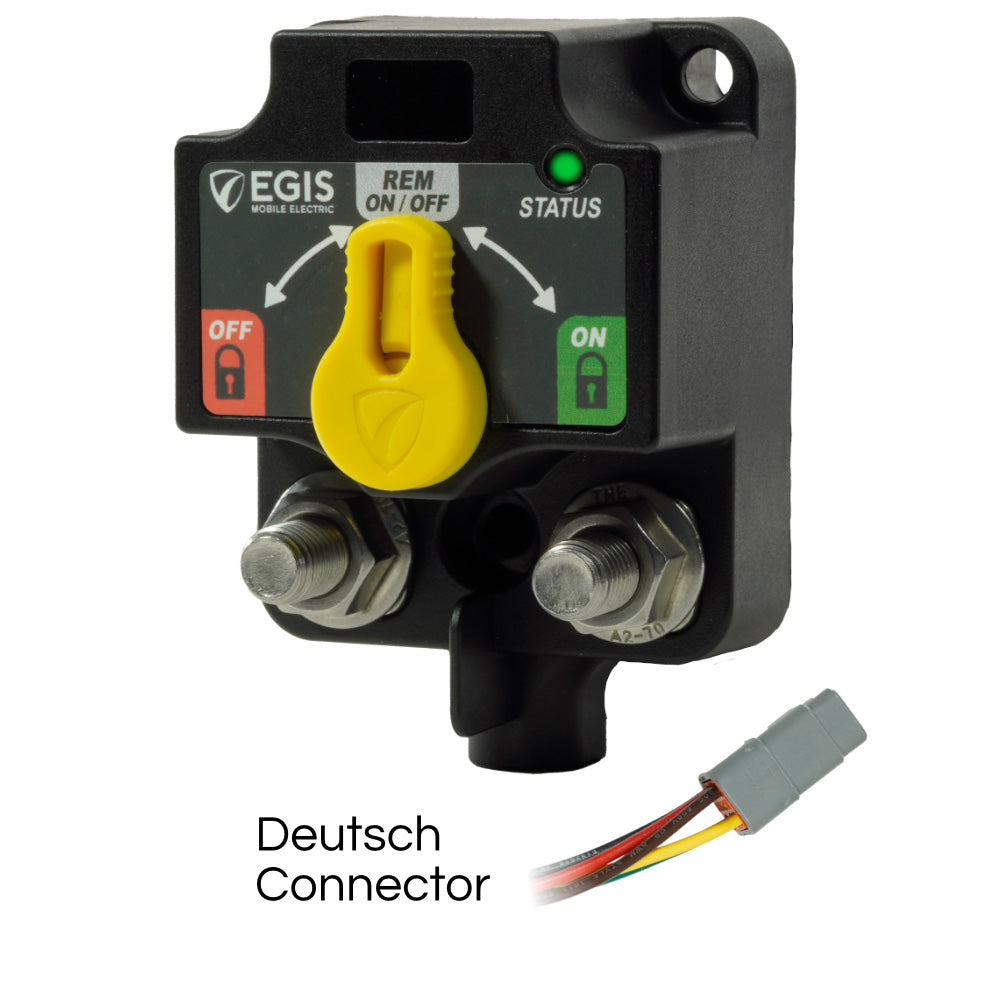

Egis XD Series Single Flex 2 Relay-ACR w/Knobs - DTM Connector

The Egis Mobile Electric XD Series Single Flex 2 Relay-ACR is built for marine and mobile electrical systems that need high-current relay control in a compact format. This version includes knobs and a DTM connector, with front-facing studs, LED status indication, and manual override control for installers managing battery and switching layouts.

• Product type: Single Flex 2 Relay-ACR
• Connector: DTM connector
• Manual control: 3-position override can force each relay open or closed and can lock the relay in either condition
• System support: Supports 2 or 3 battery systems with standard busbar interconnect accessories
• Expandability: Can connect to additional dual, triple, or single XD relays with link and cross-link busbars
• Compatibility: Wire-for-wire compatible with Blue Sea ML-solenoid and ML-remote battery switch products
• Continuous current: 500A
• Maximum cranking current: 1500A
• Voltage range: 8-36 VDC
• Off-state current draw: 1.3 mA
• State change current: 5A @ 12 VDC; 3A @ 24 VDC
• Mechanical switching life: 1,000,000 cycles
• Environmental sealing: IP67/IP6K9K
• Hardware: Stainless steel cable lug studs and self-locking flanged nuts
• Mounting: Large mounting holes accept 1/4-20 / M6 attachment hardware
• Programming: DIP switches allow relay function configuration
• Included: Protective cover and 40-circuit weatherproof label sheet with blanks for custom use
