Egis XD Series Single Flex 2 Relay-ACR - DTM Connector

Egis XD Series Single Flex 2 Relay-ACR - DTM Connector

OM-EGISMOBILEEL-XDSERIESSINGLE-88101600

$113.09
$151.60 $113.09
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Egis Mobile Electric Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

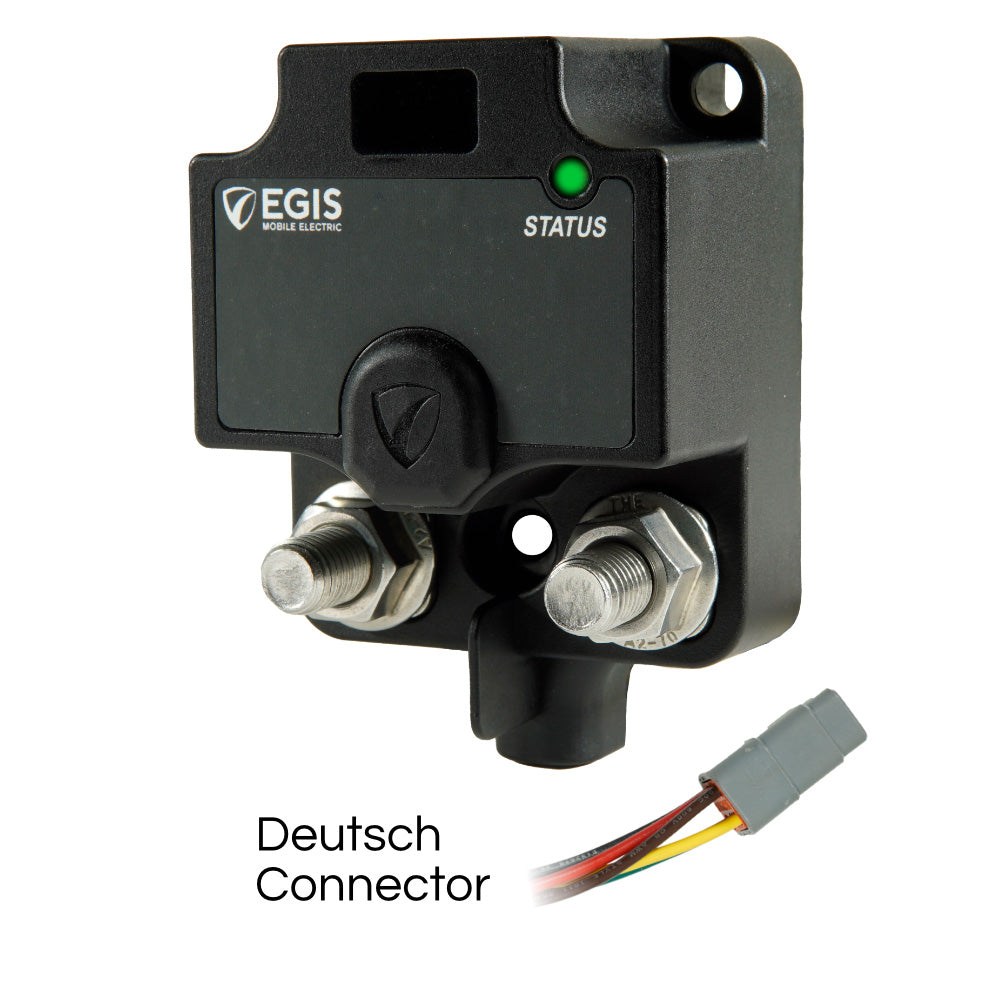

The Egis Mobile Electric XD Series Single Flex 2 Relay-ACR is a compact high-current relay for marine and mobile electrical systems. This DTM connector version supports configurable relay functions, battery system layouts, and installation with front-facing input studs.

  • Product type: Single Flex 2 Relay-ACR
  • Connector: DTM connector
  • System support: Supports 2 or 3 battery systems with standard busbar interconnect accessories
  • Expandability: Can connect to additional dual, triple, or single XD relays with link and cross-link busbars
  • Compatibility: Wire-for-wire compatible with Blue Sea ML-solenoid and ML-remote battery switch products
  • Continuous current: 500A
  • Maximum cranking current: 1500A
  • Voltage range: 8-36 VDC
  • Off-state current draw: 1.3 mA
  • State change current: 5A @ 12 VDC; 3A @ 24 VDC
  • Mechanical switching life: 1,000,000 cycles
  • Environmental sealing: IP67/IP6K9K
  • Hardware: Stainless steel cable lug studs and self-locking flanged nuts
  • Mounting: Large mounting holes accept 1/4-20 / M6 attachment hardware
  • Programming: DIP switches allow relay function configuration
  • Status indication: Front-facing LED with remote LED replication
  • Included: Protective cover and 40-circuit weatherproof label sheet with blank labels
  • Vent: Integrated Gortex vent regulates internal device pressure

Specifications

BrandEgis Mobile Electric
Manufacturer part #8810-1600
UPC850035199596
Boxed dimensions8 x 4 x 3 in
Shipping weight1.2 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Quick start guidePDF ↓
