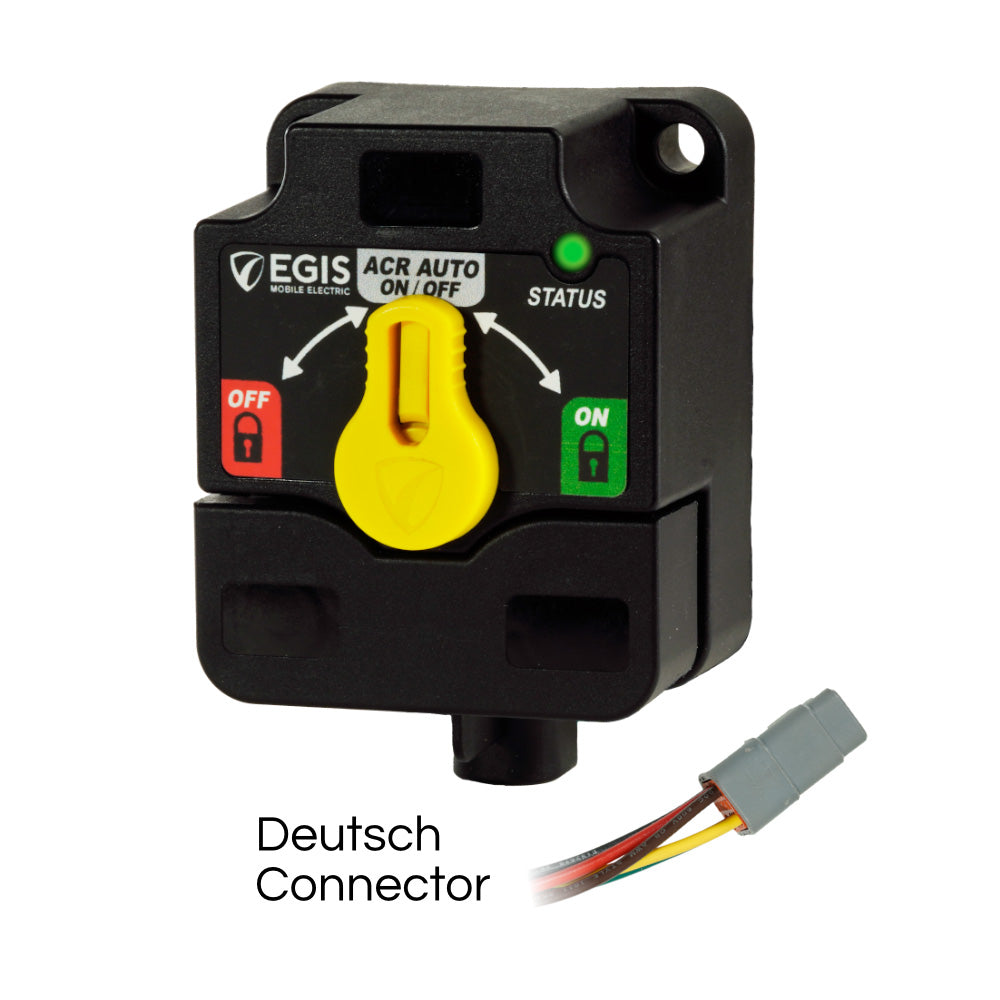

Egis XD Series Single Flex 2 ACR-Relay w/Knobs - DTM Conn

Egis XD Series Single Flex 2 ACR-Relay w/Knobs - DTM Conn

OM-EGISMOBILEEL-XDSERIESSINGLE-88101300

$137.74
$189.90 $137.74
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

The Egis Mobile Electric XD Series Single Flex 2 ACR-Relay is built for two-battery electrical systems that need automatic charging connection and isolation. This DTM connector version includes manual control knobs, LED status indication, and support for expandable XD relay layouts.

  • Product type: Single Flex 2 ACR-Relay
  • Connector: DTM
  • Total continuous current: 500 amps
  • Maximum cranking current: 1500 amps
  • Voltage range: 8 to 36 VDC
  • Mechanical switching life: 1,000,000 cycles
  • Off-state current draw: 1.3 mA
  • State change current: 5A at 12 VDC; 3A at 24 VDC
  • Environmental sealing: IP67/IP6K9K
  • Mounting hardware fit: Large mounting holes accept 1/4-20 / M6 attachment hardware
  • Terminals: Stainless steel cable lug studs
  • Manual override: 3-position control can force each relay open or closed and lock it in either condition
  • Status indication: Front-facing LED indicator with remote LED replication
  • Programming: DIP switch programmable
  • Included: 40-circuit weatherproof label sheet and protective cover

Specifications

BrandEgis Mobile Electric
Manufacturer part #8810-1300
UPC850035199831
Boxed dimensions8 x 4 x 3 in
Shipping weight1.2 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Quick start guidePDF ↓
